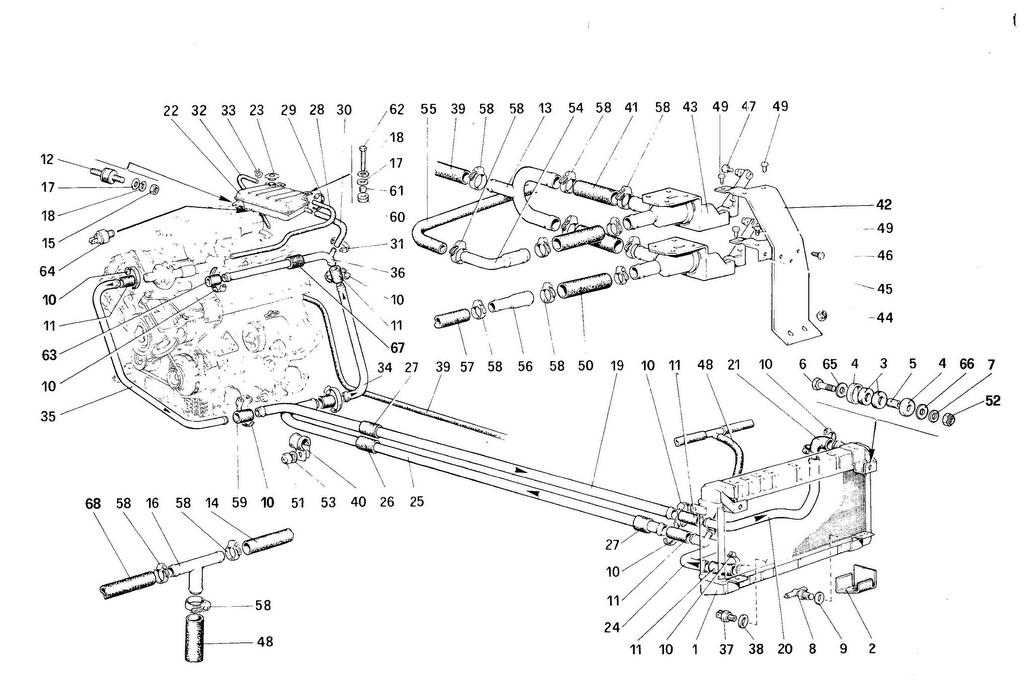

COOLING SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 116286 1 Water radiator Unavailable
2 107782 2 Rubber shim. vibration damping $67.13
3 107978 4 Pad $15.35
4 107979 4 Cup $14.90
5 107980 2 Spacer $8.20
6 16043821 2 Bolt Superseded
7 10519601 2 Washer Superseded
8 101488 1 Water drain cock $252.07
9 101496 1 Gasket Unavailable
10 12177090 18 Clamp Superseded
11 102957 6 Sleeve Superseded
12 102947 1 Vibration - damping support $20.69
13 116319 1 3-way union Unavailable
14 122225 1 Pipe. heaters to 3-way union Unavailable
15 15896211 1 IMut Superseded
16 104303 1 3-way union Unavailable
17 12643701 3 Washer Superseded
18 106850 3 Washer Superseded
19 108081 2 Central pipe delivery to radiator Unavailable
20 109369 1 Front pipe delivery to radiator Unavailable
21 102956 1 Sleeve Superseded
22 121647 1 Expansion tank Unavailable
23 101499 1 Plug for tank Superseded
24 109370 1 Return pipe. front $378.17
25 108082 1 Return pipe. central $177.64
26 107465 1 Vibration-damping sleeve Unavailable
27 105385 3 Vibration-damping sleeve $56.07
28 122218 1 Breather pipe. engine to water reservoir $49.41
29 12179490 2 Clamp Superseded
30 122221 1 Feeding pipe. expansion tank to engine Unavailable
31 12180190 2 Clamp Unavailable
32 120128 1 Breather pipe Unavailable
33 13423178 1 Strap Unavailable
34 118795 1 Rear pipe. L.H. Unavailable
35 108042 1 Rear pipe. R.H. Unavailable
36 115136 1 Pipe between heads Unavailable
37 101507 1 Temperature sensitive switch Superseded
38 101508 1 Gasket $1.66
39 106699 1 Pipe. engine to 3-way union $240.47
40 107002 1 Strap $36.52
41 116630 2 Sleeve Unavailable
42 116320 1 Bracket for upper valve $14.56
43 110066 2 Water valve for heater Unavailable
44 12574211 2 Nut Superseded
45 116321 1 Bracket for lower valve $27.22
46 110105 2 Screw Unavailable
47 110105 2 Screw Unavailable
48 109755 1 Pipe. 3-way union to return pipe $299.14
49 110105 4 Screw Unavailable
50 110277 2 Sleeve $48.01
51 12574221 1 Nut Superseded
52 16104411 2 Nut $2.33
53 12643701 1 Washer Superseded
54 116322 1 Pipe 90? $80.16
55 122224 1 Pipe to left heater Unavailable
56 116323 1 Pipe Unavailable
57 122226 1 Pipe to right heater Unavailable
58 12179590 20 Strap Superseded
59 105190 1 Sleeve $32.95
60 103549 2 Vibration-damping bushing $1.81
61 103550 2 Spacer $8.49
62 10902421 2 Screw Superseded
63 121259 1 Sleeve Superseded
64 121777 1 Bimetal thermostat $303.04
65 112761 2 Washer Superseded
66 108292 2 Washer Unavailable
67 105385 2 Sleeve $56.07
68 122225 1 Pipe. heaters to 3-way union Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
