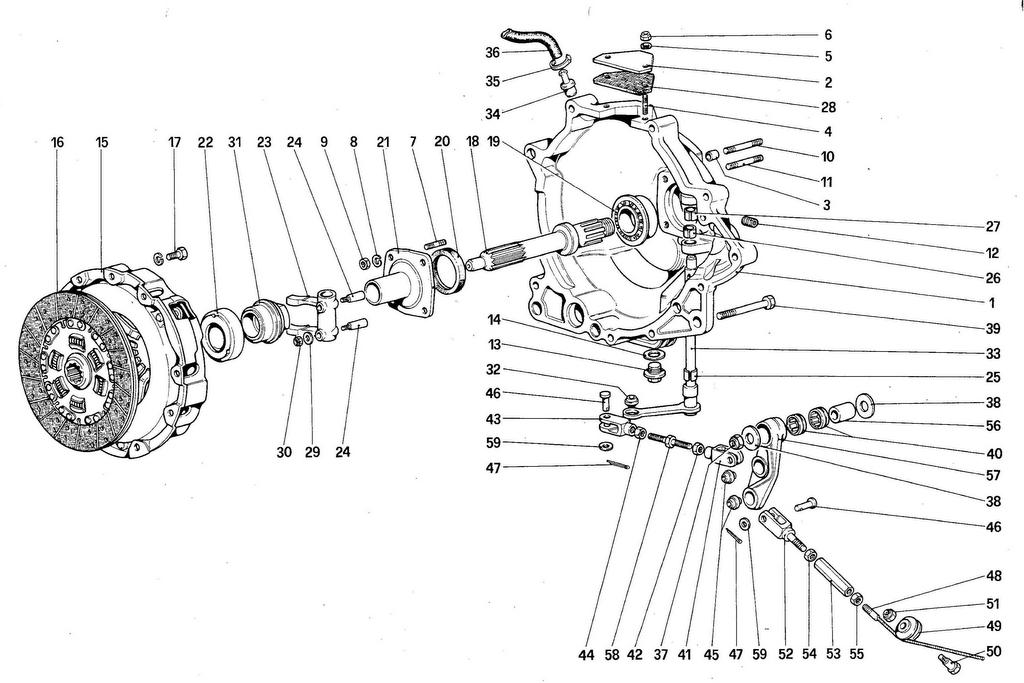

CLUTCH AND CONTROLS

CLUTCH AND CONTROLS

Location Part # Quantity* Description Price Add To Cart
- 116801 1 Clutch housing. complete Superseded
1 116377 1 Clutch housing with assembly no. 116801 Unavailable
2 109404 1 Inspection cover Unavailable
3 102704 2 Centering dowel $3.69
4 13539021 2 Stud Superseded
5 12601171 2 Washer Superseded
6 15896411 2 Nut Superseded
7 13516521 4 Stud Unavailable
8 106852 4 Washer Superseded
9 16102311 4 Nut Superseded
10 13517621 2 Stud Superseded
11 13517521 8 Stud Unavailable
12 14326150 1 Cap Unavailable
13 14326540 1 Oil drain plug Unavailable
14 10279560 1 Gasket Superseded
- 121478 1 Clutch 9" 1/2 (not for spare) Unavailable
15 121562 1 Pressure plate Superseded
16 120482 1 Clutch disc Superseded
17 13825821 6 Bolt Superseded
18 109400 1 Clutch shaft $1,568.91
19 103042 1 Bearing $385.66
20 110314 1 Oil retainer Superseded
21 105136 1 Flange with sleeve Unavailable
22 100849 1 Thrust bearing Unavailable
23 108428 1 Clutch control lever With assembly no. 116327 Superseded
24 108429 2 Pin $76.82
25 103226 1 Outer bushing $10.64
26 103227 1 Inner bushing Unavailable
27 106500 1 Inner bushing Unavailable
28 109405 1 Gasket for cover $16.36
29 108430 2 Washer $7.96
30 12574121 2 Nut Superseded
31 116326 1 Bushing for bearing Unavailable
32 100860 1 Ball joint $114.55
33 116327 1 Lever and control shaft $536.35
34 115463 1 Union for breather pipe $15.10
35 12179090 1 Strap Superseded
36 115366 1 Breather pipe Unavailable
37 16105121 1 Nut Superseded
38 108939 2 Spacer for lever $26.76
39 15541121 1 Screw $0.97
40 103223 2 Roller cage $77.22
41 100855 1 Fork. L.H. thread $81.52
42 100862 1 Nut. L.H. thread $8.97
43 103238 1 Fork $43.18
44 100861 2 Lock nut Unavailable
45 100860 2 Ball joint $114.55
46 103218 3 Pin $29.23
47 10734201 3 Split pin Unavailable
48 106745 1 Clutch control cable $78.46
49 105665 1 Sheave Superseded
50 10902621 1 Bolt Superseded
51 12575411 1 Nut Superseded
52 106579 1 Fork Unavailable
53 10091011 1 Adjusting sleeve Superseded
54 10725911 1 Lock nut Superseded
55 10727311 1 Lock nut (L.H. thread) $1.81
56 107437 1 Bushing for lever $68.78
57 116472 1 Clutch control lever $1,044.52
58 116329 1 Tie rod $65.06
59 12639701 3 Washer Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
