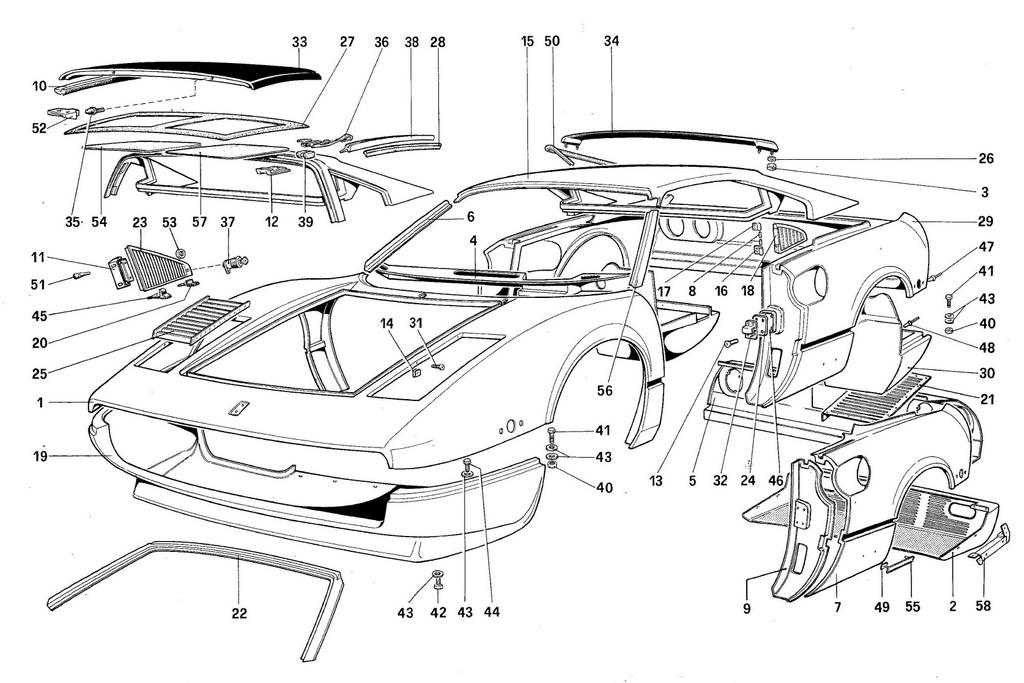

BODY SHELL – OUTER ELEMENTS

Go to Split View

BODY SHELL – OUTER ELEMENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61159500 *Qty: 1 Front covering Superseded
Location: 2 Prev | Next Part: 60705000 *Qty: 1 Shield for muffler Unavailable
Location: 3 Prev | Next Part: 12574211 *Qty: 4 Nut Superseded
Location: 4 Prev | Next Part: 61013800 *Qty: 1 Panel. under instrument board $121.70
Location: 5 Prev | Next Part: 61159700 *Qty: 1 Covering. number plate seat Superseded
Location: 6 Prev | Next Part: 61141100 *Qty: 1 Covering for R.H. post GTB Superseded
Location: 7 Prev | Next Part: 60585700 *Qty: 1 Covering for R.H. post GTB Superseded
Location: - Prev | Next Part: 60585900 *Qty: 1 Rear fender R.H. GTS Superseded
Location: - Prev | Next Part: 60585800 *Qty: 1 Rear fender R.H. GTB Superseded
Location: - Prev | Next Part: 60586000 *Qty: 1 Rear fender R.H. GTS Unavailable
Location: 8 Prev | Next Part: 60042103 *Qty: 2 Hinge pin GTB Unavailable
Location: 9 Prev | Next Part: 60216801 *Qty: 1 R.H. pillar for fender $153.36
Location: - Prev | Next Part: 60216900 *Qty: 1 L.H. pillar for fender $153.36
Location: 10 Prev | Next Part: 60398104 *Qty: 2 Gasket GTS Unavailable
Location: 11 Prev | Next Part: 60325305 *Qty: 2 Grill hinge GTS $159.02
Location: 12 Prev | Next Part: 60500500 *Qty: 2 Rear bracket roof GTS Unavailable
Location: 13 Prev | Next Part: 20287504 *Qty: 8 Screw $2.69
Location: 14 Prev | Next Part: 60679600 *Qty: 8 Strap $1.07
Location: 15 Prev | Next Part: 60214806 *Qty: 1 Roof covering GTB $6,956.23
Location: 16 Prev | Next Part: 60040706 *Qty: 1 Lower hinge GTB Unavailable
Location: 17 Prev | Next Part: 60040805 *Qty: 1 Upper hinge GTB $42.96
Location: 18 Prev | Next Part: 60370004 *Qty: 1 R.H. grill GTB $267.47
Location: - Prev | Next Part: 60337409 *Qty: 1 L.H. grill GTB Unavailable
Location: 19 Prev | Next Part: 61183000 *Qty: 1 Covering front lower Unavailable
Location: - Prev | Next Part: 61182900 *Qty: 1 Rubber covering front lower Unavailable
Location: 20 Prev | Next Part: 20106001 *Qty: 2 Rubber piece grill GTS Unavailable
Location: 21 Prev | Next Part: 60705300 *Qty: 1 Grill under body R.H. $253.99
Location: - Prev | Next Part: 60705400 *Qty: 1 Grill under body L.H. $253.99
Location: 22 Prev | Next Part: 60872700 *Qty: 1 Framework windscreen GTS Unavailable
Location: 23 Prev | Next Part: 60336203 *Qty: 1 R.H. grill GTS $390.20
Location: - Prev | Next Part: 60336302 *Qty: 1 L.H. grill GTS Unavailable
Location: 24 Prev | Next Part: 60163003 *Qty: 2 Spacer $9.78
Location: 25 Prev | Next Part: 61082400 *Qty: 1 Headlamp grill R.H. Unavailable
Location: - Prev | Next Part: 61082500 *Qty: 1 Headlamp grill L.H. Unavailable
Location: 26 Prev | Next Part: 12643701 *Qty: 4 Washer Superseded
Location: 27 Prev | Next Part: 61203000 *Qty: 1 Roof covering GTS $306.78
Location: 28 Prev | Next Part: 6060850G *Qty: 2 Gasket GTS Unavailable
Location: 29 Prev | Next Part: 61421800 *Qty: 1 Rear covering GTB $7,317.66
Location: - Prev | Next Part: 61422300 *Qty: 1 Rear covering GTS $5,981.51
Location: 30 Prev | Next Part: 61422000 *Qty: 1 Rear covering R.H. (With part n. 59) $1,112.86
Location: - Prev | Next Part: 60716700 *Qty: 1 Rear covering L.H. (With part n. 58) $1,438.05
Location: 31 Prev | Next Part: 60644100 *Qty: 8 Screw $1.69
Location: 32 Prev | Next Part: 20019105 *Qty: 1 Lock striker R.H. $111.80
Location: - Prev | Next Part: 20019204 *Qty: 1 Lock striker L.H. Unavailable
Location: 33 Prev | Next Part: 61128700 *Qty: 1 Sun roof GTS $6,317.69
Location: 34 Prev | Next Part: 61024700 *Qty: 1 Spoyler GTB $1,137.40
Location: - Prev | Next Part: 61290200 *Qty: 1 Spoyler GTS $1,185.82
Location: 35 Prev | Next Part: 60189008 *Qty: 2 Fixing pin front roof GTS $43.60
Location: 36 Prev | Next Part: 60421500 *Qty: 2 Handle roof GTS $584.13
Location: 37 Prev | Next Part: 60075009 *Qty: 2 Block grill GTS Unavailable
Location: 38 Prev | Next Part: 60608300 *Qty: 1 Gutter R.H. GTS $211.53
Location: - Prev | Next Part: 60608400 *Qty: 1 Gutter L.H. GTS $208.84
Location: 39 Prev | Next Part: 60395506 *Qty: 2 Handle protection GTS $9.40
Location: 40 Prev | Next Part: 12574121 *Qty: 22 Nut Superseded
Location: 41 Prev | Next Part: 10977721 *Qty: 18 Screw Superseded
Location: 42 Prev | Next Part: 13903801 *Qty: 6 Screw for covering Unavailable
Location: - Prev | Next Part: 15645501 *Qty: 6 Screw for big covering Unavailable
Location: 43 Prev | Next Part: 12638101 *Qty: 49 Washer Superseded
Location: 44 Prev | Next Part: 10978021 *Qty: 4 Screw $2.07
Location: 45 Prev | Next Part: 60551400 *Qty: 2 Grommet GTS $49.95
Location: 46 Prev | Next Part: 60602400 *Qty: 2 Striker gasket $51.51
Location: 47 Prev | Next Part: 60159001 *Qty: 20 Rivet $1.10
Location: 48 Prev | Next Part: 60225901 *Qty: 30 Rivet $1.08
Location: 49 Prev | Next Part: 60324506 *Qty: 2 Strap Superseded
Location: 50 Prev | Next Part: 60528300 *Qty: 2 Gasket $12.54
Location: 51 Prev | Next Part: 60892600 *Qty: 4 Grommet GTS $13.44
Location: 52 Prev | Next Part: 60336807 *Qty: 2 Front brckaet roof GTS $63.07
Location: 53 Prev | Next Part: 60066404 *Qty: 2 Ring nut grill GTS $48.62
Location: 54 Prev | Next Part: 61202800 *Qty: 1 Covering R.H. roof GTS $148.72
Location: 55 Prev | Next Part: 20043105 *Qty: 1 Ornament "Disegno Pininfarina" $97.59
Location: 56 Prev | Next Part: 61141200 *Qty: 1 Covering for L.H. post GTB $216.21
Location: 57 Prev | Next Part: 61202900 *Qty: 1 Covering L.H. roof GTS Unavailable
Location: 58 Prev | Next Part: 60715500 *Qty: 1 R.H. angle fixing grill $55.72
Location: - Prev | Next Part: 60715600 *Qty: 1 L.H. angle fixing grill $55.72

* Quantity shown indicates the number of pieces used in the diagram.
