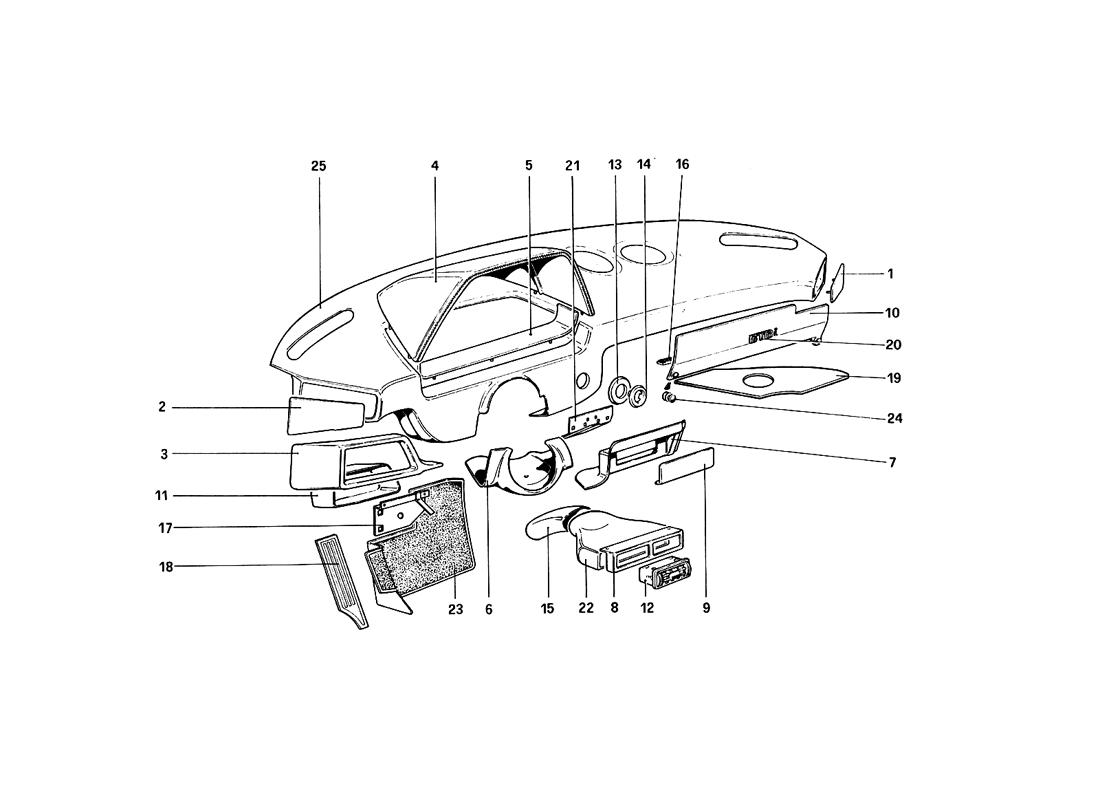

INSTRUMENT PANEL

Go to Split View

INSTRUMENT PANEL

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60069408 *Qty: 1 RH moulding with covering $111.43
Location: 2 Prev | Next Part: 60069507 *Qty: 1 LH moulding with covering $112.16
Location: 3 Prev | Next Part: 60806800 *Qty: 1 Moulding with covering
RHD
$317.80
Location: 3 Prev | Next Part: 60752300 *Qty: 1 Moulding with covering
LHD
$338.66
Location: 3 Prev | Next Part: 60807000 *Qty: 1 Covering
RHD
$10.80
Location: 4 Prev | Next Part: 60066909 *Qty: 1 Dashboard visor with covering $505.67
Location: 4 Prev | Next Part: 60066800 *Qty: 1 Covering $152.91
Location: 5 Prev | Next Part: 60069804 *Qty: 1 Moulding with covering $182.63
Location: 6 Prev | Next Part: 60092103 *Qty: 1 Cover for steering column with covering $223.81
Location: 7 Prev | Next Part: 60068707 *Qty: 1 Radio board with covering
LHD - Up to car no. 52187
$495.70
Location: 7 Prev | Next Part: 61679900 *Qty: 1 Radio board with covering
RHD - From car no 52189
$371.76
Location: 7 Prev | Next Part: 61678200 *Qty: 1 Radio board with covering
LHD - From car no 52189
$403.68
Location: 7 Prev | Next Part: 60194909 *Qty: 1 Radio board with covering
RHD - Up to car no. 52187
$393.86
Location: 8 Prev | Next Part: 60375409 *Qty: 1 Conveyor A.C.
RHD
Superseded
Location: 8 Prev | Next Part: 60375409 *Qty: 1 Conveyor A.C.
LHD - up to 30.04.84
Superseded
Location: 8 Prev | Next Part: 61679000 *Qty: 1 Conveyor A.C.
LHD - From 01.05.84
$173.03
Location: 9 Prev | Next Part: 60146206 *Qty: 1 Radio board with covering Unavailable
Location: 10 Prev | Next Part: 61679700 *Qty: 1 Lid GTS
From 01.05.84 - LHD
$278.53
Location: 10 Prev | Next Part: 60807200 *Qty: 1 Outside Covering
RHD
$51.06
Location: 10 Prev | Next Part: 61150500 *Qty: 1 Lid with covering
RHD
$258.88
Location: 10 Prev | Next Part: 61136000 *Qty: 1 Lid GTS
Up to 30.04.84 - LHD
$252.77
Location: 10 Prev | Next Part: 61133700 *Qty: 1 Lid GTB
Up to 30.04.84 - LHD
$196.59
Location: 10 Prev | Next Part: 61678300 *Qty: 1 Lid GTB
From 01.05.84 - LHD
$256.44
Location: 10 Prev | Next Part: 60078706 *Qty: 1 Outside Covering
LHD
$73.14
Location: 10 Prev | Next Part: 61152000 *Qty: 1 Lid with covering
RHD
$218.90
Location: 11 Prev | Next Part: 60752500 *Qty: 1 Glove box with covering
LHD
Unavailable
Location: 11 Prev | Next Part: 60806900 *Qty: 1 Glove box with covering
RHD
$267.47
Location: 12 Prev | Next Part: 60124302 *Qty: 2 Air outlet A.C $92.50
Location: 13 Prev | Next Part: 60164101 *Qty: 1 Ring Nut Superseded
Location: 14 Prev | Next Part: 60164001 *Qty: 1 Moulding for ignition key opening Unavailable
Location: 15 Prev | Next Part: 60133204 *Qty: 1 A.C. duct Unavailable
Location: 16 Prev | Next Part: 50101708 *Qty: 4 Securing block
Up to 30.04.84
Unavailable
Location: 17 Prev | Next Part: 61179400 *Qty: 1 Support for blocks
RHD
$38.31
Location: 17 Prev | Next Part: 61106700 *Qty: 1 Support for blocks
LHD
$25.28
Location: 18 Prev | Next Part: 61352500 *Qty: 1 Toeboard
Valid for GTB
$152.91
Location: 18 Prev | Next Part: 61361400 *Qty: 1 Toeboard
Valid for GTS
Unavailable
Location: 19 Prev | Next Part: 60143609 *Qty: 1 RH Carpet Unavailable
Location: 19 Prev | Next Part: 60143708 *Qty: 1 LH Carpet Unavailable
Location: 20 Prev | Next Part: 61136500 *Qty: 1 GTS mask $51.32
Location: 20 Prev | Next Part: 61133300 *Qty: 1 GTB mask $57.18
Location: 21 Prev | Next Part: 60196508 *Qty: 1 Support for blocks
RHD
$19.67
Location: 21 Prev | Next Part: 60094109 *Qty: 1 Support for blocks
LHD
$20.88
Location: 22 Prev | Next Part: 60375201 *Qty: 1 AC Conveyor
LHD
Unavailable
Location: 22 Prev | Next Part: 60375300 *Qty: 1 AC Conveyor
RHD
Unavailable
Location: 23 Prev | Next Part: 61352400 *Qty: 1 Carpet under pedals
GTB - LHD
$57.68
Location: 23 Prev | Next Part: 61361300 *Qty: 1 Carpet under pedals
GTS - LHD
$61.13
Location: 23 Prev | Next Part: 61365200 *Qty: 1 Carpet under pedals
GTB - RHD
Unavailable
Location: 23 Prev | Next Part: 61365700 *Qty: 1 Carpet under pedals
GTS - RHD
Unavailable
Location: 24 Prev | Next Part: 60727200 *Qty: 2 Knob fixing lid
From 01.05.84
Superseded
Location: 25 Prev | Next Part: 60194107 *Qty: 1 Panel with covering
RHD - Up to 30.09.83
$2,203.67
Location: 25 Prev | Next Part: 60194404 *Qty: 1 Covering
RHD
$104.57
Location: 25 Prev | Next Part: 61796400 *Qty: 1 Panel with covering
LHD - From 01.02.85
$2,741.06
Location: 25 Prev | Next Part: 61678100 *Qty: 1 Panel with covering
LHD - From 01.05.84
Unavailable
Location: 25 Prev | Next Part: 61271000 *Qty: 1 Panel with covering
RHD - From 01.10.83
$1,954.58
Location: 25 Prev | Next Part: 61270400 *Qty: 1 Panel with covering
LHD - From 01.07.83
$4,029.37
Location: 25 Prev | Next Part: 60303500 *Qty: 1 Panel with covering
LHD - up to 30.06.83
Unavailable
Location: 25 Prev | Next Part: 61796600 *Qty: 1 Panel with covering
RHD - From 01.02.85
$3,311.61
Location: 25 Prev | Next Part: 60068806 *Qty: 1 Covering
LHD
Unavailable
Location: 52 Prev | Next Part: 60998900 *Qty: 1 Complete moulding for windshield $301.34

* Quantity shown indicates the number of pieces used in the diagram.
