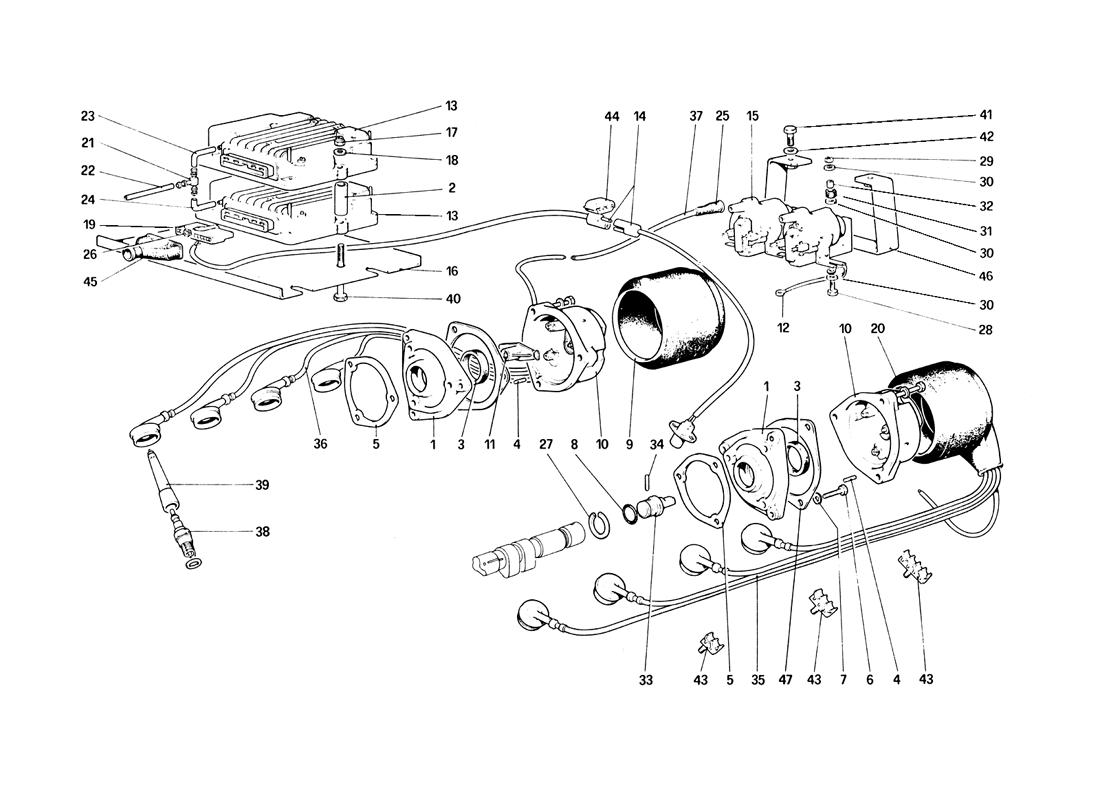

ENGINE IGNITION

ENGINE IGNITION

Location Part # Quantity* Description Price Add To Cart
- HT021 1 Complete HT Leads Set Unavailable
1 119399 1 Cap distributor support $355.13
3 117293 2 Sealing ring $24.83
4 10331111 2 Dowel Unavailable
5 117261 2 Gasket Superseded
6 10902321 2 Screw Superseded
7 11197771 2 Washer Superseded
8 109478 2 Sealing ring $6.01
9 112043 1 R.H. distributor boot Unavailable
10 115518 2 Distributor cap Unavailable
11 124288 2 Rotor arm $62.95
12 115648 1 Copper braid for ignition coil earth $7.51
13 118451 2 Electronic ignition module
For CH use no. 113961
$1,700.00
14 119052 3 Electromagnetic sensor
To engine no. 863 use no. 115019
$214.39
15 115013 2 Coils Unavailable
16 117555 1 Plate $157.71
17 12574211 6 Nut Superseded
18 12601271 6 Washer Superseded
19 115598 2 1 1 way block $34.23
20 110626 1 L.H. distributor boot Unavailable
21 107440 1 3 way union $4.59
22 115665 1 Tube from 3 way union to air delivery body $39.40
23 115866 1 Rubber hose Unavailable
23 117934 2 Coupling Unavailable
24 115149 1 Rubber hose $38.14
25 12056986 2 Boot Unavailable
26 60909700 2 Small clip of security Unavailable
27 119484 2 Centrifuger ring Unavailable
28 10302621 3 Screw Unavailable
29 12575411 3 Nut Superseded
30 12643701 9 Washer Superseded
31 103549 2 Bush, vibration damping $1.50
32 103550 3 Spacer $6.82
34 13899970 2 Pin $0.90
35 118826 1 Cables, left spark plugs Superseded
36 118827 1 Cables, right spark plugs Superseded
37 119356 2 Cable, distributor - coil $56.81
38 119492 8 Spark plug
CHAMPION NB GY
Superseded
38 117599 8 Spark plug
BOSCH W 6 DS (In alternative)
Superseded
39 115647 8 Extension $23.08
40 11032321 3 Bolt Unavailable
41 16043121 2 Bolt Unavailable
42 10615671 2 Washer Unavailable
43 119402 4 Small clip for cables support
Up to exhaustion
$3.76
43 119403 2 Small clip for cables support
Up to exhaustion
$9.22
43 121790 2 Small clip for cables support
On exhaustion no. 119404
$11.57
43 121789 2 Small clip for cables support
On exhaustion no. 119403
Unavailable
43 121788 5 Small clip for cables support
On exhaustion no. 119402
$15.37
43 119404 2 Small clip for cables support
Up to exhaustion
$4.89
44 117429 1 Cover (red) for sensor
P.M. 5 - 8
$1.52
44 117430 1 Cover (white) for sensor
P.M. 1-4
$10.88
45 115550 2 Protection cover for small block Unavailable
46 115646 1 Backet for coil $43.81
47 119409 2 Gasket $6.84

* Quantity shown indicates the number of pieces used in the diagram.
