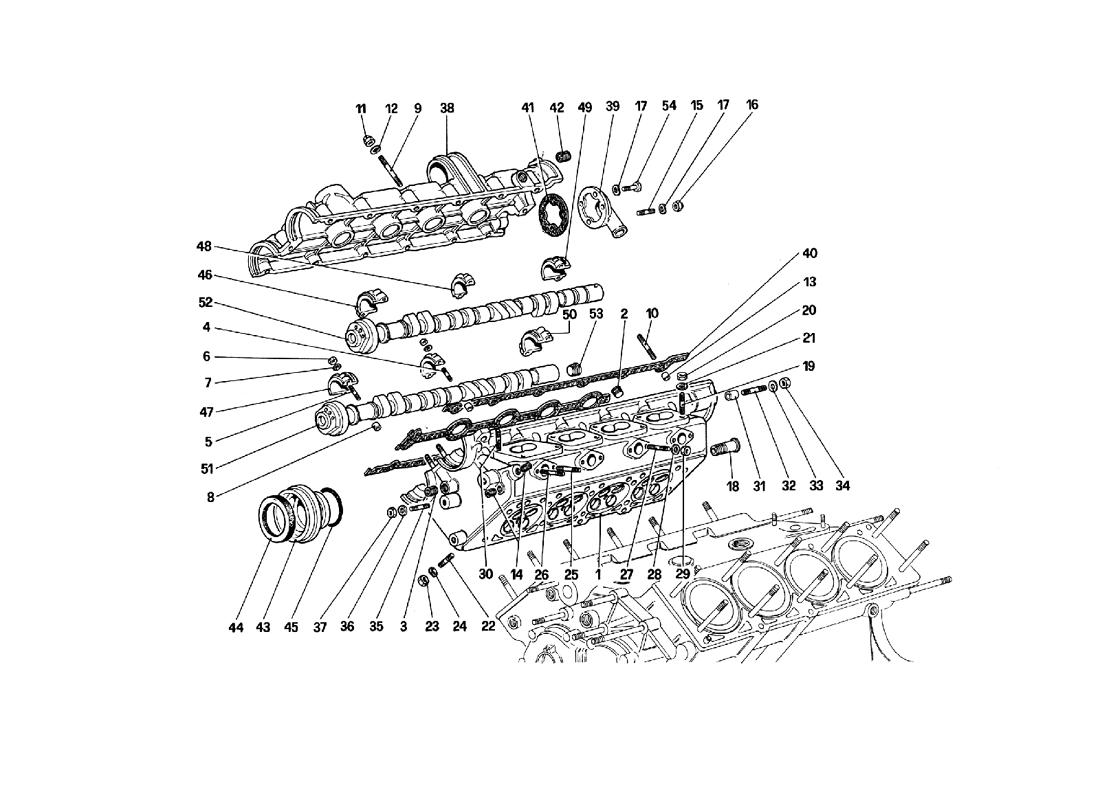

CYLINDER HEAD (RIGHT)

CYLINDER HEAD (RIGHT)

Location Part # Quantity* Description Price Add To Cart
- 111917 1 Right cylinder head complete $6,488.41
1 117749 1 Right cylinder head
With assembly no.111917
Unavailable
2 127635 5 Plug $4.16
3 13526070 1 Heli - coil Unavailable
4 102735 12 Stud for intermediate caps Unavailable
5 102754 8 Stud for outer caps $8.63
6 15896211 20 Nut Superseded
7 11197773 20 Washer Superseded
8 102725 20 Dowel $1.36
9 13541621 12 Stud Superseded
10 13541721 2 Stud Superseded
11 100044 14 Selflocking nut $0.90
12 11197771 14 Washer Superseded
13 102725 2 Dowel $1.36
14 14326610 3 Plug Unavailable
15 11500521 2 Stud $3.19
16 12575411 2 Nut Superseded
17 12601271 4 Washer Superseded
18 106227 1 Nipple for heater $7.77
19 13543321 8 Stud Superseded
20 16100811 10 Nut
In alternative no.124525
Superseded
21 11198071 10 Washer
For part no. 105938
Superseded
22 12354521 8 Stud
Securing exhaust manifold
Superseded
23 105938 8 Nut Superseded
24 10516671 8 Washer Superseded
25 13541621 3 Short stud Superseded
26 13541721 4 Long stud Superseded
27 13541821 1 Stud for water manifold Unavailable
28 11197773 8 Washer Superseded
29 15896211 8 Nut Superseded
30 13543521 2 Stud for fixing suction manifold (front part) Superseded
31 102725 2 Dowel $1.36
32 11500521 2 Stud for fixing calotte support $3.19
33 11197773 2 Washer Superseded
34 15896211 2 Nut Superseded
35 13543321 3 Stud Superseded
36 12601371 3 Washer Superseded
37 16104411 3 Nut $0.90
38 111564 1 Head cover, complete
With complete cylinder
Unavailable
38 117220 1 Right head cover
With complete cover
Unavailable
39 103808 1 End cover with blow - by inlet $164.55
40 117263 1 Gasket Superseded
41 103809 1 Gasket
On exhaustion no. 119067
Superseded
42 13525470 3 Heli - coil Unavailable
43 117257 1 Front cover Superseded
44 105389 2 Sealing ring Superseded
45 117275 2 Sealing ring $8.38
46 117039 1 Front cap inlet side Unavailable
47 117040 1 Front cap exhaustion side
With complete cylinder head
Unavailable
48 117043 6 Intermediate cap
With complete cylinder head
Unavailable
49 117044 1 Rear cap inlet side
With complete cylinder head
$121.21
50 117045 1 Rear cap exhaust side
With complete cylinder head
$342.34
51 117125 1 Right exhaust camshaft
With assembly no.117235
Unavailable
51 117235 1 Right exhaust camshaft, complete $2,149.04
52 117932 1 Right intake camshaft
With assembly no. 117933
Superseded
52 117933 1 Right intake camshaft, complete $2,025.49
53 10269750 1 Plug $1.93
54 10902221 2 Screw Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
