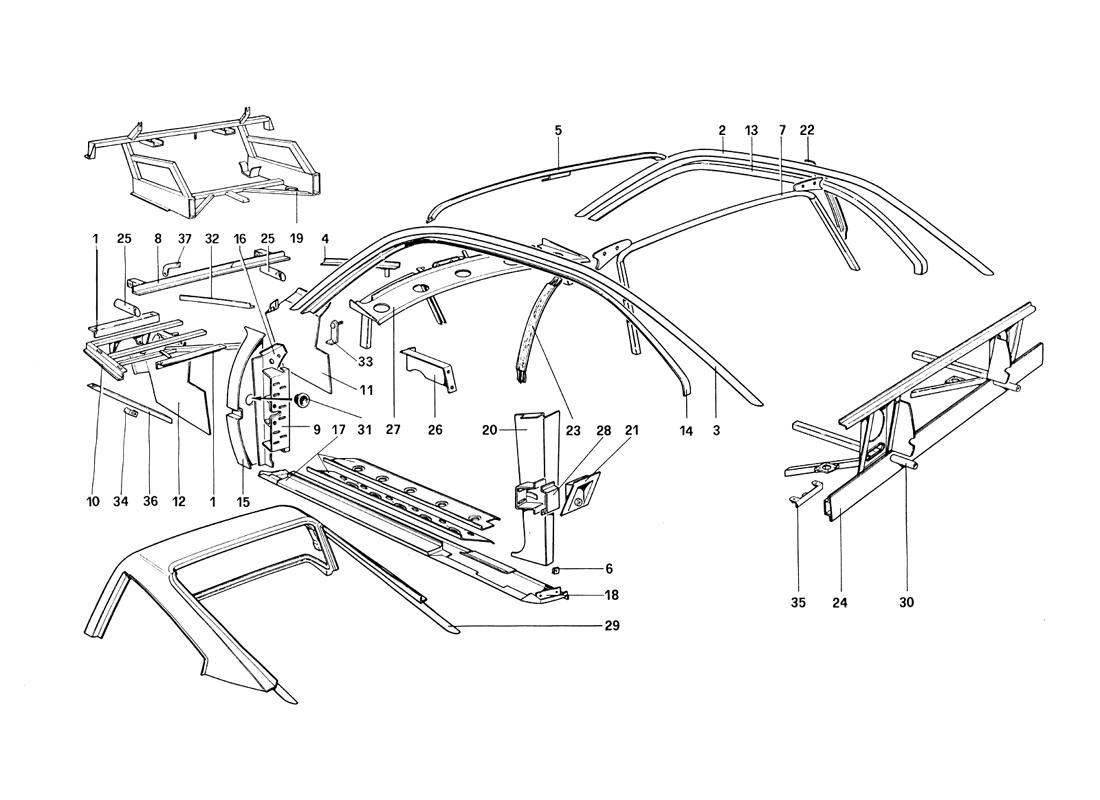

BODY SHELL - INNER ELEMENTS

Location Part # Quantity* Description Price Add To Cart
- 61010500 1 Roof frame assembly GTB Unavailable
1 60652200 4 Bracket for headlamps $54.00
3 61010100 1 L.H. rail GTB Superseded
4 60350006 1 R.H. stiffening front bonnet LHD $42.41
4 60350204 1 R.H. stiffening front bonnet RHD $26.43
5 60371309 1 Front rib for roof GTB $305.31
6 60361801 4 Clip Unavailable
7 60296001 1 Rear rib for roof $170.01
8 60301504 1 Front stiffening front bonnet $234.85
9 60285202 2 Post fixing hinge $154.87
10 60651900 1 L.H. front frame $296.28
10 60651800 1 R.H. front frame $254.05
11 61181900 1 R.H. shield panel radiator LHD $83.25
11 61182100 1 R.H. shield panel radiator RHD $90.38
12 60348802 1 R.H. shield panel radiator RHD $54.02
12 60304201 1 L.H. shield panel radiator LHD $67.90
13 60260106 1 Sheet R.H. rail GTB $190.23
14 60260007 1 Sheet L.H. rail GTB $190.56
15 60252400 1 Hinge post R.H. door $63.68
15 60252509 1 Hinge post L.H. door Unavailable
16 61009900 1 Sheet for L.H. pillar GTB Superseded
16 60397106 1 Sheet for R.H. pillar GTS $52.29
16 60397205 1 Sheet for L.H. pillar GTS $52.29
16 61009800 1 Sheet for R.H. pillar GTB Superseded
17 60303302 1 Covering, L.H. door sill GTB $261.97
17 60303203 1 Covering, R.H. door sill GTB $624.52
17 60419504 1 Covering, R.H. door sill GTS Unavailable
17 60419603 1 Covering, L.H. door sill GTS Unavailable
18 60003902 1 Outer covering, L.H. door sill $462.49
18 60003803 1 Outer covering, R.H. door sill Unavailable
19 95406068 1 Front frame $1,986.13
20 60421203 1 R.H. panel GTS $121.31
20 60302403 1 R.H. panel GTB $192.63
20 60421302 1 L.H. panel GTS $100.57
20 60302304 1 L.H. panel GTB $183.45
21 60347705 2 Support $46.32
22 60260403 1 R.H. post complete GTB Unavailable
23 60260502 1 L.H. post complete GTB Unavailable
24 61194500 1 Rear frame (with bracket 30) RHD $1,090.90
24 61192500 1 Rear frame (with bracket 30) LHD $1,263.27
25 50118908 2 Bracket for front bumber Unavailable
26 60193109 1 Support RHD Unavailable
26 60106903 1 Support LHD $40.95
27 60351003 1 Stiffening, under windshield LHD Unavailable
27 60351103 1 Stiffening, under windshield RHD $400.58
28 60302601 2 Rear bracket for support lock striker $14.56
29 61128800 1 Roof assembly GTS $12,673.58
30 60064508 2 Bracket for rear bumper $74.87
31 60284304 2 Plug $10.31
32 60350402 1 L.H. stiffening front bonnet RHD $88.65
32 60397908 1 L.H. stiffening front bonnet LHD $28.14
33 61181300 1 Horns support - CH excluded $10.01
33 61189000 1 Horns support - CH only $27.89
34 60289303 2 Support front wheelhouse $10.01
35 61176200 1 Bracket fixing plate for module $18.76
36 60064201 2 Front support frame $33.23
37 61181400 2 Bracket fixing grill $6.86

* Quantity shown indicates the number of pieces used in the diagram.
