AIR CONDITIONING SYSTEM

AIR CONDITIONING SYSTEM

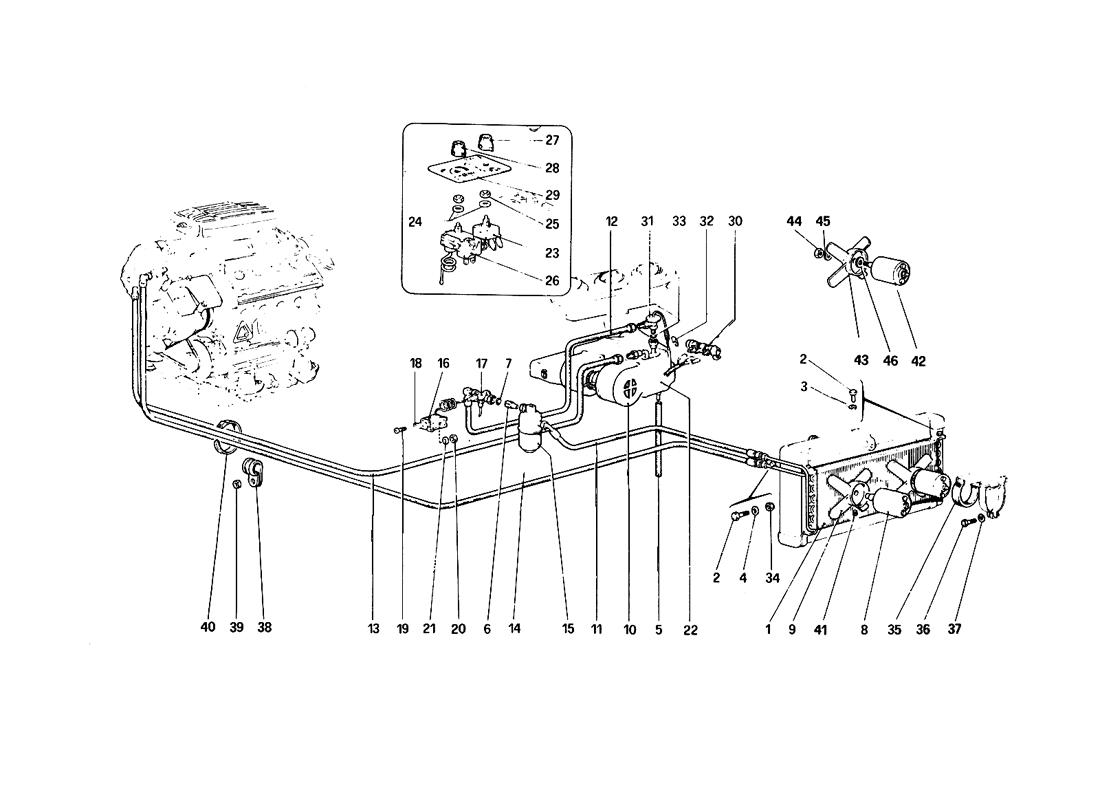

Location Part # Quantity* Description Price Add To Cart
1 106697 1 Condenser Unavailable
2 10902121 5 Screw Superseded
4 12643701 1 Washer Superseded
5 106710 1 Condensate drainage pipe Unavailable
6 107402 1 Union for receiver/drier $53.43
7 103039 1 Sealing ring $1.08
8 119447 2 Fan motor
On exhaustion no. 109825
$430.89
9 122957 2 4 blade fan
In alternative no. 119488
Unavailable
10 109039 1 Fan assembly $2,721.58
11 109322 1 Pipe F 3/8 inch, condenser to receiver/drier
For RHD use no. 112117
$100.99
12 109867 1 Pipe F 3/8 inch, condenser to evaporator
For RHD use no. 112118
$109.40
13 121119 1 Pipe F 5/8 inch evaporator to compressor
For RHD up to
Unavailable
13 109868 1 Pipe F 5/8 inch, evaporator to compressor
For LHD up to
Superseded
13 110964 1 Pipe F 5/8 inch, evaporator to compressor
To chassis no.
Unavailable
14 110367 1 PipeF 1/2 inch, compressor to condenser Unavailable
15 106647 1 Receiver/drier $242.63
16 107213 1 Max. pressure switch Unavailable
17 106646 1 Union for pressure switch Unavailable
18 106498 1 Support for pressure switch $19.04
19 110105 3 Screw Unavailable
20 15896211 2 Nut Superseded
21 12601278 2 Washer Superseded
22 60183605 1 A.C. assembly with conveyor
For GS
$2,513.40
22 60361003 1 A.C. assembly with conveyor
For RHD
$2,570.89
22 112121 1 Evaporator unit, complete
With assembly no. 60361003
Unavailable
22 109818 1 Evaporator unit, complete
With assembly no. 6C183605
Superseded
23 101990 1 Switch Unavailable
24 107144 2 Washer $15.37
25 105911 1 Nut $5.70
26 109819 1 Thermostat, calibrated Unavailable
27 105908 1 Knob for switch Unavailable
28 105907 1 Knob for thermostat Unavailable
29 109820 1 Plate, controls index $110.88
30 107142 1 Resistance far switch Unavailable
31 106644 1 Expansion valve Superseded
32 105905 1 Strap tor bulb $36.72
33 107216 1 OR ring for valve $6.50
34 12574211 1 Nut Superseded
35 111872 2 Gasket for motor $7.73
36 112012 2 Screw Unavailable
37 106850 2 Washer Superseded
38 10441990 2 Clamp
Pipe clamp no. 110367
Unavailable
39 12574211 1 Nut Superseded
40 103755 1 Clamp Unavailable
41 13804531 2 Dowel
For 4 - blade fan n. 119428
$1.83
41 13709610 2 Dowel
For 4 - blade fan n. 122957
Unavailable
42 109826 2 Fan motor
Up to exhaustion
Superseded
43 109147 2 4 - blade fan
For fan motor no. 109825
Unavailable
44 109481 2 Nut
For fan motor no. 109826
Unavailable
45 109483 2 Washer
For fan motor no. 109826
$2.13
46 109482 2 Washer
For fan motor no. 109826
$8.93

* Quantity shown indicates the number of pieces used in the diagram.
