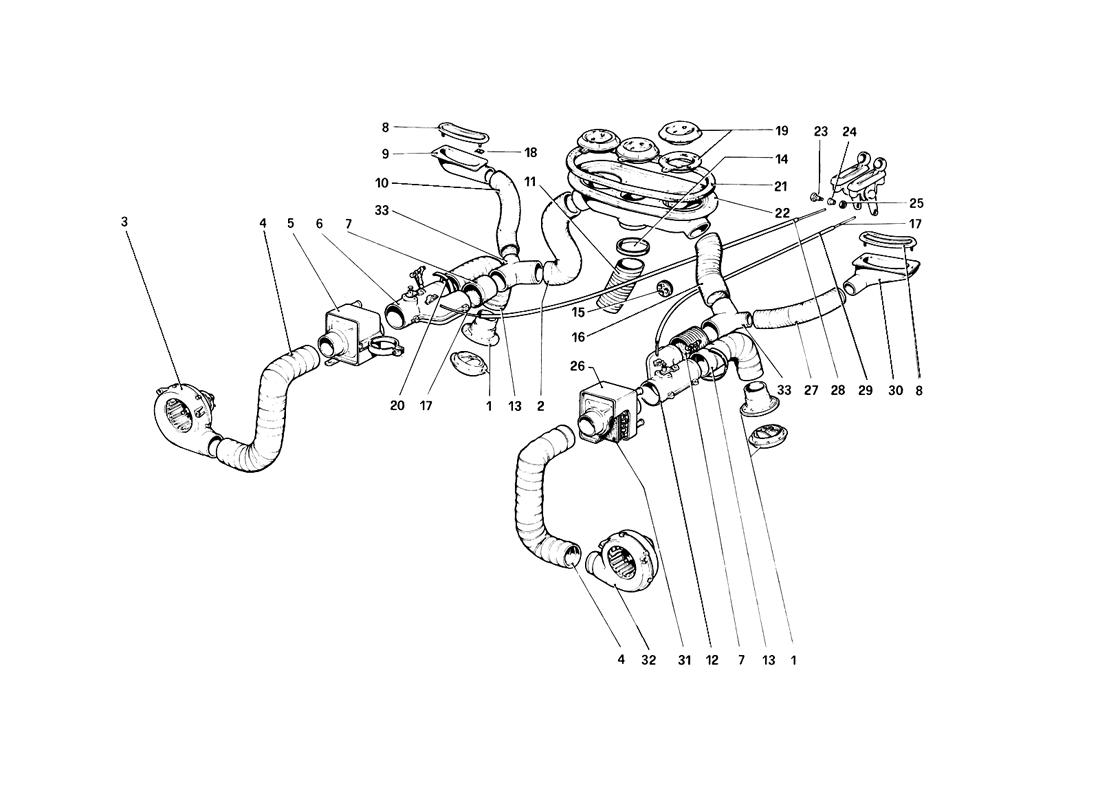

HEATING SYSTEM

HEATING SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 60054400 1 Diffusore aria inferiore $491.46
2 60123700 1 Condotto aria $88.22
3 60658600 1 Elettroventilatore Dx. $378.63
4 60034808 2 Condotto aria $221.01
5 60151305 1 Riscaldatore Dx. Unavailable
6 60135001 1 Deviatore Dx. $397.74
7 60124500 2 Condotto aria ? 80 $132.15
7 60124500 2 Condotto aria ? 80 $132.15
8 60044401 2 Diffusore aria laterals Unavailable
9 60055407 1 Convogliatore per diffusore Dx. $110.27
10 60123809 1 Condotto aria ? 60 $52.27
11 60124005 1 Condotto per aria condizionata
Opzionale A.C.
Unavailable
12 60135100 1 Deviatore Sx. Unavailable
13 60034907 2 Condotto aria $194.80
14 20143202 1 Tappo
Non vale per A.C.
Superseded
15 60714200 1 Passafilo $13.50
16 60035003 1 Condotto aria. $64.90
17 60126107 4 Cavo comando defroster Unavailable
18 60048501 8 Molletta $1.32
19 60054301 6 Diffusore aria Unavailable
20 30047609 2 Fascetta Unavailable
21 50091503 1 Guarnizione $40.42
22 20142709 1 Distributore aria $1,676.25
23 20091609 2 Vite Unavailable
24 20046900 2 Bussola $4.20
25 10794011 2 Dado Unavailable
26 60208907 1 Riscaldatore Sx. $816.75
27 60123908 1 Condotto aria ? 60 Unavailable
27 60123908 1 Condotto aria ? 60 Unavailable
28 60125901 1 Guaina cavo defreoster Dx. Unavailable
29 60126008 1 Guaina cavo defroster Sx. Superseded
30 60055506 1 Convogliatore per diffusore Sx. $120.50
31 60151909 2 Reticella interna riscaldatori Superseded
32 60658700 1 Elettroventilatore Sx. Unavailable
33 60153608 2 Raccordo a 3 vie $22.47

* Quantity shown indicates the number of pieces used in the diagram.
