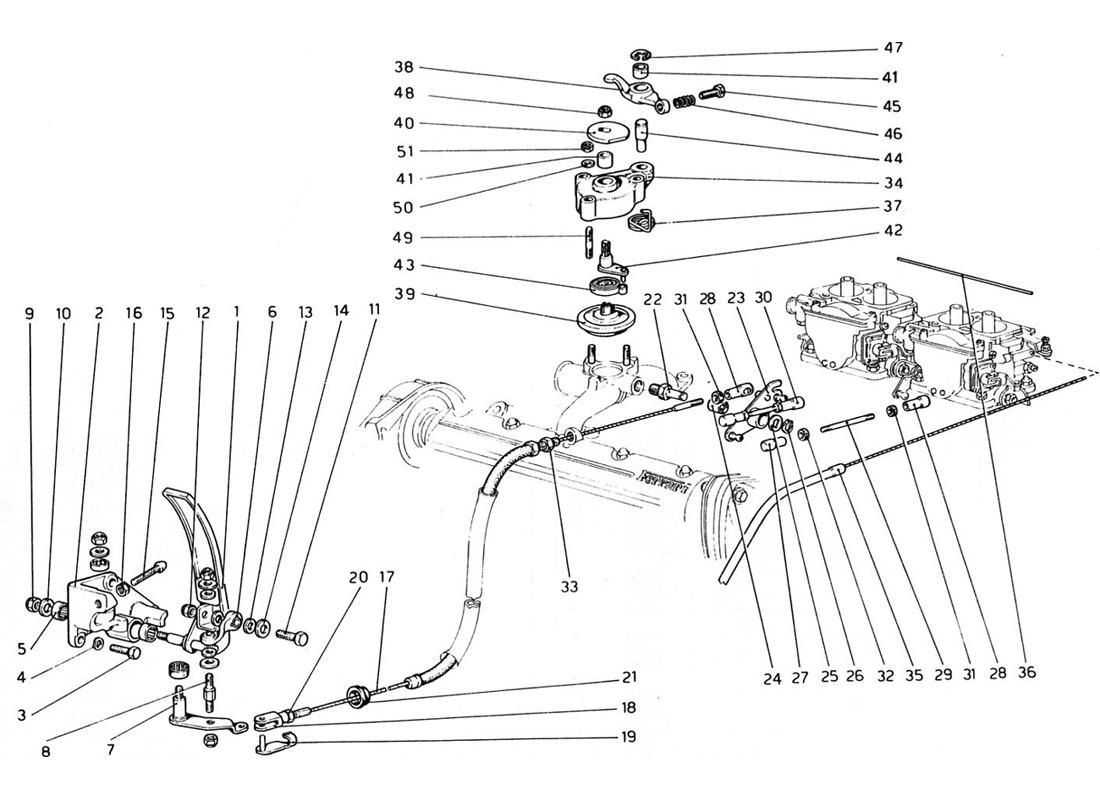

THROTTLE CONTROL

chevron-left
chevron-right
Go to Split View view-grid

THROTTLE CONTROL

Location Part # Quantity* Description Price Add To Cart
1 103329 1 Pedale acceleratore Superseded
2 106587 1 Supporto pedale acceleratore Superseded
3 16135721 3 Bolt Unavailable
4 12601371 3 Rondella elastica Superseded
5 101677 4 Astuccio a rulli $11.02
6 105237 1 Puntone $146.04
7 105235 1 Leva rinvio pedale Superseded
8 105679 1 Colonnetta sulla leva rinvio Unavailable
9 16104411 3 Nut $2.33
10 102683 2 Rondella $19.55
11 10902621 1 Bolt Superseded
12 12574211 2 Nut Superseded
13 10519401 4 Rondella di rasamento Superseded
14 12643701 3 Rondella Superseded
15 105232 1 Registro $6.96
16 16102311 1 Nut Superseded
17 106492 1 Cavo comando acceleratore $123.77
18 100655 1 Forcellino $176.67
19 100656 1 Perno con molletta $4.49
20 10725911 1 Locknut Superseded
21 105369 1 Passafilo $30.55
22 103907 1 Perno Unavailable
23 107790 1 Leva comando carburatori $323.54
24 103921 1 Bush $8.36
25 10730501 1 Rondella Superseded
26 11065975 1 Seeger Ring Superseded
27 105619 2 Testina $151.36
28 105617 3 Testina Superseded
29 103904 2 Asta f ilettata $49.61
30 103905 1 Assieme asta comando carburatori posteriori Unavailable
30 103906 1 Assieme asta comando carburatori anteriori Unavailable
31 15896411 3 Locknut Superseded
32 105586 2 Controdado f iletto sinistro $12.00
33 16100811 1 Nut Superseded
34 107677 1 Coperchio spirale termostatica $213.29
35 - 1 Cavo innasto starter Unavailable
36 108276 2 Filo coltegamento starter carburator Unavailable
37 107722 1 Molla richiamo bilanciere $41.47
38 107753 1 Bilanciere comando minimo accelerato Unavailable
39 107817 1 Corpo tenuta spirale $144.50
40 108908 1 Camma regolazione minimo $145.03
41 100958 1 Bussola $16.87
42 100581 1 Perno piastrina per camma regolazione minimo accelerate Unavailable
43 107821 1 Lamina termostatica Unavailable
44 107822 1 Perno per bilanciere $70.14
45 107823 1 Vite registro $5.89
46 107824 1 Molla ad elica $1.60
47 11087975 1 Seeger Ring Superseded
48 12575411 1 Nut Superseded
49 11501021 3 THREADED STUD Unavailable
50 11197771 3 Rondella Superseded
51 10720121 3 Nut Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
