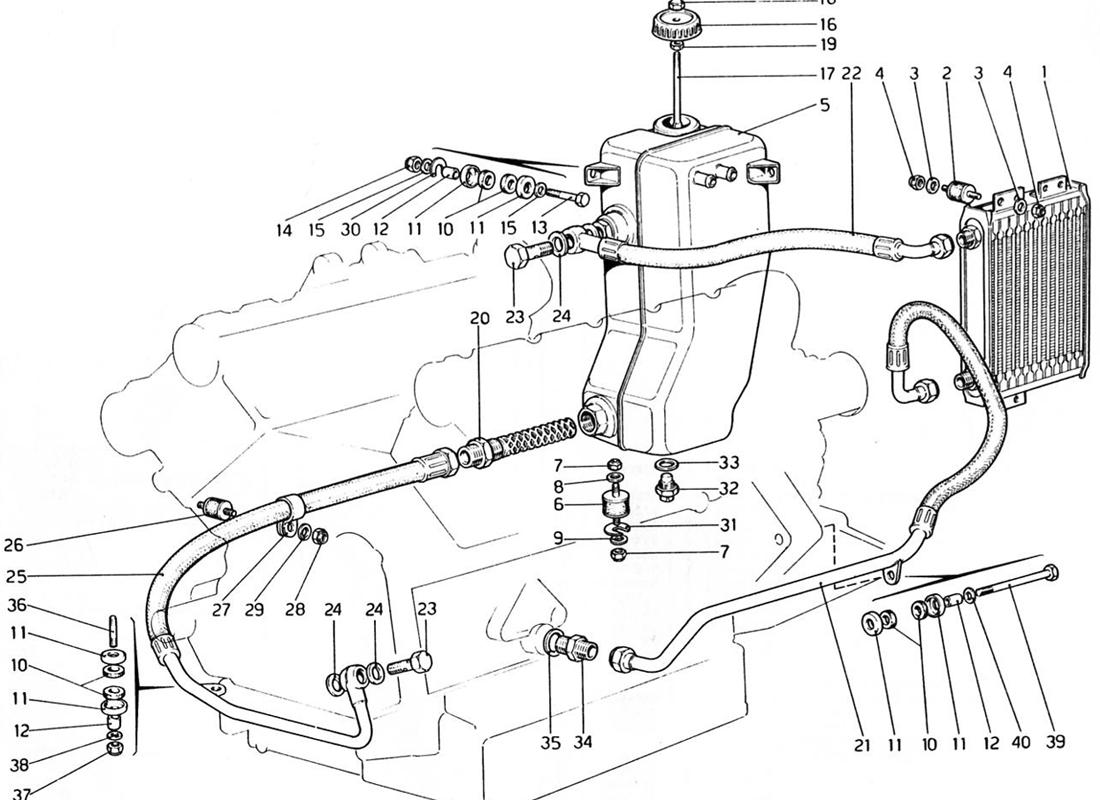

LUBRICATION SYSTEM

Go to Split View

LUBRICATION SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 106965 *Qty: 1 Radiatore olio Superseded
Location: 1 Prev | Next Part: 109758 *Qty: 1 Convogliatore aria per radiatore Unavailable
Location: 2 Prev | Next Part: 102947 *Qty: 3 Supporto antivibrante $15.94
Location: 3 Prev | Next Part: 12643701 *Qty: 6 Rondella Superseded
Location: 4 Prev | Next Part: 12574211 *Qty: 6 Nut Superseded
Location: 5 Prev | Next Part: 109617 *Qty: 1 Serbatoio olio Unavailable
Location: 6 Prev | Next Part: 101495 *Qty: 1 Supporto antivibrante $14.53
Location: 7 Prev | Next Part: 16104111 *Qty: 2 Self-locking Nut Superseded
Location: 8 Prev | Next Part: 12646201 *Qty: 1 Rondella $0.90
Location: 9 Prev | Next Part: 10519601 *Qty: 1 Rondella Superseded
Location: 10 Prev | Next Part: 107978 *Qty: 8 Tassello elastico $1.28
Location: 11 Prev | Next Part: 107979 *Qty: 8 Scodellino $0.90
Location: 12 Prev | Next Part: 107980 *Qty: 4 Bush $6.68
Location: 13 Prev | Next Part: 16043921 *Qty: 2 Vite $0.95
Location: 14 Prev | Next Part: 16104111 *Qty: 2 Self-locking Nut Superseded
Location: 15 Prev | Next Part: 10519601 *Qty: 2 Rondella Superseded
Location: 16 Prev | Next Part: 109718 *Qty: 1 Tappo carico olio complete di asta livello Unavailable
Location: 16 Prev | Next Part: 109719 *Qty: 1 Tappo carico olio Superseded
Location: 17 Prev | Next Part: 109720 *Qty: 1 Asta livello $34.67
Location: 18 Prev | Next Part: 100044 *Qty: 1 Cap Nut $0.90
Location: 19 Prev | Next Part: 15896211 *Qty: 1 Nut Superseded
Location: 20 Prev | Next Part: 109632 *Qty: 1 Filtro olio sul pescante serbatoio $130.28
Location: 21 Prev | Next Part: 109626 *Qty: 1 Tubo dalla pompa recupero al radiatore Unavailable
Location: 22 Prev | Next Part: 109624 *Qty: 1 Tubo dal radiatore al serbatoio $183.08
Location: 23 Prev | Next Part: 109694 *Qty: 2 Union $105.22
Location: 24 Prev | Next Part: 10264660 *Qty: 4 GASKET $5.16
Location: 25 Prev | Next Part: 109625 *Qty: 1 Tubo dal pescante sul serbatoio alla pompa $383.96
Location: 26 Prev | Next Part: 102947 *Qty: 2 Tampone sostegno tubo $15.94
Location: 27 Prev | Next Part: 10442190 *Qty: 2 Jubilee Clip $0.90
Location: 28 Prev | Next Part: 15896211 *Qty: 2 Nut Superseded
Location: 29 Prev | Next Part: 106850 *Qty: 2 Rondella Superseded
Location: 30 Prev | Next Part: 106470 *Qty: 2 Rondella di rasamento spessore mm 1
Di eventuate montaggio
$9.13
Location: 30 Prev | Next Part: 106472 *Qty: 2 Idem spessore mm 3 $11.73
Location: 30 Prev | Next Part: 106471 *Qty: 2 Idem spessore mm 2 $9.99
Location: 31 Prev | Next Part: 101039 *Qty: 2 Rondella di rasamento spessore mm 1
Di eventuale montaggio
Unavailable
Location: 31 Prev | Next Part: 107342 *Qty: 2 Idem spessore mm 3,25 $1.04
Location: 31 Prev | Next Part: 107341 *Qty: 2 Idem spessore mm 3 $2.00
Location: 31 Prev | Next Part: 107340 *Qty: 2 Idem spessore mm 2,5 $2.00
Location: 31 Prev | Next Part: 107339 *Qty: 2 Idem spessore mm 2 Unavailable
Location: 31 Prev | Next Part: 107338 *Qty: 2 Idem spessore mm 1,5 $2.00
Location: 32 Prev | Next Part: 100453 *Qty: 1 Termistore sul serbatoio $25.39
Location: 33 Prev | Next Part: 10257060 *Qty: 1 GASKET $0.90
Location: 34 Prev | Next Part: 109314 *Qty: 1 Raccordo $100.79
Location: 35 Prev | Next Part: 10296260 *Qty: 1 GASKET $0.90
Location: 36 Prev | Next Part: 103843 *Qty: 1 Prigioniero sul coperchio anteriore Unavailable
Location: 37 Prev | Next Part: 16100811 *Qty: 1 Nut Superseded
Location: 38 Prev | Next Part: 11198071 *Qty: 1 Rondella Superseded
Location: 39 Prev | Next Part: 109731 *Qty: 1 Bolt $15.96
Location: 40 Prev | Next Part: 11198071 *Qty: 1 Rondella Superseded

* Quantity shown indicates the number of pieces used in the diagram.
