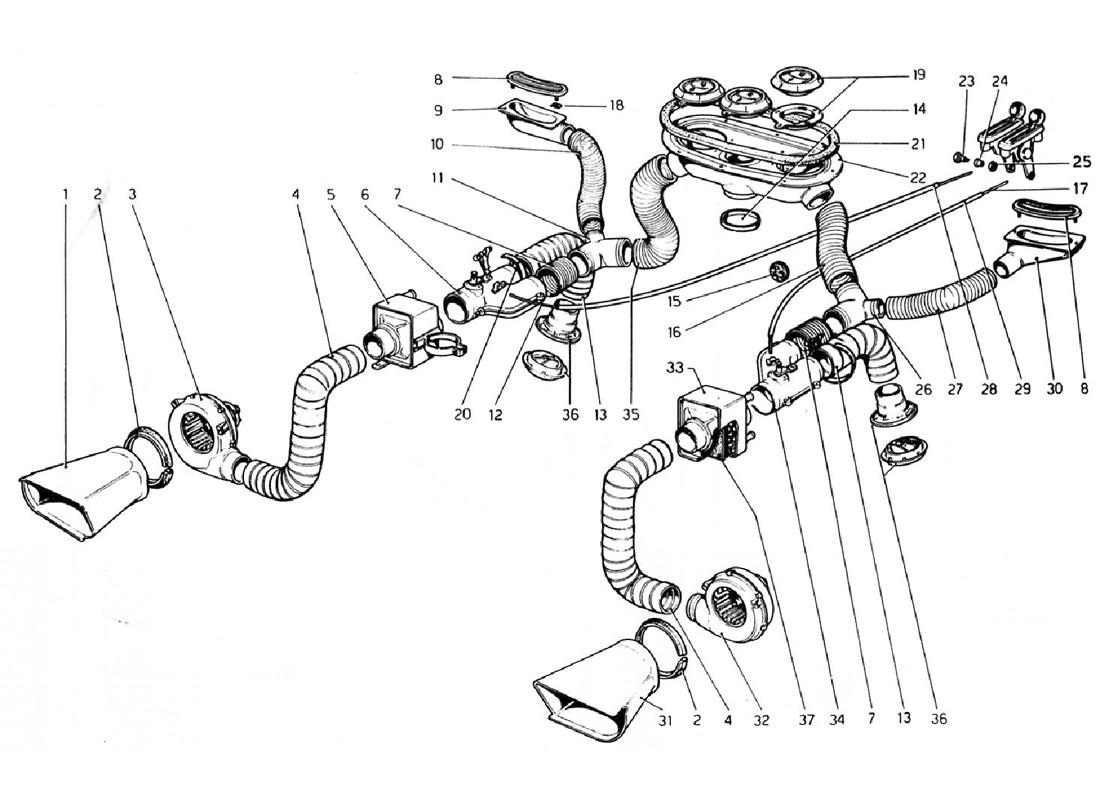

HEATING SYSTEM

Go to Split View

HEATING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60023504 *Qty: 1 Convogliatore Dx. $365.77
Location: 2 Prev | Next Part: 60154408 *Qty: 2 GASKET Unavailable
Location: 3 Prev | Next Part: 60091600 *Qty: 1 Elettroventilatore Dx. $307.28
Location: 4 Prev | Next Part: 60034808 *Qty: 2 Condotto aria $190.91
Location: 5 Prev | Next Part: 60151305 *Qty: 1 Riscaldatore Dx.
Vale dalla 33 in poi
Unavailable
Location: 5 Prev | Next Part: 40141905 *Qty: 1 Riscaldatore Dx.
Vale fino alla 32 vett.
Superseded
Location: 6 Prev | Next Part: 60135001 *Qty: 1 Deviatore Dx. $327.21
Location: 7 Prev | Next Part: 60124500 *Qty: 2 Condotto aria ? 80 $108.71
Location: 8 Prev | Next Part: 60044401 *Qty: 2 Diffusore aria laterale Unavailable
Location: 9 Prev | Next Part: 60055407 *Qty: 1 Convogliatore per diffusore Dx. $90.69
Location: 10 Prev | Next Part: 60123809 *Qty: 1 Condotto aria ? 60 $45.14
Location: 11 Prev | Next Part: 60135608 *Qty: 1 Raccordo a 3 vie Dx. Unavailable
Location: 12 Prev | Next Part: 60126109 *Qty: 1 Cavo comando defroster Unavailable
Location: 13 Prev | Next Part: 60034907 *Qty: 2 Condotto aria $160.25
Location: 14 Prev | Next Part: 20143202 *Qty: 1 Tappo Superseded
Location: 15 Prev | Next Part: 40167900 *Qty: 1 Passafilo $6.07
Location: 16 Prev | Next Part: 60035003 *Qty: 1 Condotto aria $64.90
Location: 17 Prev | Next Part: 60126109 *Qty: 1 Cavo comando defroster Unavailable
Location: 18 Prev | Next Part: 60048501 *Qty: 8 Molletta $0.97
Location: 19 Prev | Next Part: 60054301 *Qty: 3 Diffusore aria Unavailable
Location: 20 Prev | Next Part: 30047609 *Qty: 2 Jubilee Clip Unavailable
Location: 21 Prev | Next Part: 50091503 *Qty: 1 GASKET $16.24
Location: 22 Prev | Next Part: 20142709 *Qty: 1 Distributore aria $1,448.01
Location: 23 Prev | Next Part: 20091609 *Qty: 2 Vite Unavailable
Location: 24 Prev | Next Part: 20046900 *Qty: 2 Bussola $3.28
Location: 25 Prev | Next Part: 10794011 *Qty: 2 Nut $0.90
Location: 26 Prev | Next Part: 60153608 *Qty: 1 Raccordo a 3 vie Sx. $18.48
Location: 27 Prev | Next Part: 60123908 *Qty: 1 Condotto aria ? 60 Unavailable
Location: 28 Prev | Next Part: 60125903 *Qty: 1 Guaina cavo defroster Dx. Unavailable
Location: 29 Prev | Next Part: 60126000 *Qty: 1 Guaina cavo defroster Sx. Unavailable
Location: 30 Prev | Next Part: 60055506 *Qty: 1 Convogliatore per diffusore Sx. $99.11
Location: 31 Prev | Next Part: 60023603 *Qty: 1 Convogliatore Sx. $365.77
Location: 32 Prev | Next Part: 60091709 *Qty: 1 Elettroventilatore Sx. $307.28
Location: 33 Prev | Next Part: 60208907 *Qty: 1 Riscaldatore Sx.
Vale dalla 201 in poi
$671.93
Location: 33 Prev | Next Part: 40117400 *Qty: 1 Riscaldatore Sx.
Vale fino alla 32 vett.
$355.23
Location: 33 Prev | Next Part: 60151404 *Qty: 1 Riscaldatore Sx.
Vale dalla 33 alla 200 vett.
$382.15
Location: 34 Prev | Next Part: 60135100 *Qty: 1 Deviatore Sx. Unavailable
Location: 35 Prev | Next Part: 60123700 *Qty: 1 Condotto aria $76.20
Location: 36 Prev | Next Part: 60054400 *Qty: 2 Diffusore aria inferiore $149.36
Location: 37 Prev | Next Part: 60151909 *Qty: 2 Reticello interne riscaldatori
Vale dalla 33 in poi
Superseded

* Quantity shown indicates the number of pieces used in the diagram.
