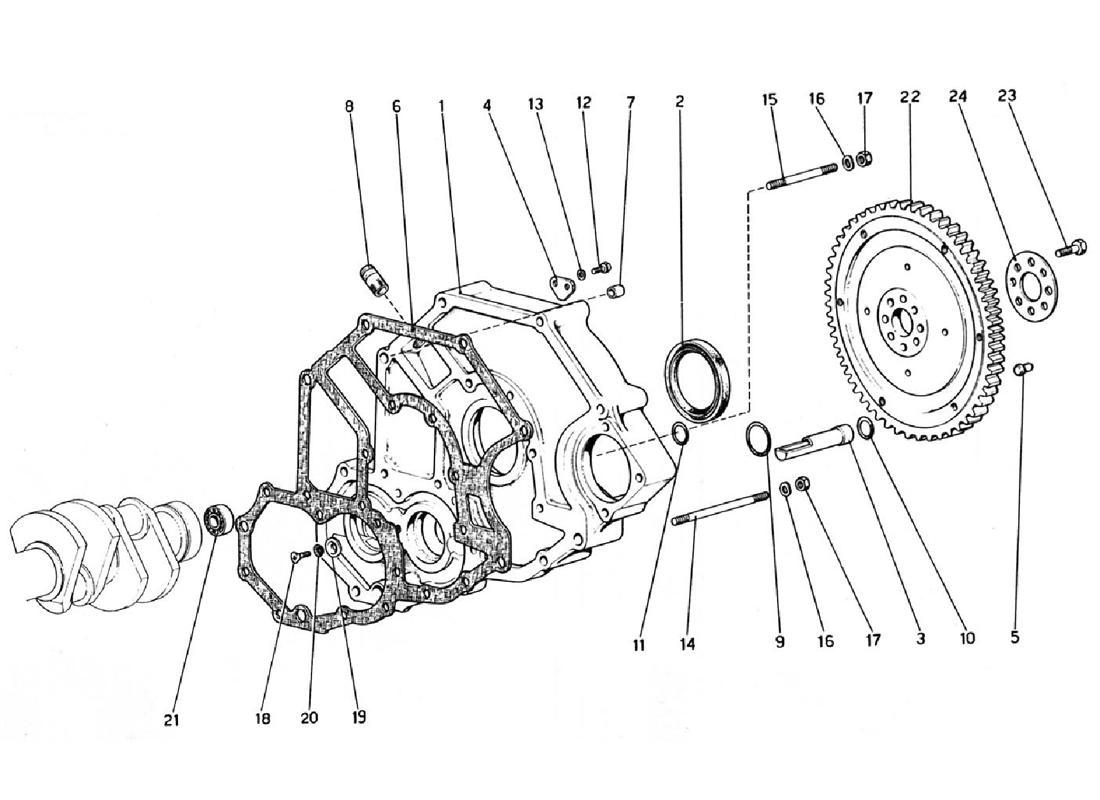

FLYWHEEL AND CLUTCH HOUSING SPACER

Go to Split View

FLYWHEEL AND CLUTCH HOUSING SPACER

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 109117 *Qty: 1 Corpo intermedio completo $1,148.60
Location: 1 Prev | Next Part: 107997 *Qty: 1 Corpo intermedio Call
Location: 2 Prev | Next Part: 106244 *Qty: 1 Sealing Ring
In alternativa con N.40000230
Superseded
Location: 2 Prev | Next Part: 40000230 *Qty: 1 Sealing Ring Superseded
Location: 3 Prev | Next Part: 104035 *Qty: 1 Tubo passaggio olio $40.12
Location: 4 Prev | Next Part: 104034 *Qty: 1 Piastra riferimento fasature Superseded
Location: 5 Prev | Next Part: 101535 *Qty: 3 Grnno $13.30
Location: 6 Prev | Next Part: 104202 *Qty: 1 GASKET Superseded
Location: 7 Prev | Next Part: 102692 *Qty: 1 Dowel $5.99
Location: 8 Prev | Next Part: 102705 *Qty: 1 Raccordo $30.58
Location: 9 Prev | Next Part: 103021 *Qty: 1 Sealing Ring $2.61
Location: 10 Prev | Next Part: 103775 *Qty: 1 Sealing Ring $1.97
Location: 11 Prev | Next Part: 104214 *Qty: 1 Sealing Ring $2.83
Location: 12 Prev | Next Part: 10977621 *Qty: 2 Vite Superseded
Location: 13 Prev | Next Part: 11195473 *Qty: 2 Rondella elastica Superseded
Location: 14 Prev | Next Part: 104217 *Qty: 1 Prigioniero lungo $18.77
Location: 15 Prev | Next Part: 13518521 *Qty: 1 Prigioniero corto Call
Location: 16 Prev | Next Part: 11198071 *Qty: 2 Rondella Superseded
Location: 17 Prev | Next Part: 16100811 *Qty: 2 Nut Superseded
Location: 18 Prev | Next Part: 108040 *Qty: 1 Vite Superseded
Location: 19 Prev | Next Part: 108039 *Qty: 1 Rondella $3.80
Location: 20 Prev | Next Part: 108041 *Qty: 1 Rondella $0.90
Location: 21 Prev | Next Part: 103877 *Qty: 1 Bearing $29.17
Location: 22 Prev | Next Part: 108890 *Qty: 1 Volano motore Call
Location: 23 Prev | Next Part: 103875 *Qty: 8 Bolt Superseded
Location: 24 Prev | Next Part: 103876 *Qty: 1 Rondella $10.96

* Quantity shown indicates the number of pieces used in the diagram.
