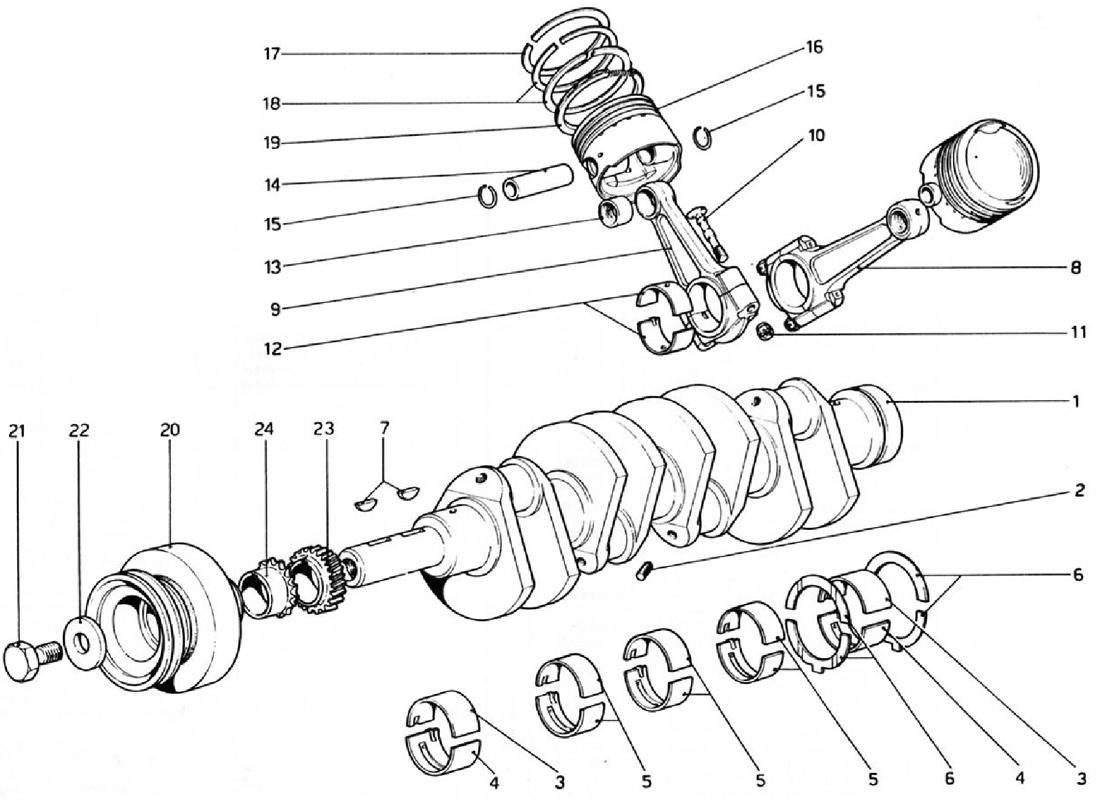

CRANKSHAFT - CONNECTING RODS AND PISTONS

Go to Split View

CRANKSHAFT - CONNECTING RODS AND PISTONS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 105623 *Qty: 1 Albero motore Superseded
Location: 2 Prev | Next Part: 106933 *Qty: 1 Serie cuscinetti di banco 2? minorazione mm. 0,508 Unavailable
Location: 2 Prev | Next Part: 106932 *Qty: 1 Serie cuscinetti di banco 1a minorazione mm. 0,254 Unavailable
Location: 2 Prev | Next Part: - *Qty: 1 Semicuscinetti anteriori e posteriori Unavailable
Location: 2 Prev | Next Part: 14326150 *Qty: 8 Tappo $0.90
Location: 2 Prev | Next Part: 106931 *Qty: 1 Serie cuscinetti di banco ? normale Unavailable
Location: 2 Prev | Next Part: 106934 *Qty: 1 Serie cuscinetti di banco 3? minorazione mm. 0,762 Unavailable
Location: 3 Prev | Next Part: 100118 *Qty: 2 Semicuscinetto superiore $48.06
Location: 3 Prev | Next Part: 100121 *Qty: 2 3? minorazione mm. 0,762 sul ? $49.99
Location: 3 Prev | Next Part: 100120 *Qty: 2 2? minorazione mm. 0,508 sul ? $45.97
Location: 3 Prev | Next Part: 100119 *Qty: 2 1? minorazione mm. 0,254 sul ? $86.10
Location: 4 Prev | Next Part: 100122 *Qty: 2 Semicuscinetto inferiore $41.38
Location: 4 Prev | Next Part: - *Qty: 2 Semicuscinetti central! e intermedi Unavailable
Location: 4 Prev | Next Part: 100125 *Qty: 2 3? minorazione mm. 0,762 sul ? $49.99
Location: 4 Prev | Next Part: 100124 *Qty: 2 2? minorazione mm. 0,508 sul ? $43.97
Location: 4 Prev | Next Part: 100123 *Qty: 2 1? minorazione mm. 0,254 sul ? $120.82
Location: 5 Prev | Next Part: - *Qty: 6 Ring Unavailable
Location: 5 Prev | Next Part: 104026 *Qty: 6 3? minorazione mm. 0,762 sul ? $41.15
Location: 5 Prev | Next Part: 104025 *Qty: 6 2? minorazione mm. 0,508 sul ? $39.86
Location: 5 Prev | Next Part: 104024 *Qty: 6 1? minorazione mm. 0,254 sul ? Superseded
Location: 5 Prev | Next Part: 104023 *Qty: 6 Semicuscinetto superiore e inferiore Unavailable
Location: 6 Prev | Next Part: 100146 *Qty: 2 Ring $31.97
Location: 6 Prev | Next Part: 100147 *Qty: 2 1? maggiorazione mm. 0,25 $15.56
Location: 7 Prev | Next Part: 10206020 *Qty: 2 Key $1.73
Location: 8 Prev | Next Part: 100148 *Qty: 8 Biella completa
Vale fino ad esaurimento
Superseded
Location: 8 Prev | Next Part: 109378 *Qty: 8 Biella completa
Vale dopo es. N. 100148
Unavailable
Location: 9 Prev | Next Part: 109688 *Qty: 8 Biella e cappello
Vale dopo es. N.100149
Unavailable
Location: 9 Prev | Next Part: 100149 *Qty: 8 Biella e cappello
Vale fino ad esaurimento
Unavailable
Location: 10 Prev | Next Part: 100156 *Qty: 16 Bolt $18.98
Location: 11 Prev | Next Part: 104011 *Qty: 16 Nut $11.66
Location: 12 Prev | Next Part: 106183 *Qty: 8 Cuscinetto di biella $21.10
Location: 12 Prev | Next Part: 100153 *Qty: 8 3? minorazione mm. 0,762 sul ? $42.14
Location: 12 Prev | Next Part: 106186 *Qty: 8 3a minorazione mm. 0,762 sul ? Superseded
Location: 12 Prev | Next Part: 100152 *Qty: 8 2? minorazione mm. 0,508 sul ? $99.66
Location: 12 Prev | Next Part: 106185 *Qty: 8 2a minorazione mm. 0,508 sul ? Superseded
Location: 12 Prev | Next Part: 100151 *Qty: 8 1? minorazione mm. 0,254 sul ? $70.43
Location: 12 Prev | Next Part: 106184 *Qty: 8 la minorazione mm. 0,254 sul ? Superseded
Location: 12 Prev | Next Part: 100150 *Qty: 8 Cuscinetto di biella Superseded
Location: 13 Prev | Next Part: 107100 *Qty: 8 Bush $22.81
Location: 14 Prev | Next Part: 104487 *Qty: 8 Spinotto per pistone Unavailable
Location: 15 Prev | Next Part: 100174 *Qty: 16 Ring $3.92
Location: 16 Prev | Next Part: 106937 *Qty: 1 Serie segmenti ? normale mm. 81 Unavailable
Location: 16 Prev | Next Part: 106939 *Qty: 1 Serie segmenti 2? maggiorazione mm. 81,30 $225.73
Location: 16 Prev | Next Part: 106938 *Qty: 1 Serie segmenti 1? maggiorazione mm. 81,15 $145.30
Location: 16 Prev | Next Part: 107183 *Qty: 8 Pistone motore ? normale Unavailable
Location: 16 Prev | Next Part: 107200 *Qty: 1 2? maggiorazione mm 0,30 Unavailable
Location: 16 Prev | Next Part: 107193 *Qty: 1 1? maggiorazione mm 0,15 Unavailable
Location: 17 Prev | Next Part: 107184 *Qty: 8 Sealing Ring Unavailable
Location: 17 Prev | Next Part: 107201 *Qty: 8 Idem maggiorato di mm. 0,30 Unavailable
Location: 17 Prev | Next Part: 107194 *Qty: 8 Idem maggiorato di mm. 0,15 Unavailable
Location: 18 Prev | Next Part: 107202 *Qty: 16 Idem maggiorato di mm. 0,30 Unavailable
Location: 18 Prev | Next Part: 107195 *Qty: 16 Idem maggiorato di mm. 0,15 Unavailable
Location: 18 Prev | Next Part: 107185 *Qty: 16 Sealing Ring Unavailable
Location: 19 Prev | Next Part: 107186 *Qty: 8 Ring Unavailable
Location: 19 Prev | Next Part: 107203 *Qty: 8 Idem maggiorato di mm. 0,30 Unavailable
Location: 19 Prev | Next Part: 107196 *Qty: 8 Idem maggiorato di mm. 0,15 Unavailable
Location: 20 Prev | Next Part: 109315 *Qty: 1 Smorzatore torsionale con puleggia $659.33
Location: 21 Prev | Next Part: 100476 *Qty: 1 Vite Superseded
Location: 22 Prev | Next Part: 102775 *Qty: 1 Rondella $33.72
Location: 23 Prev | Next Part: 109317 *Qty: 1 Pignone comando distribuzione Unavailable
Location: 24 Prev | Next Part: 109316 *Qty: 1 Pignone comando pompa recupero $1,156.84

* Quantity shown indicates the number of pieces used in the diagram.
