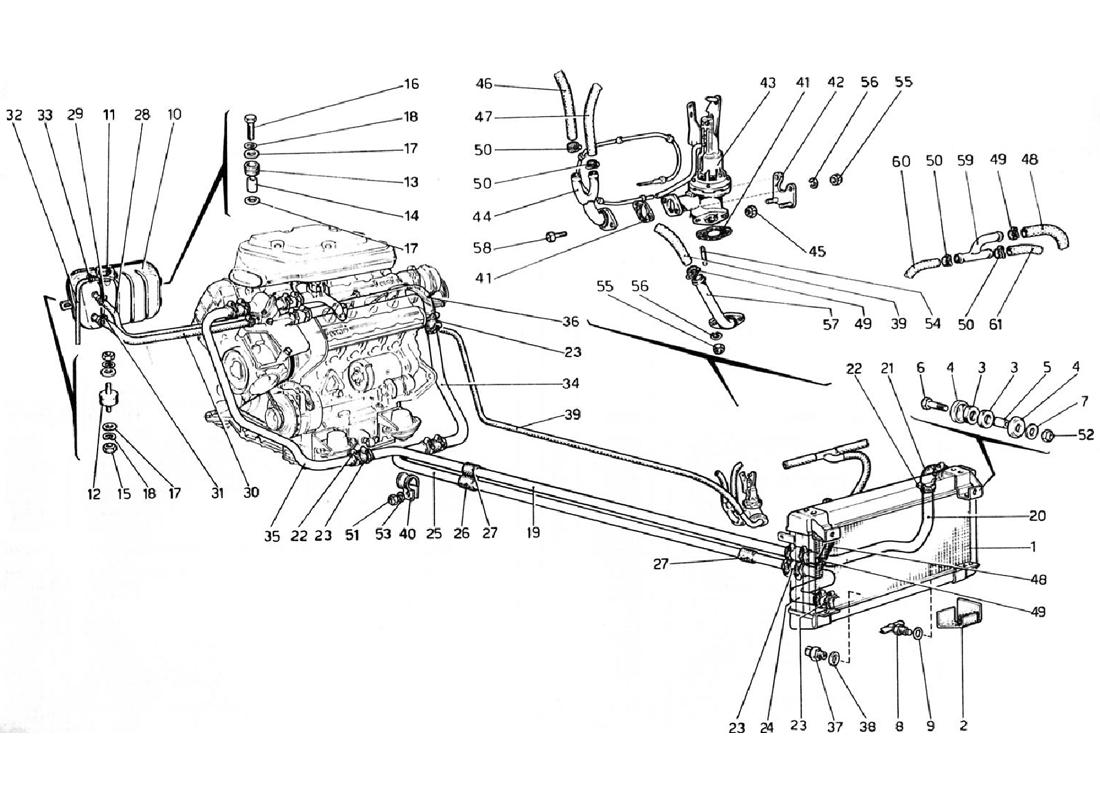

COOLING SYSTEM

COOLING SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 107759 1 Radiatore acqua Superseded
2 107782 2 Spessore gomma antivibrante $61.85
3 107978 4 Tassello elastico $13.66
4 107979 4 Scodellino $13.44
5 107980 2 Spacer $7.31
6 10643821 2 Bolt Unavailable
7 10519601 2 Rondella Superseded
8 101488 1 Rubinetto scarico acqua $212.72
9 101496 1 GASKET Unavailable
10 109003 1 Nourice per radiatore Unavailable
11 101499 1 Tappo per nourice Superseded
12 102947 1 Supporto antivibrante $17.42
13 103549 2 Bush $1.50
14 103550 2 Spacer $6.82
15 15896211 1 Nut Superseded
16 10902421 2 Vite Superseded
17 106850 3 Rondella Superseded
18 12643701 3 Rondella Superseded
19 108082 1 Tubo Centrale per mandata al Radiatore
Vale per RHD
$177.64
19 108081 1 Tubo centrale per mandata al radiatore Unavailable
20 109369 1 Tubo anteriore per mandata al radiatore Unavailable
20 109503 1 Tubo anteriore per mandata al radiatore
Vale per RHD
Unavailable
21 102956 1 SLEEVE Superseded
22 102958 12 Jubilee Clip Superseded
23 102957 5 SLEEVE Superseded
24 109370 1 Tubo anteriore per ritorno $359.03
24 109504 1 Tubo anteriore per ritorno
Vale per RHD
Unavailable
25 108082 1 Tubo centrale per ritorno $177.64
26 107465 1 Manicotto antivibrante Unavailable
27 105385 3 Manicotto antivibrante $48.88
28 103471 1 Tubo sfiato collegamento motore nourice Superseded
29 102604 2 Jubilee Clip Superseded
30 109355 1 Tubo alimentazione dalla nourice al motore Superseded
31 105622 2 Jubilee Clip $5.70
32 105960 1 Tubo sfiato Unavailable
33 101296 1 Jubilee Clip Unavailable
34 106690 1 Tubo posteriore sinistro Unavailable
34 107466 1 Tubo posteriore Sinistro
Vale per RHD
Unavailable
35 108042 1 Tubo posteriore destro Unavailable
36 106306 1 Tubo fra le teste Unavailable
37 101507 1 Termocontatto Superseded
38 101508 1 GASKET $1.40
39 109750 1 Tubo dal motore al rubinetto Unavailable
40 107002 1 Jubilee Clip $31.00
41 104291 2 GASKET $6.48
42 109375 1 Supporto rubinetto Unavailable
43 109659 1 Rubinetto riscaldatore $123.20
44 109430 1 Tre vie sul rubinetto Unavailable
45 12574211 2 Self-locking Nut Superseded
46 109751 1 Tubo al riscaldatore destro Unavailable
47 109752 1 Tubo al riscaldatore sinistro Superseded
48 109755 1 Tubo al tre vie $260.88
49 104022 4 Jubilee Clip Unavailable
50 100507 8 Jubilee Clip Unavailable
51 12574221 1 Nut Superseded
52 16104411 2 Nut $0.90
53 12643701 1 Rondel la Superseded
54 11500021 2 THREADED STUD Superseded
55 15896211 4 Nut Superseded
56 106850 4 Rondella Superseded
57 109429 1 Raccordo sul rubinetto Unavailable
58 10902321 2 Bolt Superseded
59 109376 1 Raccordo 3 vie $93.79
60 109753 1 Tubo dal riscaldatore Dx. Al 3 vie $75.52
61 109754 1 Tubo dal riscaldatore Sx . Al 3 vie $7.57

* Quantity shown indicates the number of pieces used in the diagram.
