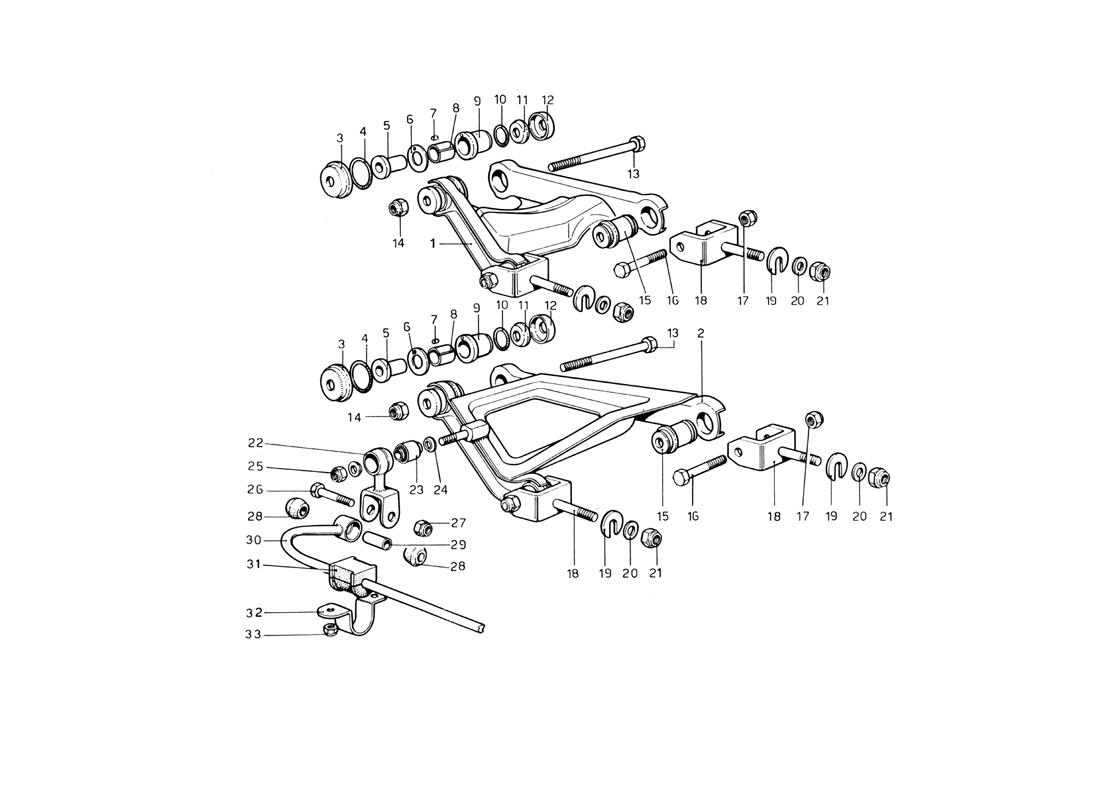

REAR SUSPENSION - WISHBONES

Go to Split View

REAR SUSPENSION - WISHBONES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 104423 *Qty: 1 Assieme leva superiore destra $968.52
Location: 1 Prev | Next Part: 104422 *Qty: 1 Assieme leva superiore sinistra $936.53
Location: 2 Prev | Next Part: 607-601409 *Qty: 8 Assieme boccola inferiore e superiore Call
Location: 2 Prev | Next Part: 607-602102 *Qty: 1 Assieme leva inferiore destra
Vale fino ad esaurimento
Call
Location: 2 Prev | Next Part: 104428 *Qty: 1 Assieme leva inferiore destra
Dopo esaur. N. 607-602102
$2,390.89
Location: 2 Prev | Next Part: 607-601326 *Qty: 1 Assieme leva inferiore sinistra
Vale fino ad esaurimento
Call
Location: 2 Prev | Next Part: 607E60235 *Qty: 1 Assieme leva inferiore sinistra
Dopo esaur. N. 607-601326
Call
Location: 3 Prev | Next Part: 101014 *Qty: 8 Scodellino para-acqua $6.85
Location: 4 Prev | Next Part: 101044 *Qty: 8 Anello di tenuta $5.00
Location: 5 Prev | Next Part: 616-602109 *Qty: 8 Boccola interna
Dopo esaur. N. 100785
Call
Location: 5 Prev | Next Part: 100785 *Qty: 8 Boccola interna
Vale fino ad esaurimento
Superseded
Location: 6 Prev | Next Part: 101009 *Qty: 8 Anello reggispinta $11.46
Location: 7 Prev | Next Part: 100796 *Qty: 8 Grano per boccola $4.84
Location: 8 Prev | Next Part: 100787 *Qty: 8 Boccola $6.21
Location: 9 Prev | Next Part: 563-600739 *Qty: 8 Boccola esterna Call
Location: 10 Prev | Next Part: 101043 *Qty: 8 Anellino di tenuta $1.26
Location: 11 Prev | Next Part: 101016 *Qty: 8 Rondella tenuta boccola $18.33
Location: 12 Prev | Next Part: 101011 *Qty: 8 Scodellino para acqua $6.64
Location: 13 Prev | Next Part: 101052 *Qty: 4 Bullone Superseded
Location: 14 Prev | Next Part: 95900617 *Qty: 4 Dado Call
Location: 15 Prev | Next Part: 103170 *Qty: 8 Boccola Superseded
Location: 16 Prev | Next Part: 15541221 *Qty: 8 Bullone $4.38
Location: 17 Prev | Next Part: 95900617 *Qty: 8 Dado Call
Location: 18 Prev | Next Part: 607E60172 *Qty: 8 Forcella attacca leva
Dalla N. 04830 la quant. e 4
Call
Location: 19 Prev | Next Part: 101039 *Qty: 8 Rondella rasamento (spessore 2.5)
Dalla N. 04830 la quant, e 4
Call
Location: 20 Prev | Next Part: 101041 *Qty: 8 Rondella
Dalla N. 04830 la quant. e 4
$0.90
Location: 21 Prev | Next Part: 95900611 *Qty: 8 Dado
Dalla N. 04830 la quant. e 4
Call
Location: 22 Prev | Next Part: 104420 *Qty: 2 Biscottino per barra Call
Location: 23 Prev | Next Part: 100773 *Qty: 2 Silentblok (RIV 88.109.541) $34.12
Location: 24 Prev | Next Part: 104421 *Qty: 4 Distanziale per silentblok Call
Location: 25 Prev | Next Part: 95900610 *Qty: 2 Dado $0.90
Location: 26 Prev | Next Part: 105962 *Qty: 2 Bullone Call
Location: 27 Prev | Next Part: 95900617 *Qty: 2 Dado Call
Location: 28 Prev | Next Part: 100984 *Qty: 4 Gommino per biscottino $14.60
Location: 29 Prev | Next Part: 100985 *Qty: 2 Tubo distanziale $25.55
Location: 30 Prev | Next Part: 607E60172 *Qty: 1 Barra stabilizzatrice Call
Location: 31 Prev | Next Part: 104445 *Qty: 2 Tampone tenuta barra $19.12
Location: 32 Prev | Next Part: 104417 *Qty: 2 Piastrina tenuta tampone $24.61
Location: 33 Prev | Next Part: 104114 *Qty: 4 Dado
Dopo esaurim. N. 12575621
Superseded
Location: 33 Prev | Next Part: 12575621 *Qty: 4 Dado
Vale fino ad esaurimento
Superseded

* Quantity shown indicates the number of pieces used in the diagram.
