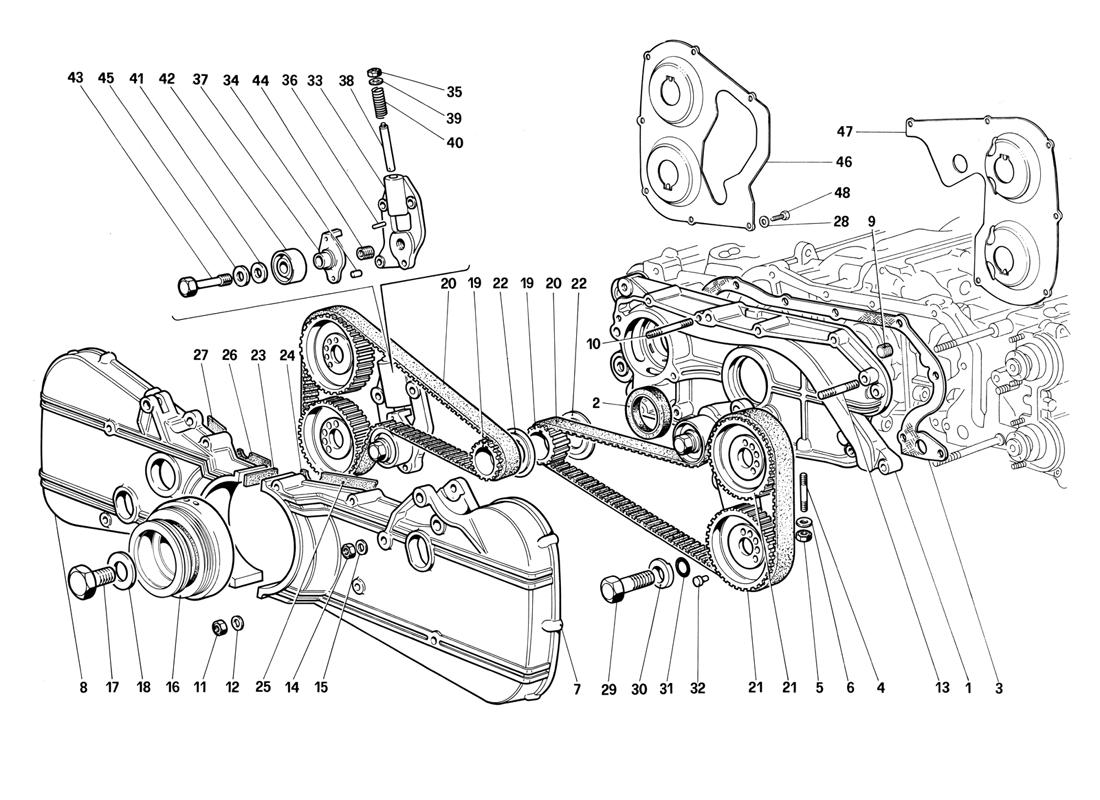

TIMING SYSTEM - CONTROLS

TIMING SYSTEM - CONTROLS

Location Part # Quantity* Description Price Add To Cart
1 143102 1 Front cover, complete
With complete cranckase - Starting engine no. 20821
Unavailable
1 121433 1 Front cover, complete
With complete cranckase - Until engine no. 20820
Unavailable
2 121094 1 Seal ring $40.46
3 134947 1 Gasket - Without Amianthus Superseded
3 122172 1 Gasket - With Amianthus Superseded
4 13449621 3 Stud Superseded
5 12575621 3 Nut Superseded
6 12601471 1 Washer Superseded
7 126068 1 L.H. cover Unavailable
8 125778 1 R.H. cover $1,410.42
9 127635 1 Plug $4.16
10 13544321 3 Stud Superseded
11 101139 3 Nut $0.90
12 12601371 3 Washer Superseded
13 13450421 1 Stud Unavailable
14 12575611 1 Nut Superseded
15 12601471 1 Washer Superseded
16 134145 1 Damper
For "Poli V" control belt
Unavailable
16 125194 1 Damper
For trapezoidal control belt
$6,304.98
17 100476 1 Screw Superseded
18 102775 1 Washer $35.74
19 123112 2 Belt control gear $316.82
20 120731 2 Timing belt Superseded
21 123108 4 Timing belt pulley $751.51
22 120733 2 Timing belt lock ring $208.32
23 128029 1 Adhesive protection $2.78
24 128030 1 Adhesive protection $8.57
25 128031 1 Adhesive protection $3.88
26 128032 1 Adhesive protection Unavailable
27 128033 1 Adhesive protection $3.19
28 12601171 13 Washer Superseded
29 146450 4 Screw
Starting engine no. 21581
Superseded
29 16326431 4 Screw
Until engine no. 21580
Unavailable
30 114802 4 Gear retaining washer $11.35
31 114808 4 Garter spring $5.24
32 114803 4 Drive pin $19.51
33 121044 4 Dowel Unavailable
34 125717 2 Dowel $3.88
35 102948 2 Self-locking nut Superseded
36 13933570 2 Spring pin Unavailable
37 121045 2 Belt stretcher support plate Unavailable
38 121047 2 Spring control pin $10.05
39 121558 2 Spring retaining washer Unavailable
40 121249 2 Spring $15.29
41 111460 2 Spacer Unavailable
42 PT512TR 1 Cambelt Tensioner (PAIR) $196.00
43 111458 2 Screw $69.34
44 13524670 2 Heli-coil Unavailable
45 102824 2 Washer $15.18
46 123705 1 R.H. belt protection plate $661.31
47 123706 1 L.H. belt protection plate Unavailable
48 10977711 13 Screw Superseded

* Quantity shown indicates the number of pieces used in the diagram.
