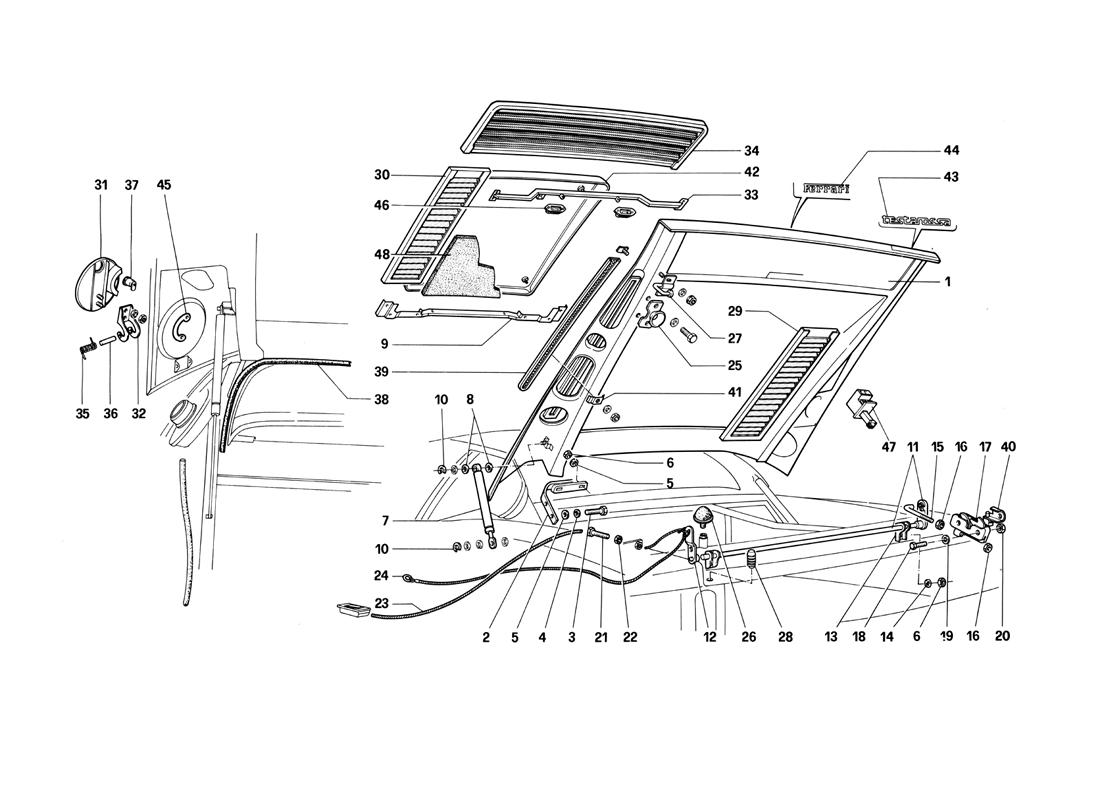

REAR HOOD

Go to Split View

REAR HOOD

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61497700 *Qty: 1 Engine bonnet $7,571.32
Location: 2 Prev | Next Part: 61497800 *Qty: 1 Engine bonnet left hinge $191.96
Location: 2 Prev | Next Part: 61497900 *Qty: 1 Engine bonnet right hinge $191.96
Location: 3 Prev | Next Part: 16043821 *Qty: 4 Screw Superseded
Location: 4 Prev | Next Part: 10571770 *Qty: 4 Washer Unavailable
Location: 5 Prev | Next Part: 12647001 *Qty: 8 Washer Superseded
Location: 6 Prev | Next Part: 14084411 *Qty: 6 Nut $0.90
Location: 7 Prev | Next Part: 61498000 *Qty: 1 Support, LH
Not for US
$73.11
Location: 7 Prev | Next Part: 61498100 *Qty: 1 Support, RH
For US q=2
$58.39
Location: 8 Prev | Next Part: 12601371 *Qty: 8 Washer Superseded
Location: 9 Prev | Next Part: 61498200 *Qty: 1 Grill front frame $241.90
Location: 10 Prev | Next Part: 11087976 *Qty: 4 Spring ring Superseded
Location: 11 Prev | Next Part: 61498600 *Qty: 1 Rod with lever, for RHD $326.03
Location: 11 Prev | Next Part: 61498500 *Qty: 1 Rod with lever, for LHD $88.36
Location: 12 Prev | Next Part: 61498400 *Qty: 1 LH lever
For RHD
$22.66
Location: 12 Prev | Next Part: 61498300 *Qty: 1 LH lever
For LHD
$7.92
Location: 13 Prev | Next Part: 61498700 *Qty: 2 Lever support $180.56
Location: 14 Prev | Next Part: 10519601 *Qty: 2 Washer Superseded
Location: 15 Prev | Next Part: 61498800 *Qty: 2 Tie rod $5.37
Location: 16 Prev | Next Part: 61498900 *Qty: 4 Nut Unavailable
Location: 17 Prev | Next Part: 61497600 *Qty: 2 Lock Superseded
Location: 18 Prev | Next Part: 10902821 *Qty: 4 Screw Superseded
Location: 19 Prev | Next Part: 12640601 *Qty: 4 Washer Superseded
Location: 20 Prev | Next Part: 14084211 *Qty: 4 Nut $0.90
Location: 21 Prev | Next Part: 61497400 *Qty: 1 Screw $2.33
Location: 22 Prev | Next Part: 10725911 *Qty: 1 Nut Superseded
Location: 23 Prev | Next Part: 61499200 *Qty: 1 Cable for opening bonnet $56.44
Location: 24 Prev | Next Part: 61499300 *Qty: 1 Emergency cable $46.64
Location: 25 Prev | Next Part: 61499400 *Qty: 2 Pad seat $14.91
Location: 26 Prev | Next Part: 61499500 *Qty: 2 Pad Superseded
Location: 27 Prev | Next Part: 61499600 *Qty: 1 Right catch Unavailable
Location: 27 Prev | Next Part: 61499700 *Qty: 1 Left catch $302.41
Location: 28 Prev | Next Part: 61499800 *Qty: 2 Small block $1.98
Location: 29 Prev | Next Part: 61500000 *Qty: 1 Right side grill for air exhaust $643.28
Location: 30 Prev | Next Part: 61500100 *Qty: 1 Left side grill for air exhaust $643.28
Location: 31 Prev | Next Part: 61500200 *Qty: 1 Fuel filler lid $55.41
Location: 32 Prev | Next Part: 61500300 *Qty: 1 Fuel filler lid hinge $11.75
Location: 33 Prev | Next Part: 61500400 *Qty: 1 Grill rear frame
Not for US
$966.71
Location: 33 Prev | Next Part: 61541900 *Qty: 1 Grill rear frame
For US
$423.33
Location: 34 Prev | Next Part: 61500500 *Qty: 1 Rear grill for air exhaust $2,161.21
Location: 35 Prev | Next Part: 61500600 *Qty: 1 Spring $8.06
Location: 36 Prev | Next Part: 61500700 *Qty: 1 Pin $2.83
Location: 37 Prev | Next Part: 61500800 *Qty: 1 Fuel filler lid lock
With set of lock
Unavailable
Location: 38 Prev | Next Part: 61500900 *Qty: 1 Gasket Unavailable
Location: 39 Prev | Next Part: 61501100 *Qty: 1 Left side grill on fin $770.38
Location: 39 Prev | Next Part: 61501000 *Qty: 1 Right side grill on fin $770.38
Location: 40 Prev | Next Part: 61501200 *Qty: 2 Switch Unavailable
Location: 41 Prev | Next Part: 61501300 *Qty: 6 Bracket $60.15
Location: 42 Prev | Next Part: 61541300 *Qty: 1 Central panel
For US
$997.34
Location: 42 Prev | Next Part: 61501400 *Qty: 1 Central panel
Not for US
$1,057.84
Location: 43 Prev | Next Part: 61501500 *Qty: 1 Testarossa nameplate $347.98
Location: 44 Prev | Next Part: 61025000 *Qty: 1 Ferrari nameplate $80.99
Location: 45 Prev | Next Part: 61529900 *Qty: 1 Fuel filler lid gasket $2.62
Location: 46 Prev | Next Part: 61647300 *Qty: 2 Lamp Unavailable
Location: 47 Prev | Next Part: 61539800 *Qty: 1 Magnetic switch Unavailable
Location: 48 Prev | Next Part: 61572900 *Qty: 1 Engine, sound insulation
For US
Unavailable
Location: 48 Prev | Next Part: 61541800 *Qty: 1 Engine, sound insulation
For CH - For basic version from car No 76393
Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
