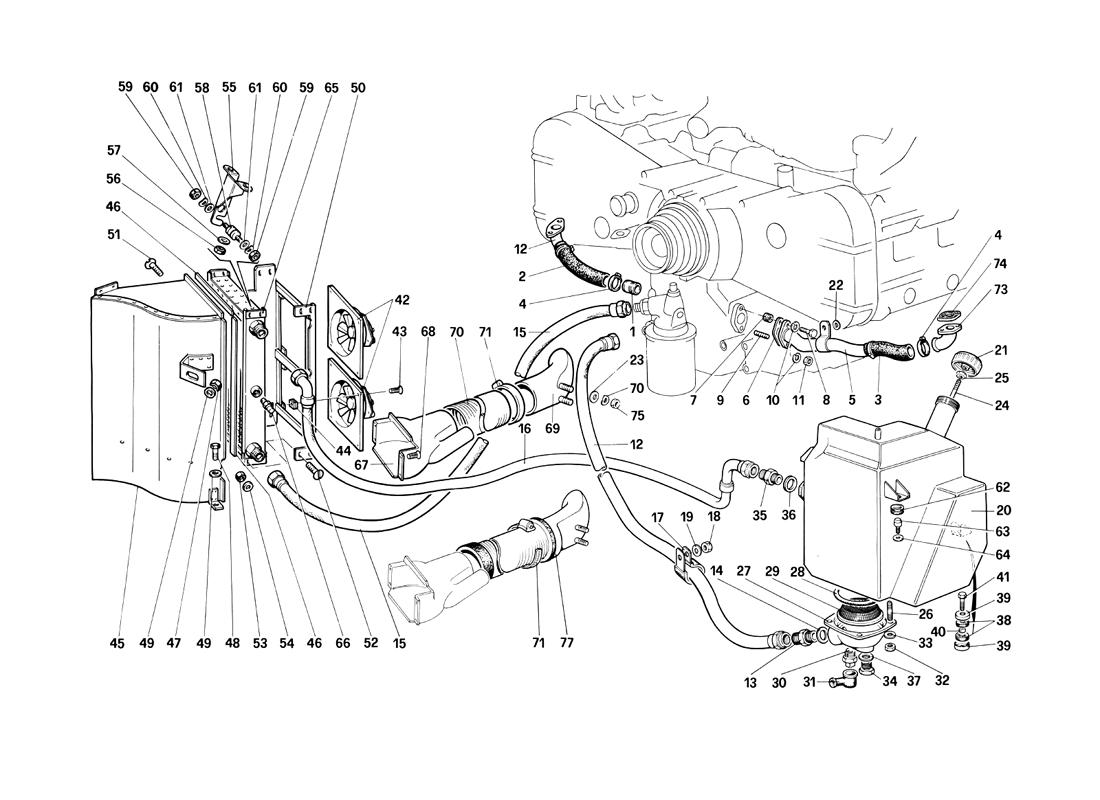

LUBRICATION

Location Part # Quantity* Description Price Add To Cart
1 104561 1 Union $14.21
2 122828 1 Sleeve $49.76
3 122829 1 Sleeve $56.33
4 12173090 4 Clamp Superseded
5 125900 1 L.H. cyl. head oil exhaust pipe $69.24
6 104558 1 Gasket
With Amianthus 		Superseded
6 134962 1 Gasket
Without Amianthus 		Superseded
7 13525570 1 Heli-coil on gearbox casing $2.86
8 10902321 1 Screw Superseded
9 11500221 1 Stud Unavailable
10 10516471 2 Washer Superseded
11 15896221 1 Nut Superseded
12 125475 1 Hose from reservoir to pump Unavailable
13 110203 2 Union $186.25
14 10303460 2 Gasket $2.27
15 124169 1 Hose from pump to radiator $581.33
16 125903 1 Hose from radiator to reservoir Unavailable
17 106195 1 Clamp $80.67
18 12574211 1 Nut Superseded
19 14496401 1 Washer Superseded
20 125517 1 Oil reservoir $1,346.91
21 139648 1 Plug Superseded
22 14496521 1 Washer Unavailable
23 12643701 4 Washer Superseded
24 139646 1 Oil dip stick $39.14
25 15896211 1 Nut Superseded
26 11500421 4 Stud Superseded
27 125473 1 Oil suction fan Unavailable
28 125521 1 OR ring $13.84
29 100332 1 Oil suction filter $27.59
30 104628 1 Oil thermistor $115.59
31 107003 1 Protection (Jap Unavailable
32 12574211 4 Selflocking nut Superseded
33 12601271 4 Washer Superseded
34 10300711 1 Plug Superseded
35 109371 1 Union $307.34
36 10264660 1 Gasket $6.23
37 10257060 1 Gasket $0.90
38 107978 4 Rubber bushing $15.35
39 107979 4 Cup $14.90
40 107980 2 Bush $8.20
41 123029 2 Screw Unavailable
42 131510 2 Electric fan motor $180.32
43 15688078 8 Screw Superseded
44 60674700 13 Clip Unavailable
45 124180 1 Air conveyor $427.19
46 124200 1 Self-adhesive gasket $2.27
47 15896221 1 Nut Superseded
48 10902321 1 Screw Superseded
49 106850 2 Washer Superseded
50 124181 1 Electric fan hood $99.29
51 15688008 2 Screw $1.52
52 10902121 1 Screw Superseded
53 15896221 1 Nut Superseded
54 106850 1 Washer Superseded
55 123805 1 Bracket $143.44
56 12574221 2 Nut Superseded
57 12643701 2 Washer Superseded
58 102947 3 Vibration-damping pad $20.69
59 15896221 6 Nut Superseded
60 106850 6 Washer Superseded
61 12643701 8 Washer Superseded
62 10397480 1 Fair-lead $1.89
63 125708 1 Pin Unavailable
64 108242 1 Washer Unavailable
65 123276 1 Oil radiator $1,538.56
66 123277 1 Thermal switch for fan $243.74
67 124191 1 R.H. conveyor For brakes $336.63
67 124192 1 L.H. conveyor for brakes $336.63
68 15688007 4 Screw $0.90
69 124943 2 Rear conveyor
Until car no. 81892 		$421.96
70 124941 1 LH.hose
Until car no. 81892 		$142.63
70 124940 1 R.H.hose
Until car no. 81892 		Unavailable
71 12174990 4 Clamp $1.89
72 122826 1 R.H. cylinder head oil exhaust port Unavailable
73 122827 1 L.H. cylinder head oil exhaust port $30.94
74 134953 2 Gasket
Without Amianthus 		Superseded
74 122823 2 Gasket
With Amianthus 		Superseded
75 15896221 4 Nut Superseded
76 106850 4 Washer Superseded
77 139739 1 R.H. rear conveyor
Starting from car no. 81893 		$63.52
77 139740 1 L.H. rear conveyor
Starting from car no. 81893 		Superseded

* Quantity shown indicates the number of pieces used in the diagram.
