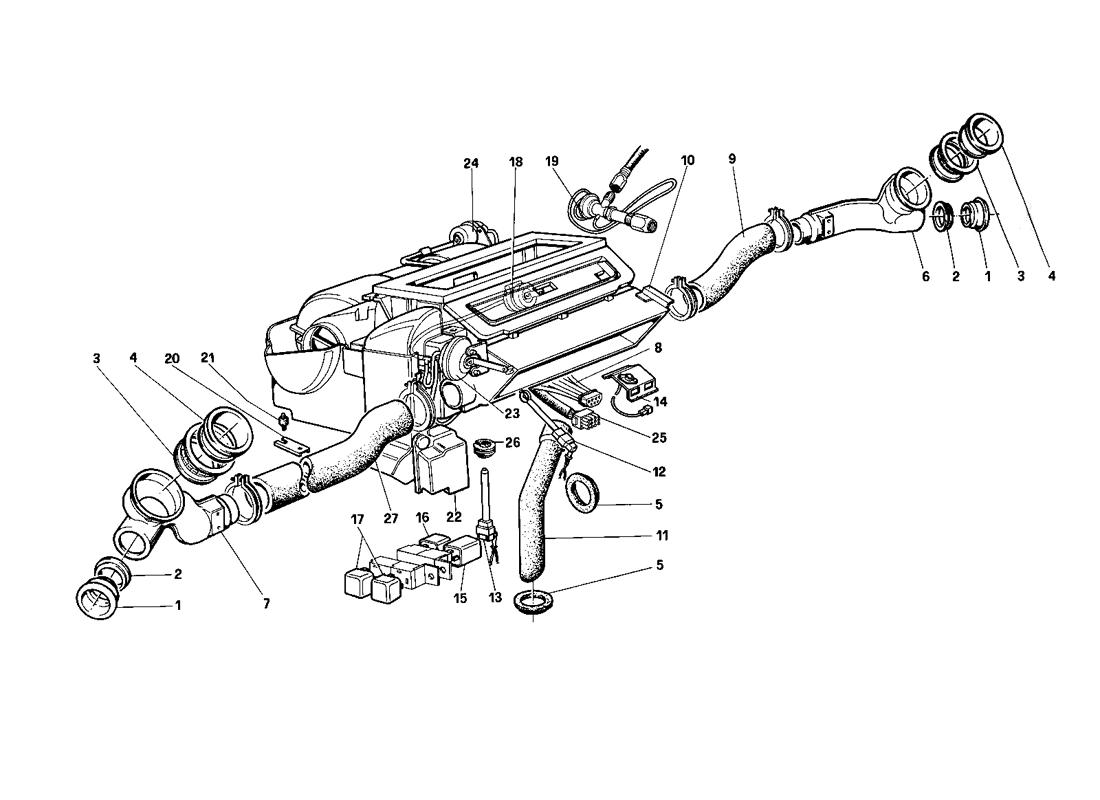

HEATER UNIT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61528300 *Qty: 2 Air duct gasket Unavailable
Location: 2 Prev | Next Part: 61503600 *Qty: 2 Frame for gasket Unavailable
Location: 3 Prev | Next Part: 61528500 *Qty: 2 Air vent frame ring $6.09
Location: 4 Prev | Next Part: 61528600 *Qty: 2 Air vent $20.96
Location: 5 Prev | Next Part: 61528700 *Qty: 2 Gasket for water outlet pipe $1.54
Location: 6 Prev | Next Part: 61528800 *Qty: 1 R.H. air duct
For LHD
$105.67
Location: 6 Prev | Next Part: 61535500 *Qty: 1 R.H. air duct
For RHD
$96.46
Location: 7 Prev | Next Part: 61528900 *Qty: 1 L.H. air duct
For LHD
$105.67
Location: 7 Prev | Next Part: 61535600 *Qty: 1 L.H. air duct
For RHD
$96.46
Location: 8 Prev | Next Part: 61539700 *Qty: 1 Connection for vacuum pipe Unavailable
Location: 9 Prev | Next Part: 61559100 *Qty: 1 R.H. union from heater air vent $203.38
Location: 10 Prev | Next Part: 134131 *Qty: 1 Air conditioner
for LHD - Starting from car No 73497
$2,606.11
Location: 10 Prev | Next Part: 134143 *Qty: 1 Air conditioner
For RHD - Starting from car No 73497
$2,704.55
Location: 10 Prev | Next Part: 60955900 *Qty: 1 Air conditioner
For LHD - Until car no 73495
Unavailable
Location: 10 Prev | Next Part: 61716800 *Qty: 1 Air conditioner
For RHD - Until car no 73495
$3,771.11
Location: 11 Prev | Next Part: 61529300 *Qty: 1 Condensate drain pipe $29.66
Location: 12 Prev | Next Part: 61079600 *Qty: 1 Air temperature sensor Unavailable
Location: 13 Prev | Next Part: 62341000 *Qty: 1 Cooler temperature sensor $256.59
Location: 14 Prev | Next Part: 127014 *Qty: 1 Power transistor $102.37
Location: 15 Prev | Next Part: 123509 *Qty: 1 Timer $137.32
Location: 16 Prev | Next Part: 62478900 *Qty: 1 Control relay $9.40
Location: 17 Prev | Next Part: 40130007 *Qty: 1 Control switch relay $49.61
Location: 18 Prev | Next Part: 61268000 *Qty: 1 Interior actuator $20.45
Location: 19 Prev | Next Part: 61742600 *Qty: 1 Expansion valve $60.04
Location: 20 Prev | Next Part: 60726800 *Qty: 2 Air conditioner assembly lower bracket $11.99
Location: 21 Prev | Next Part: 102947 *Qty: 2 Anti-shaker support $16.25
Location: 22 Prev | Next Part: 125448 *Qty: 1 L.H. air duct with actuator
For RHD
$169.70
Location: 22 Prev | Next Part: 124037 *Qty: 1 R.H. air duct with actuator
For LHD
$334.97
Location: 22 Prev | Next Part: 125447 *Qty: 1 R.H. air duct with actuator
For RHD
$169.91
Location: 22 Prev | Next Part: 124038 *Qty: 1 L.H. air duct with actuator
For LHD
$140.82
Location: 23 Prev | Next Part: 60930700 *Qty: 1 Actuator for defroster cover $38.31
Location: 24 Prev | Next Part: 60930500 *Qty: 1 Actuator $50.28
Location: 25 Prev | Next Part: 124036 *Qty: 1 Cable for air conditioner assembly $58.18
Location: 26 Prev | Next Part: 61086200 *Qty: 1 Gasket $2.04
Location: 27 Prev | Next Part: 61559200 *Qty: 1 L.H. union from heater air vent $203.38

* Quantity shown indicates the number of pieces used in the diagram.
