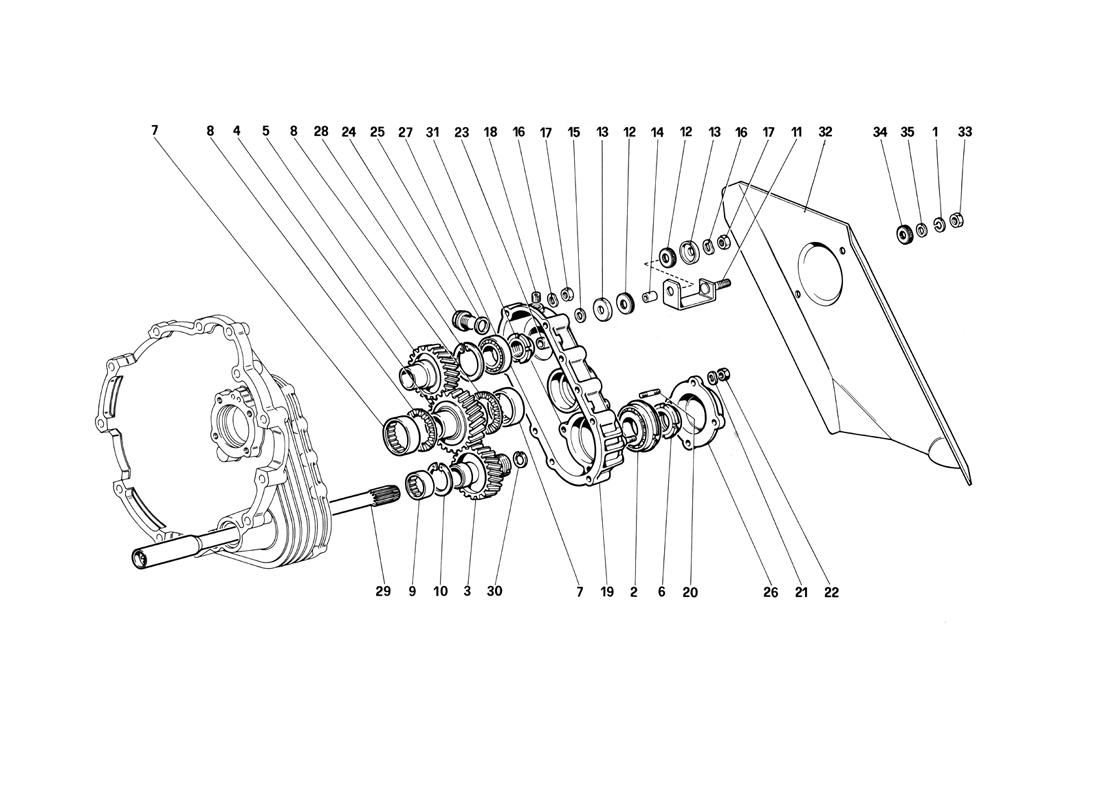

GEARBOX TRANSMISSION

GEARBOX TRANSMISSION

Location Part # Quantity* Description Price Add To Cart
1 106850 3 Spring washer Superseded
2 116063 1 Bearing
After exhaustion use no. 126223
Superseded
3 136327 1 Driven gear
Starting from car no. 76474
$1,626.74
3 124502 1 Driven gear
For C7
$2,711.23
3 125264 1 Driven gear
Until no. 76473
$1,306.06
3 125264 1 Driven gear
For US and SA - Until car no. 76473
$1,306.06
3 137626 1 Driven gear
For C8 and CAT.
$830.96
3 137629 1 Driven gear
For US and SA - Starting from car no. 76474
$1,189.99
4 137625 1 Intermediate gear $1,287.95
4 124501 1 Intermediate gear
For C7
$1,226.61
4 125263 1 Intermediate gear
For US and SA - Until car no. 76473
$996.69
4 125263 1 Intermediate gear
Until car no. 76473
$996.69
4 136326 1 Intermediate gear
Starting from car no. 76474
$1,347.39
4 137628 1 Intermediate gear
For US and SA - Starting from car no. 76474
$1,545.78
5 124500 1 Drive gear
ForC7
$2,018.53
5 125262 1 Drive gear
Until car no. 76473
$916.97
5 125262 1 Drive gear
For US and SA - Until car.no. 76473
$916.97
5 139210 1 Drive gear
For C8 starting from car no. 80446 - For CAT.
Unavailable
5 139208 1 Drive gear
Starting from car no. 80177
Unavailable
5 138384 1 Drive gear
Starting from car no. 80095
$1,677.92
5 137627 1 Drive gear
For US and SA - Starting from car no. 76474 to car no. 80176
$2,553.94
5 137622 1 Drive gear
For C8 until car no. 80445
$904.67
5 136325 1 Drive gear
Starting from car no. 76474 - to car no. 80094
$1,720.45
6 100729 1 Ring nut Superseded
7 104840 2 Roller bearing $70.97
8 104841 2 Axial bearing $12.00
9 103095 1 Roller bearing $62.04
10 103096 1 Lock ring $2.58
11 128500 3 Bracket $22.21
12 107978 6 Rubber busching $13.66
13 107979 6 Cup $13.44
14 107980 3 Distance tube $7.31
15 124801 3 Spacer $2.48
16 12601371 10 Washer Superseded
17 16100821 10 Nut Unavailable
18 10269450 1 Plug Unavailable
19 113114 1 Clutch housing cover $714.46
20 13543321 4 Stud Superseded
21 12601371 4 Washer Superseded
22 16100821 4 Nut Unavailable
23 109336 1 Oil recovery pipe $94.23
24 10275001 1 Oil filler plug Superseded
25 10263460 1 Gasket Superseded
26 102808 1 Small cover Superseded
27 112981 1 Bearing $321.98
28 11061076 1 Seeger ring $1.89
29 109343 1 Propeller shaft Superseded
30 11058275 1 Lock ring Unavailable
31 125500 1 Ring nut Superseded
32 128499 1 Protection plate
In alternative use no. 139470
$525.57
33 15896211 3 Nut Superseded
34 105924 3 Insulating washer
With Amianthus
Superseded
34 146712 3 Insulating washer
Without Amianthus
Unavailable
35 12643701 3 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
