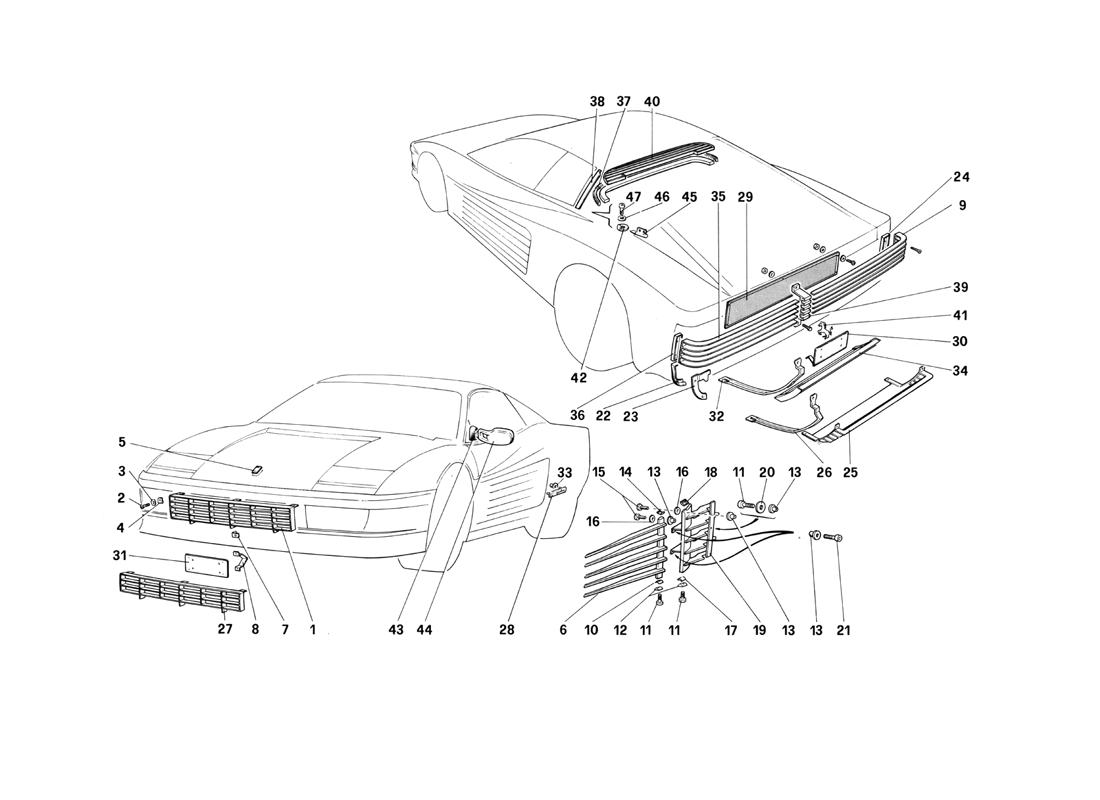

EXTERNAL FINISHING

Go to Split View

EXTERNAL FINISHING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61488200 *Qty: 1 Front grill
Not for CDN
Unavailable
Location: 2 Prev | Next Part: 15644101 *Qty: 3 Screw $1.00
Location: 3 Prev | Next Part: 10519301 *Qty: 3 Washer Unavailable
Location: 4 Prev | Next Part: 14189476 *Qty: 3 Fixing spring Unavailable
Location: 5 Prev | Next Part: 60795400 *Qty: 1 Front ornament $203.99
Location: 6 Prev | Next Part: 61575300 *Qty: 1 Right door grill
From car No 80974
$2,231.29
Location: 6 Prev | Next Part: 61488300 *Qty: 1 Right door grill
Until car No 80973
$2,719.32
Location: 6 Prev | Next Part: 61575400 *Qty: 1 Left door grill
From car No 80974
$1,896.60
Location: 6 Prev | Next Part: 61488400 *Qty: 1 Left door grill
Until car No 80973
$2,719.32
Location: 7 Prev | Next Part: 61489500 *Qty: 2 Licence plate support bracket
For US
Unavailable
Location: 8 Prev | Next Part: 61488600 *Qty: 2 Licence plate support bracket
For F - l
$45.28
Location: 9 Prev | Next Part: 61490600 *Qty: 1 Rear R.H. grill Unavailable
Location: 10 Prev | Next Part: 61579600 *Qty: 1 Lower pad fixing right door grill
From car No .............
Unavailable
Location: 10 Prev | Next Part: 61488700 *Qty: 1 Lower pad fixing right door grill
Until car No .............
$1.29
Location: 10 Prev | Next Part: 61488800 *Qty: 1 Lower pad fixing left door grill
Until car No .............
$1.29
Location: 10 Prev | Next Part: 61579700 *Qty: 1 Lower pad fixing left door grill
From car No .............
Unavailable
Location: 11 Prev | Next Part: 13310811 *Qty: 6 Screw Unavailable
Location: 12 Prev | Next Part: 61488900 *Qty: 4 Special washer Unavailable
Location: 13 Prev | Next Part: 15627611 *Qty: 10 Rivet Unavailable
Location: 14 Prev | Next Part: 61579400 *Qty: 1 Upper pad fixing right door grill
From car No .............
$37.65
Location: 14 Prev | Next Part: 61489000 *Qty: 1 Upper pad fixing left door grill
Until car No .............
$1.29
Location: 14 Prev | Next Part: 61489100 *Qty: 1 Upper pad fixing right door grill
Until car No .............
$2.24
Location: 14 Prev | Next Part: 61579500 *Qty: 1 Upper pad fixing left door grill
From car No .............
Unavailable
Location: 15 Prev | Next Part: 13274411 *Qty: 4 Screw Unavailable
Location: 16 Prev | Next Part: 12624101 *Qty: 4 Washer Unavailable
Location: 17 Prev | Next Part: 61489300 *Qty: 1 Lower pad fixing left side grill Unavailable
Location: 17 Prev | Next Part: 61489200 *Qty: 1 Lower pad fixing right side grill Unavailable
Location: 18 Prev | Next Part: 61489400 *Qty: 1 Upper pad fixing right side grill Unavailable
Location: 18 Prev | Next Part: 61489500 *Qty: 1 Upper pad fixing left side grill Unavailable
Location: 19 Prev | Next Part: 61489600 *Qty: 1 Right side grill $2,147.99
Location: 19 Prev | Next Part: 61489700 *Qty: 1 Left side grill Unavailable
Location: 20 Prev | Next Part: 12646801 *Qty: 2 Washer $1.45
Location: 21 Prev | Next Part: 13311011 *Qty: 4 Screw Unavailable
Location: 22 Prev | Next Part: 61547900 *Qty: 1 Right pad
For CDN
$21.21
Location: 22 Prev | Next Part: 61489800 *Qty: 1 Right pad
Not for CDN
$47.31
Location: 22 Prev | Next Part: 61548000 *Qty: 1 Left pad
For CDN
$21.21
Location: 22 Prev | Next Part: 61489900 *Qty: 1 Left pad
Not for CDN
$54.73
Location: 23 Prev | Next Part: 61490000 *Qty: 1 Right plate for pad $155.55
Location: 23 Prev | Next Part: 61490100 *Qty: 1 Left plate for pad $155.55
Location: 24 Prev | Next Part: 61490800 *Qty: 1 Right gasket Unavailable
Location: 25 Prev | Next Part: 61531800 *Qty: 1 Rear underbody grill
For US-SA-CH-CAT
Unavailable
Location: 26 Prev | Next Part: 61531900 *Qty: 1 L.H. grill bracket
For US-SA-CH-CAT
Unavailable
Location: 26 Prev | Next Part: 61532000 *Qty: 1 R.H. grill bracket
For US-SA-CH-CAT
Unavailable
Location: 27 Prev | Next Part: 61547800 *Qty: 1 Front grill
For CDN
$2,537.11
Location: 28 Prev | Next Part: 61490200 *Qty: 2 Pininfarina ornament Unavailable
Location: 29 Prev | Next Part: 61490300 *Qty: 1 Net for engine air exhaust Unavailable
Location: 30 Prev | Next Part: 61537200 *Qty: 1 Rear plate holder
For US - SA
$94.45
Location: 30 Prev | Next Part: 61537100 *Qty: 1 Rear plate holder
Not for US - SA
$252.15
Location: 31 Prev | Next Part: 61555900 *Qty: 1 Front plate holder
CDN
$56.17
Location: 31 Prev | Next Part: 61537000 *Qty: 1 Front plate holder
GEE - CH
$84.50
Location: 31 Prev | Next Part: 61536900 *Qty: 1 Front plate holder
Italia - F - US
Unavailable
Location: 32 Prev | Next Part: 61532000 *Qty: 1 LH grill bracket
From car No 82983 and for US - SA - CH - CAT
Unavailable
Location: 32 Prev | Next Part: 61531900 *Qty: 1 RH grill bracket
From car No 82983 and for US - SA - CH - CAT
Unavailable
Location: 32 Prev | Next Part: 61529600 *Qty: 1 RH grill bracket
Until car No 82982 - Not for US - SA - CH - CAT
$93.33
Location: 32 Prev | Next Part: 61529700 *Qty: 1 LH grill bracket
Until car No 82982 - Not for US - SA - CH - CAT
$93.33
Location: 33 Prev | Next Part: 61577300 *Qty: 4 Pininfarina name Unavailable
Location: 34 Prev | Next Part: 61529500 *Qty: 1 Rear underbody grill
Not for US - SA - CH - CAT
Superseded
Location: 35 Prev | Next Part: 61490500 *Qty: 1 Rear L.H. grill Unavailable
Location: 36 Prev | Next Part: 61490700 *Qty: 1 Pad for rear left grill Unavailable
Location: 37 Prev | Next Part: 61499900 *Qty: 1 Undergrill gasket Unavailable
Location: 38 Prev | Next Part: 61491100 *Qty: 2 Gasket $18.77
Location: 39 Prev | Next Part: 61490900 *Qty: 1 Grill union Unavailable
Location: 40 Prev | Next Part: 61491000 *Qty: 1 Under rear window grill $650.63
Location: 41 Prev | Next Part: 61766400 *Qty: 1 Horse
Until exhaustion use PN 62984300
Superseded
Location: 42 Prev | Next Part: 61577000 *Qty: 1 R.H. bracket $20.24
Location: 42 Prev | Next Part: 61576900 *Qty: 1 L.H. bracket $20.24
Location: 43 Prev | Next Part: 61574600 *Qty: 1 L.H. cover - LHD
From car 78848
Unavailable
Location: 43 Prev | Next Part: 61575100 *Qty: 1 R.H. cover - RHD
From car 78848
$31.15
Location: 43 Prev | Next Part: 61568700 *Qty: 1 R.H. cover - RHD
Until car 78847
$20.60
Location: 43 Prev | Next Part: 61549900 *Qty: 1 R.H. cover - LHD
Until car 78847
Unavailable
Location: 43 Prev | Next Part: 61574500 *Qty: 1 R.H. cover - LHD
From car 78848
$26.14
Location: 43 Prev | Next Part: 61568800 *Qty: 1 L.H. cover - RHD
Until car 78847
$20.60
Location: 43 Prev | Next Part: 61575200 *Qty: 1 L.H. cover - RHD
From car 78848
$31.15
Location: 43 Prev | Next Part: 61550000 *Qty: 1 L.H. cover - LHD
Until car 78847
Unavailable
Location: 44 Prev | Next Part: 61555300 *Qty: 1 RH outside mirror - AUS
Until car 78847
Unavailable
Location: 44 Prev | Next Part: 61574800 *Qty: 1 LH outside mirror - AUS
From car 78848
$947.85
Location: 44 Prev | Next Part: 61567800 *Qty: 1 LH flat glass assy.
For US
$103.62
Location: 44 Prev | Next Part: 61567900 *Qty: 2 Motor assy, for ext. mirror Unavailable
Location: 44 Prev | Next Part: 61575000 *Qty: 1 LH outside mirror GB-ZA
From car 78848
$954.29
Location: 44 Prev | Next Part: 61574200 *Qty: 1 LH outside mirror - US
From car 78848
$2,027.27
Location: 44 Prev | Next Part: 61555600 *Qty: 1 LH outside mirror GB-ZA
Until car 78847
$786.98
Location: 44 Prev | Next Part: 61567500 *Qty: 1 RH curved glass assy.
Not for US
$170.81
Location: 44 Prev | Next Part: 61549800 *Qty: 1 LH outside mirror - US
Until car 78847
Unavailable
Location: 44 Prev | Next Part: 61567700 *Qty: 1 RH flat glass assy.
For US
$116.18
Location: 44 Prev | Next Part: 61550200 *Qty: 1 LH outside mirror - LHD
Until car 78847 - Not for US
Unavailable
Location: 44 Prev | Next Part: 61555400 *Qty: 1 LH outside mirror - AUS
Until car 78847
Unavailable
Location: 44 Prev | Next Part: 61574900 *Qty: 1 RH outside mirror GB-ZA
From car 78848
$954.29
Location: 44 Prev | Next Part: 61574700 *Qty: 1 RH outside mirror - AUS
From car 78848
$947.85
Location: 44 Prev | Next Part: 61555500 *Qty: 1 RH outside mirror GB-ZA
Until car 78847
$786.98
Location: 44 Prev | Next Part: 61549700 *Qty: 1 RH outside mirror - US
Until car 78847
$1,049.79
Location: 44 Prev | Next Part: 61574100 *Qty: 1 RH outside mirror - US
From car 78848
$2,027.27
Location: 44 Prev | Next Part: 61567600 *Qty: 1 LH curved glass assy.
Not for US
$331.30
Location: 44 Prev | Next Part: 61550100 *Qty: 1 RH outside mirror - LHD
Until car 78847 - Not for US
$1,087.34
Location: 44 Prev | Next Part: 61574300 *Qty: 1 RH outside mirror - LHD
From car 78848 - Not for US
$842.31
Location: 44 Prev | Next Part: 61574400 *Qty: 1 LH outside mirror - LHD
From car 78848 - Not for US
Unavailable
Location: 45 Prev | Next Part: 61576700 *Qty: 1 RH pin $45.48
Location: 45 Prev | Next Part: 61576800 *Qty: 1 LH pin $45.48
Location: 46 Prev | Next Part: 61577200 *Qty: 2 Washer Unavailable
Location: 47 Prev | Next Part: 61577100 *Qty: 2 Screw Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
