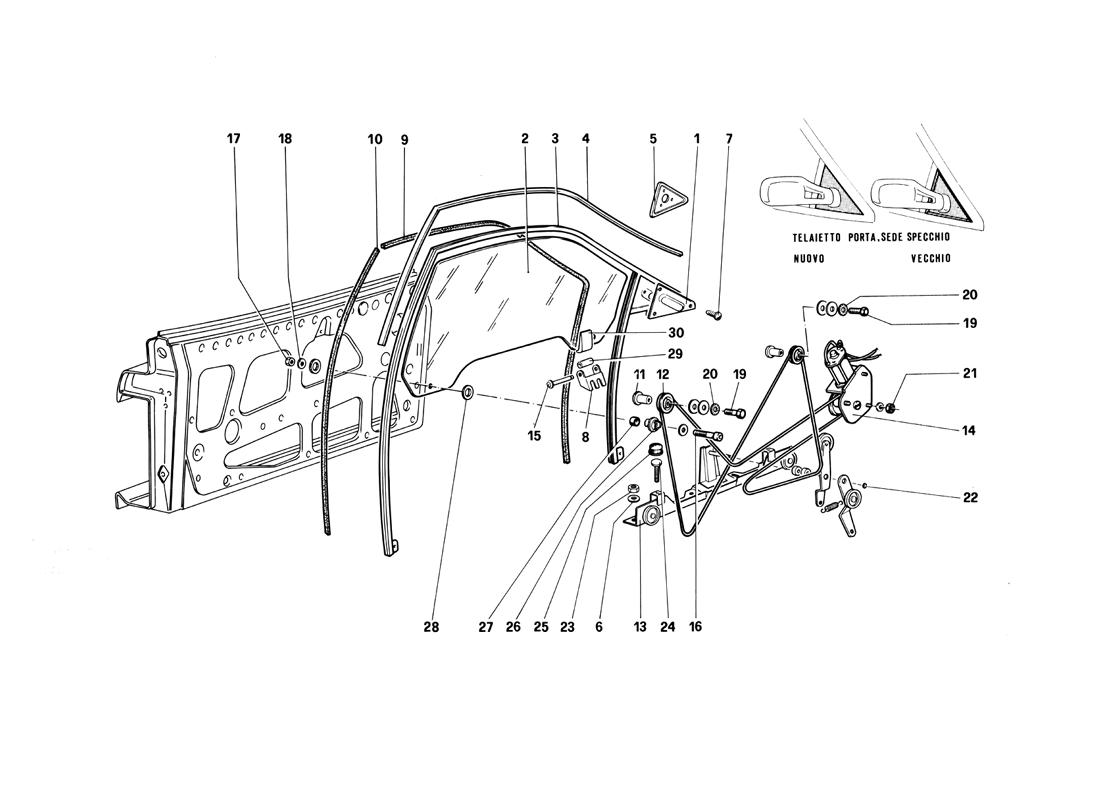

DOOR - POWER WINDOW

Go to Split View

DOOR - POWER WINDOW

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61568400 *Qty: 1 L.H. cover $65.88
Location: 1 Prev | Next Part: 61568300 *Qty: 1 R.H. cover $74.94
Location: 2 Prev | Next Part: 61533600 *Qty: 1 L.H. glass $748.91
Location: 2 Prev | Next Part: 61533700 *Qty: 1 R.H glass Call
Location: 3 Prev | Next Part: 61119000 *Qty: 1 L.H. frame work
Until car No 78847
$45.06
Location: 3 Prev | Next Part: 61548900 *Qty: 1 R.H. frame work
Until car No 78847
$2,070.74
Location: 3 Prev | Next Part: 61579800 *Qty: 1 R.H. frame work
From car 78848
Call
Location: 3 Prev | Next Part: 61571900 *Qty: 1 L.H. frame work
From car 78848
Call
Location: 4 Prev | Next Part: 61548600 *Qty: 1 Gasket for LH door
From car 78848
$237.43
Location: 4 Prev | Next Part: 61548500 *Qty: 1 Gasket for RH door
From car 78848
$237.43
Location: 5 Prev | Next Part: 61566600 *Qty: 1 Support for RH external rear view mirror
Until car No 78847
$182.71
Location: 5 Prev | Next Part: 61566700 *Qty: 1 Support for LH external rear view mirror
Until car No 78847
$425.68
Location: 5 Prev | Next Part: 61574000 *Qty: 1 Support for LH external rear view mirror
From car 78848
$340.17
Location: 5 Prev | Next Part: 61573900 *Qty: 1 Support for RH external rear view mirror
From car 78848
$340.17
Location: 6 Prev | Next Part: 12640601 *Qty: 6 Washer Superseded
Location: 7 Prev | Next Part: 61568600 *Qty: 6 Bush Call
Location: 8 Prev | Next Part: 61111900 *Qty: 2 Bracket $17.63
Location: 9 Prev | Next Part: 60509800 *Qty: 2 Run channel Call
Location: 10 Prev | Next Part: 61509900 *Qty: 2 Rear run channel $106.74
Location: 11 Prev | Next Part: 61510000 *Qty: 6 Sheave pin $1.66
Location: 12 Prev | Next Part: 61510100 *Qty: 6 Sheave $94.50
Location: 13 Prev | Next Part: 61510300 *Qty: 1 Left lower crosspiece $202.68
Location: 13 Prev | Next Part: 61510200 *Qty: 1 Right lower crosspiece $122.40
Location: 14 Prev | Next Part: 61510500 *Qty: 1 Left window regulator Call
Location: 14 Prev | Next Part: 61510400 *Qty: 1 Right window regulator Call
Location: 15 Prev | Next Part: 61112000 *Qty: 2 Pin $5.96
Location: 16 Prev | Next Part: 14307920 *Qty: 4 Screw Call
Location: 17 Prev | Next Part: 14084211 *Qty: 4 Nut $0.90
Location: 18 Prev | Next Part: 12640601 *Qty: 4 Washer Superseded
Location: 19 Prev | Next Part: 10902221 *Qty: 4 Screw $1.27
Location: 20 Prev | Next Part: 10615471 *Qty: 4 Washer $0.90
Location: 21 Prev | Next Part: 14084111 *Qty: 6 Nut $0.90
Location: 22 Prev | Next Part: 16160976 *Qty: 2 Spring ring $0.90
Location: 23 Prev | Next Part: 14084211 *Qty: 6 Nut $0.90
Location: 24 Prev | Next Part: 61564600 *Qty: 4 Bolt $0.90
Location: 25 Prev | Next Part: 61564700 *Qty: 4 Pad $1.60
Location: 26 Prev | Next Part: 61564400 *Qty: 4 Bush $1.01
Location: 27 Prev | Next Part: 61564800 *Qty: 4 Rubber bush $0.90
Location: 28 Prev | Next Part: 61564500 *Qty: 8 Rubberwasher $0.90
Location: 29 Prev | Next Part: 61111700 *Qty: 2 Roller $5.78
Location: 30 Prev | Next Part: 61038000 *Qty: 2 Slope guiding glass roller $5.96

* Quantity shown indicates the number of pieces used in the diagram.
