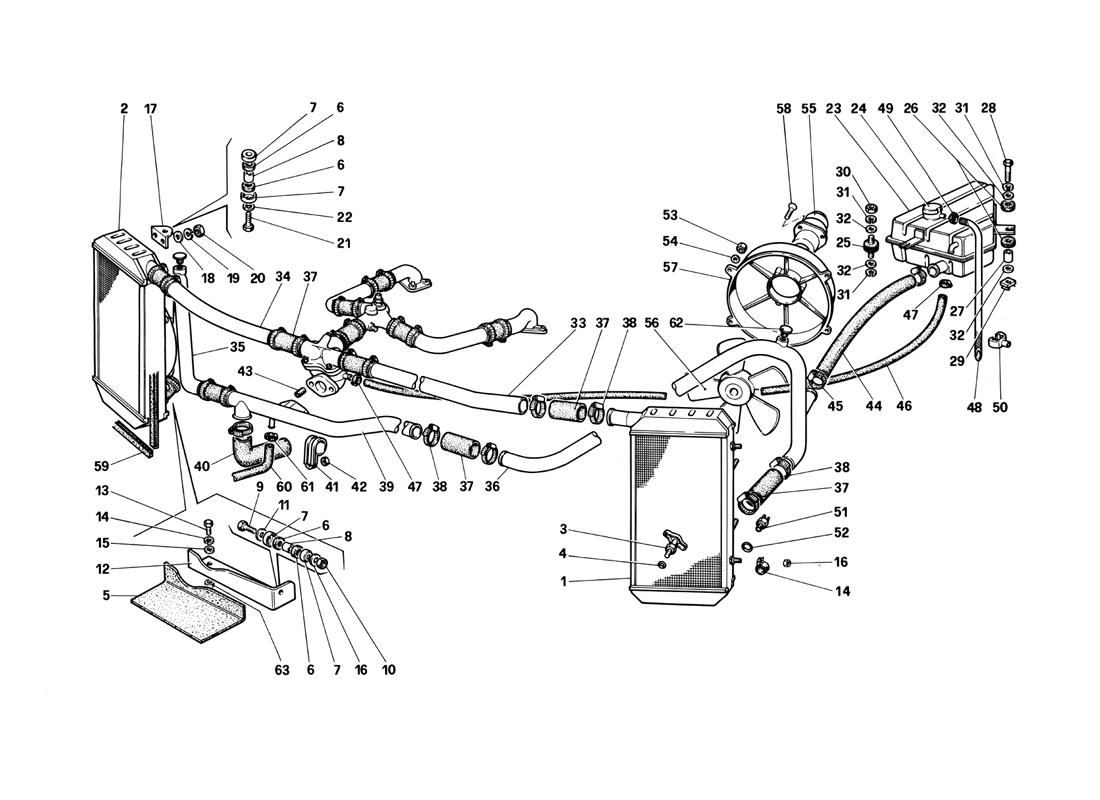

COOLING SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 122966 1 L.H. radiator $1,846.60
2 122967 1 R.H. radiator $2,356.81
3 101488 2 Water drain cock $212.72
4 101496 2 Gasket Unavailable
5 135980 1 R.H. rubber shim $33.74
5 118184 1 L.H. rubber shim $75.64
6 107978 8 Pad for radiator fitting $13.66
7 107979 8 Cup $13.44
8 107980 4 Spacer $7.31
9 16043921 3 Screw Superseded
10 16104411 3 Nut $0.90
11 10519601 1 Washer Superseded
12 116976 4 L.H. lower bracket Unavailable
12 116977 1 R.H. lower bracket $21.50
13 10902221 2 Screw Unavailable
14 10441890 4 Clamp $0.90
15 12643701 2 Washer Superseded
16 12574211 2 Nut Superseded
17 122968 4 Upper bracket, movable $40.83
18 12643701 4 Flat washer Superseded
19 106850 4 Spring washer Superseded
20 15896211 4 Nut Superseded
21 16135921 2 Screw $3.26
22 106852 2 Washer Superseded
23 124264 1 Reservoir for radiator $886.83
24 101499 1 Reservoir cap Superseded
25 102947 1 Vibration-damping support $17.42
26 103549 2 Vibration-damping bushing $1.50
27 103550 2 Spacer $6.82
28 11002621 2 Screw Unavailable
29 61859100 2 Caged nut $316.25
30 15896211 2 Nut Superseded
31 106850 4 Spring washer Superseded
32 12643701 6 Flat washer Superseded
33 124279 1 Pipe to L.H. radiator $36.15
34 124278 1 Pipe to R.H. radiator $41.84
35 125025 1 Pipe from R.H. radiator to pump $351.29
36 129924 1 Pipe from L.H. radiator to pump $256.19
37 122969 10 Sleeve $31.59
38 12174090 18 Clamp Superseded
39 124280 1 Intermediate pipe
After exhaustion use no. 129925 		Unavailable
40 122944 1 Sleeve $98.07
41 106195 4 Pipe supporting clamp $72.35
42 12574211 4 Nut Superseded
43 13525470 2 Heli-coil Unavailable
44 125088 1 Feeder hose $78.18
45 12179990 2 Clamp Superseded
46 127218 1 Breather hose Unavailable
47 12179590 2 Clamp Superseded
48 126291 1 Breather hose on reservoir cap $15.71
49 13423379 1 Clamp Unavailable
50 61130500 2 Hose supporting bracket Unavailable
51 101507 1 Thermocontact Superseded
52 101508 1 Gasket $1.40
53 12575411 8 Nut Superseded
54 12643701 8 Flat washer Superseded
55 137298 2 Electric fan motor
From car no. 76525 		$462.60
55 131410 2 Electric fan motor
Until car no. 76524 		Superseded
56 137299 2 5 - blade fan $176.14
57 140618 2 Conveyor $245.65
58 123298 6 Screw Unavailable
59 125010 2 Self-adhesive gasket Unavailable
60 124029 1 Hose from water valve to engine $200.28
61 12179990 1 Clamp Superseded
62 127557 2 Drain screw Unavailable
63 12574211 4 Nut Superseded

* Quantity shown indicates the number of pieces used in the diagram.
