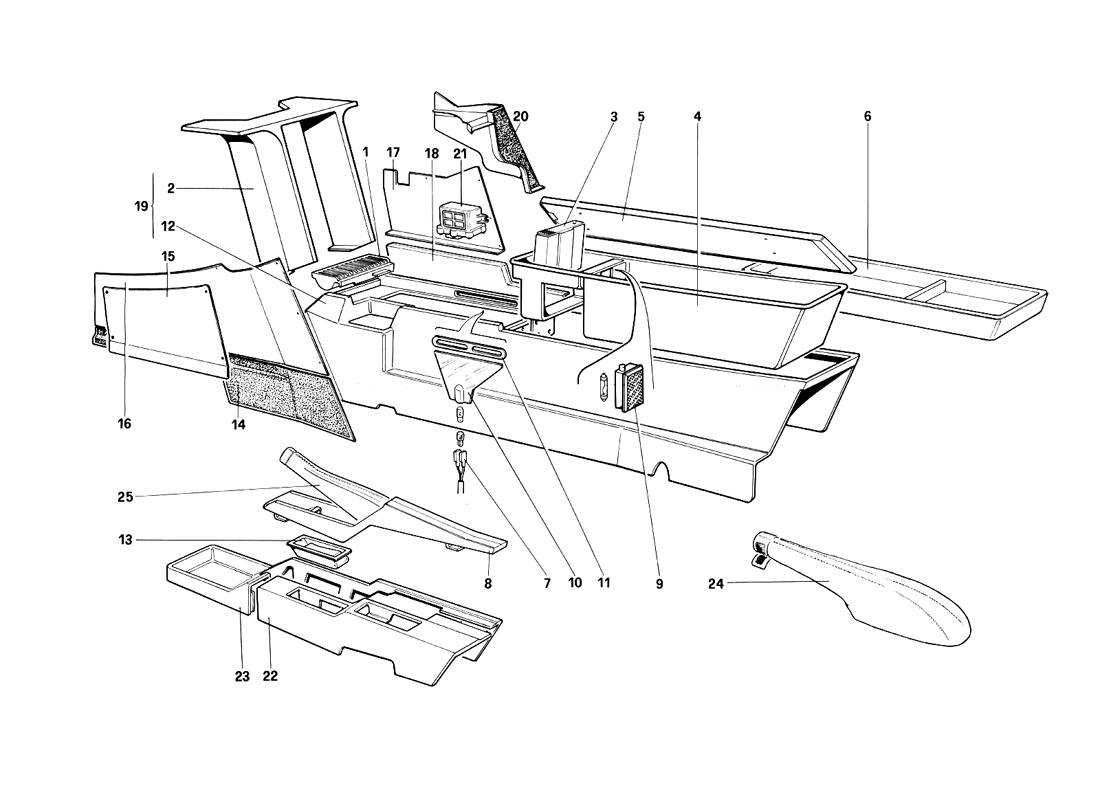

CENTRAL TUNNEL (NOT FOR US VERSION)

Go to Split View

CENTRAL TUNNEL (NOT FOR US VERSION)

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61524900 *Qty: 1 Money case Unavailable
Location: 2 Prev | Next Part: 61534700 *Qty: 1 Central console
For RHD
$599.99
Location: 2 Prev | Next Part: 61525000 *Qty: 2 Central console
For LHD
$1,199.08
Location: 3 Prev | Next Part: 61525100 *Qty: 6 Cassette box Unavailable
Location: 4 Prev | Next Part: 61530400 *Qty: 1 Glove box
For RHD
$179.83
Location: 4 Prev | Next Part: 61525200 *Qty: 1 Glove box
For LHD
Unavailable
Location: 5 Prev | Next Part: 61525300 *Qty: 1 Glove box cover
For LHD
$825.48
Location: 5 Prev | Next Part: 61534900 *Qty: 1 Glove box cover
For RHD
$635.90
Location: 6 Prev | Next Part: 61525400 *Qty: 1 Glove box for passenger $764.72
Location: 7 Prev | Next Part: 124376 *Qty: 1 Cables for tunnel lamp $3.50
Location: 8 Prev | Next Part: 61563800 *Qty: 1 Side console
For LHD - 1st type
$345.10
Location: 8 Prev | Next Part: 61563900 *Qty: 1 Side console
For RHD - 1st type
$357.97
Location: 9 Prev | Next Part: 61540300 *Qty: 1 Glove box lamp Unavailable
Location: 10 Prev | Next Part: 61651600 *Qty: 2 Glass $224.56
Location: 11 Prev | Next Part: 61525800 *Qty: 2 Glass frame $87.07
Location: 12 Prev | Next Part: 61534800 *Qty: 1 Tunnel
For RHD
$2,573.00
Location: 12 Prev | Next Part: 61525900 *Qty: 1 Tunnel
For LHD
$2,362.24
Location: 13 Prev | Next Part: 63011800 *Qty: 2 Handle for luggage and engine compartment lid opening $216.58
Location: 14 Prev | Next Part: 61530500 *Qty: 1 Carpet for lower panel
For LHD
$43.95
Location: 14 Prev | Next Part: 61564300 *Qty: 1 Lower complete panel (LH)
For RHD
$95.35
Location: 14 Prev | Next Part: 61564100 *Qty: 1 Lower complete panel (LH)
For LHD
$94.99
Location: 14 Prev | Next Part: 61567000 *Qty: 1 Carpet for LH lower panel
For RHD
Unavailable
Location: 15 Prev | Next Part: 61530700 *Qty: 1 Accelerator pedal protection f
For LHD
$49.92
Location: 16 Prev | Next Part: 61525600 *Qty: 1 LH panel
For LHD
$634.07
Location: 16 Prev | Next Part: 61535200 *Qty: 1 LH panel
For RHD
$457.36
Location: 17 Prev | Next Part: 61525500 *Qty: 1 R.H. panel
For LHD - Not for SA and J
$634.07
Location: 17 Prev | Next Part: 61535100 *Qty: 1 R.H. panel
For RHD
$457.36
Location: 17 Prev | Next Part: 61541700 *Qty: 1 R.H. panel
For SA and J
$346.01
Location: 18 Prev | Next Part: 61564000 *Qty: 1 Lower complete panel (RH)
For RHD
$98.65
Location: 18 Prev | Next Part: 61530600 *Qty: 1 Carpet for RH lower panel
For RHD
Unavailable
Location: 18 Prev | Next Part: 61566900 *Qty: 1 Carpet for RH lower panel
For LHD
Unavailable
Location: 18 Prev | Next Part: 61564200 *Qty: 1 Lower complete panel (RH)
For RHD
$95.35
Location: 19 Prev | Next Part: 61526000 *Qty: 1 Central console and tunnel
For LHD
$4,615.87
Location: 19 Prev | Next Part: 61526100 *Qty: 1 Central console and tunnel
For RHD
$2,687.07
Location: 20 Prev | Next Part: 61559300 *Qty: 1 Foot rest
For RHD
$168.24
Location: 20 Prev | Next Part: 61567100 *Qty: 1 Carpet for footrest Unavailable
Location: 21 Prev | Next Part: 129537 *Qty: 1 Tachometric switch with buzzer
For SA
$192.36
Location: 22 Prev | Next Part: 61579200 *Qty: 1 Handbrake outer console
RHD - 2nd type
$1,090.90
Location: 22 Prev | Next Part: 61566000 *Qty: 1 Handbrake outer console
RHD - 1st type
$1,135.59
Location: 22 Prev | Next Part: 61565800 *Qty: 1 Handbrake outer console
LHD -1st type
$1,129.15
Location: 22 Prev | Next Part: 61578700 *Qty: 1 Handbrake outer console
LHD -2nd type
Unavailable
Location: 23 Prev | Next Part: 61578500 *Qty: 1 Handbrake inner console
LHD - 2nd type
$718.74
Location: 23 Prev | Next Part: 61578800 *Qty: 1 Handbrake inner console
RHD - 2nd type
$817.73
Location: 23 Prev | Next Part: 61565900 *Qty: 1 Handbrake inner console
LHD - 1st type
$553.07
Location: 23 Prev | Next Part: 61566100 *Qty: 1 Handbrake inner console
RHD - 1st type
$850.31
Location: 24 Prev | Next Part: 61578600 *Qty: 1 Handbrake cover
For LHD - For 2nd type console
$148.72
Location: 24 Prev | Next Part: 61578900 *Qty: 1 Handbrake cover
For RHD - For 2nd type console
Unavailable
Location: 25 Prev | Next Part: 61569100 *Qty: 1 Handbrake covering
For 1st type console
$114.12

* Quantity shown indicates the number of pieces used in the diagram.
