Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61558000 *Qty: 1 Set of carpets for luggage compartment
LHD - Grey colour
$1,651.17
Location: 1 Prev | Next Part: 61570900 *Qty: 1 Set of carpets for luggage compartment
LHD - Black colour
$2,245.29
Location: 1 Prev | Next Part: 61558100 *Qty: 1 Set of carpets for luggage compartment
RHD - Grey colour
$990.35
Location: 1 Prev | Next Part: 61571000 *Qty: 1 Set of carpets for luggage compartment
RHD - Black colour
$1,211.54
Location: 1 Prev | Next Part: 61567300 *Qty: 1 Set of carpets for luggage compartment
RHD - Beaver colour
$982.45
Location: 1 Prev | Next Part: 61567200 *Qty: 1 Set of carpets for luggage compartment
LHD - Beaver colour
$1,172.67
Location: 1 Prev | Next Part: 61492400 *Qty: 1 Front carpet for luggage compartment $317.84
Location: 2 Prev | Next Part: 61492600 *Qty: 1 Rear carpet for luggage compartment -RHD Unavailable
Location: 2 Prev | Next Part: 61492500 *Qty: 1 Rear carpet for luggage compartment -LHD Unavailable
Location: 3 Prev | Next Part: 61492700 *Qty: 1 Spare wheel covering carpet Unavailable
Location: 4 Prev | Next Part: 61492900 *Qty: 1 Sound, insulation for front right floor - RHD $189.29
Location: 4 Prev | Next Part: 61492800 *Qty: 1 Sound insulation for front right floor - LHD $189.29
Location: 5 Prev | Next Part: 61493100 *Qty: 1 Sound insulation for front left floor - RHD $77.13
Location: 5 Prev | Next Part: 61493000 *Qty: 1 Sound insulation for front left floor - LHD $234.89
Location: 6 Prev | Next Part: 61493300 *Qty: 1 Sound insulation for central right floor-RHD $87.66
Location: 6 Prev | Next Part: 61493200 *Qty: 1 Sound insulation for central right floor-LHD $72.92
Location: 7 Prev | Next Part: 61493500 *Qty: 1 Sound insulation for central left floor-RHD $99.92
Location: 7 Prev | Next Part: 61493400 *Qty: 1 Sound insulation for central left floor-LHD $265.57
Location: 8 Prev | Next Part: 61493700 *Qty: 1 Sound insulation for, rear central right floor, RHD $19.27
Location: 8 Prev | Next Part: 61493600 *Qty: 1 Sound insulation for rear central right floor, LHD $19.27
Location: 9 Prev | Next Part: 61493800 *Qty: 1 Sound insulation for rear central left floor, LHD $24.21
Location: 9 Prev | Next Part: 61493900 *Qty: 1 Sound insulation for rear central left floor, RHD $24.21
Location: 10 Prev | Next Part: 61494000 *Qty: 1 Thermal insulation for rear panel $237.35
Location: 11 Prev | Next Part: 61494300 *Qty: 1 Sound insulation for rear side right floor RHD $48.71
Location: 11 Prev | Next Part: 61494200 *Qty: 1 Sound insulation for rear side right floor, LHD $35.08
Location: 12 Prev | Next Part: 61494400 *Qty: 1 Sound insulation for rear side left floor LHD $24.55
Location: 12 Prev | Next Part: 61494500 *Qty: 1 Sound insulation for rear side left floor RHD $49.63
Location: 13 Prev | Next Part: 61494600 *Qty: 1 Thermal insulation for rear window plane $305.00
Location: 14 Prev | Next Part: 61494700 *Qty: 1 Sound insulation for tunnel $174.95
Location: 15 Prev | Next Part: 61494800 *Qty: 1 Sound insulation for shiel panel $236.64
Location: 16 Prev | Next Part: 61494900 *Qty: 1 Sound insulation for right rear side $31.39
Location: 17 Prev | Next Part: 61495000 *Qty: 1 Sound insulation for left rear side $31.39
Location: 18 Prev | Next Part: 61495100 *Qty: 1 Sound insulation for rear window plane $165.67
Location: 19 Prev | Next Part: 61495200 *Qty: 1 Sound insulation for rear window plane $20.53
Location: 20 Prev | Next Part: 61495300 *Qty: 1 Sound insulation for left rear pillar $20.53
Location: 21 Prev | Next Part: 61531500 *Qty: 1 Front compartment, rear covering carpet (RHD) Unavailable
Location: 21 Prev | Next Part: 61531400 *Qty: 1 Front compartment, rear covering carpet (LHD) Unavailable
Location: 22 Prev | Next Part: 61532600 *Qty: 1 Rear thermal insulation
For US - CDN - SA - J
Unavailable
Location: 22 Prev | Next Part: 61559600 *Qty: 1 Rear thermal insulation
For CH - CAT
$146.27
Location: 23 Prev | Next Part: 132662 *Qty: 1 R.H. plate
For CH
$414.12
Location: 24 Prev | Next Part: 132660 *Qty: 1 Central plate
For CH
$828.24
Location: 25 Prev | Next Part: 132661 *Qty: 1 L.H. plate
For CH
$414.12
Location: 26 Prev | Next Part: 12646601 *Qty: 13 Washer
For CH
$0.90
Location: 27 Prev | Next Part: 127494 *Qty: 13 Washer
For CH
$0.90
Location: 28 Prev | Next Part: 10902321 *Qty: 13 Screw
For CH
Superseded
Location: 29 Prev | Next Part: 61578000 *Qty: 3 Thermal insulation fixing bracket
CH - CAT
$25.07
Location: 29 Prev | Next Part: 61580800 *Qty: 2 Thermal insulation fixing bracket $6.32

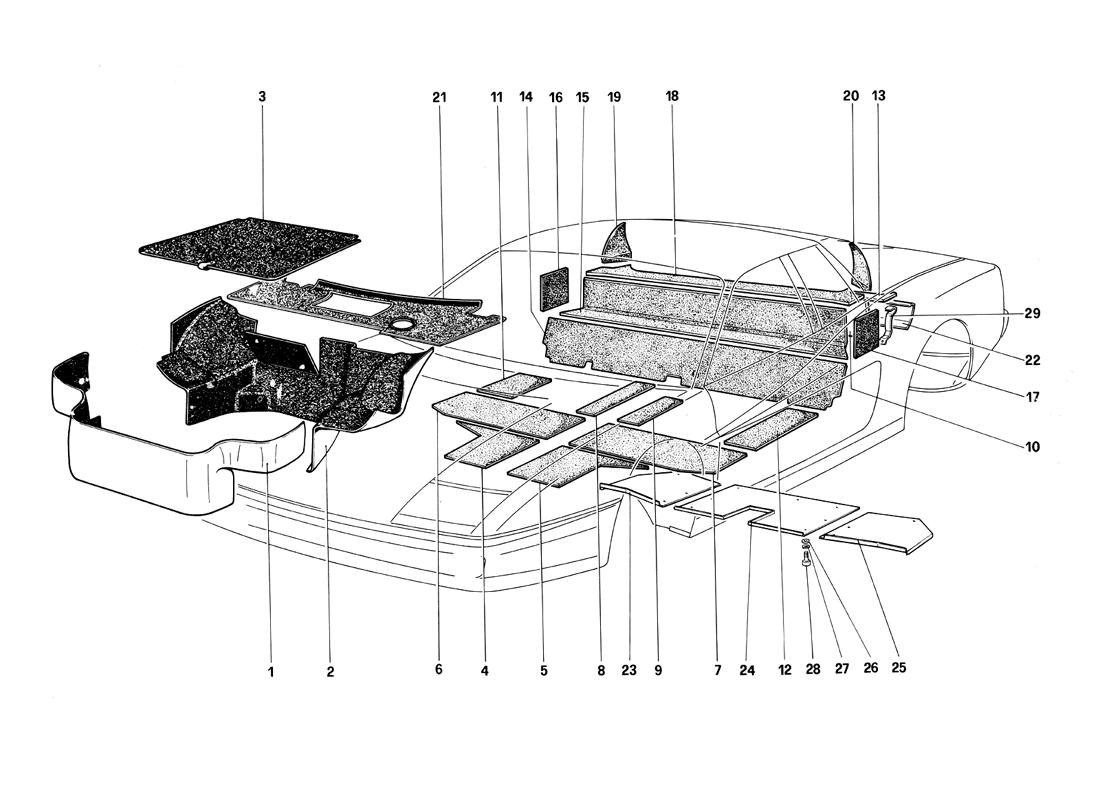

* Quantity shown indicates the number of pieces used in the diagram.
