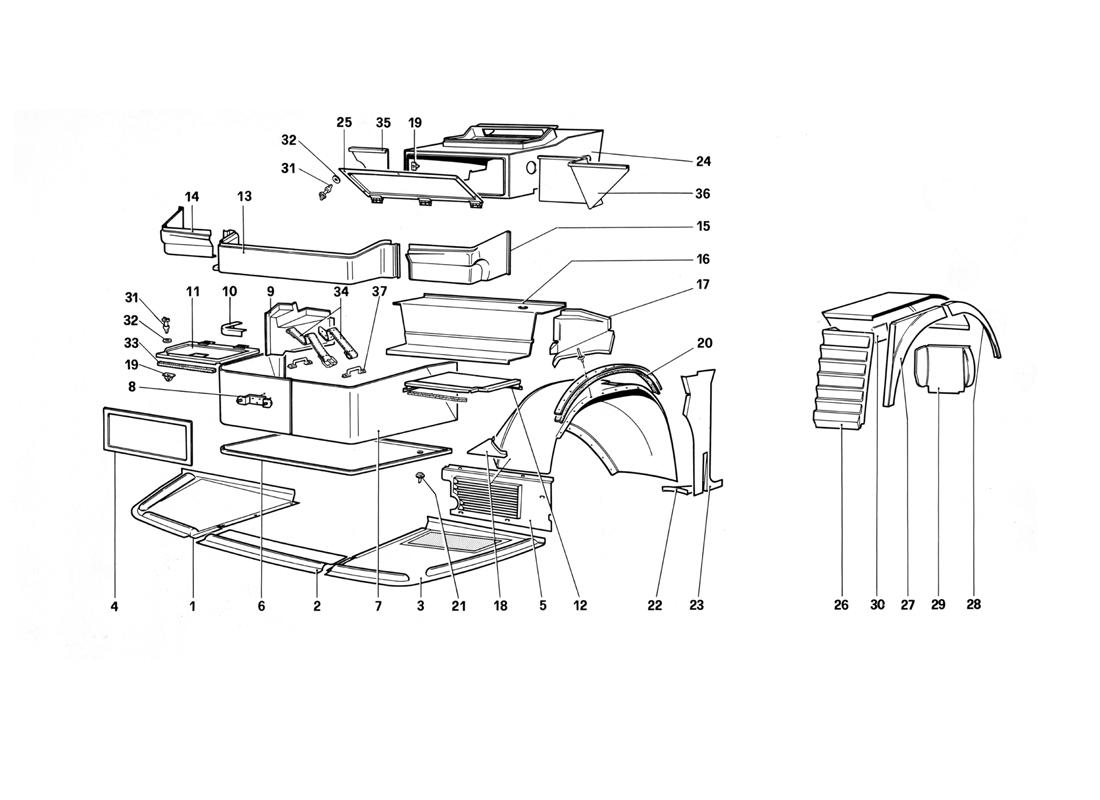

BODY - INTERNAL COMPONENTS

Go to Split View

BODY - INTERNAL COMPONENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61478600 *Qty: 1 Right front bottom plate $672.96
Location: 2 Prev | Next Part: 61478700 *Qty: 1 Central front bottom plate $362.86
Location: 3 Prev | Next Part: 61478800 *Qty: 1 Left front bottom plate Call
Location: 4 Prev | Next Part: 61478900 *Qty: 1 RH wheelarch front shieldpanel $159.87
Location: 5 Prev | Next Part: 61479000 *Qty: 1 Shieldpanel for condenser $356.26
Location: 6 Prev | Next Part: 61479100 *Qty: 1 Trunk bottom plate $317.25
Location: 7 Prev | Next Part: 61479200 *Qty: 1 Central movable lower shieldpanel $1,033.92
Location: 8 Prev | Next Part: 61479300 *Qty: 1 Horn support bracket $4.73
Location: 9 Prev | Next Part: 61479500 *Qty: 1 Left angle piece for wheel house $368.53
Location: 9 Prev | Next Part: 61479400 *Qty: 1 Right angle piece for wheel house $368.53
Location: 10 Prev | Next Part: 61479700 *Qty: 1 Left support for luggage compartment Superseded
Location: 10 Prev | Next Part: 61479600 *Qty: 1 Right support for luggage compartment $98.44
Location: 11 Prev | Next Part: 61479800 *Qty: 1 Battery compartment lid $827.60
Location: 12 Prev | Next Part: 61479900 *Qty: 1 Condenser compartment lid $801.62
Location: 13 Prev | Next Part: 61480000 *Qty: 1 Central movable shieldpanel $718.93
Location: 14 Prev | Next Part: 61480100 *Qty: 1 Right movable shieldpanel $551.21
Location: 15 Prev | Next Part: 61480200 *Qty: 1 Left movable shieldpanel $871.86
Location: 16 Prev | Next Part: 61480300 *Qty: 1 Rear shieldpanel $435.46
Location: 17 Prev | Next Part: 61480500 *Qty: 1 Right front panel $75.27
Location: 17 Prev | Next Part: 61480400 *Qty: 1 Left front panel $98.44
Location: 18 Prev | Next Part: 61480700 *Qty: 1 Wheelhouse, front right $353.57
Location: 18 Prev | Next Part: 61480600 *Qty: 1 Wheelhouse, front left Call
Location: 19 Prev | Next Part: 61529200 *Qty: 6 Clip $3.93
Location: 20 Prev | Next Part: 61481000 *Qty: 2 Wheelhouse gasket $74.02
Location: 21 Prev | Next Part: 60731300 *Qty: 1 Plug $3.81
Location: 22 Prev | Next Part: 61481300 *Qty: 1 Left cover $11.08
Location: 22 Prev | Next Part: 61481200 *Qty: 1 Right cover $10.89
Location: 23 Prev | Next Part: 61481500 *Qty: 1 Left door inner pillar $42.52
Location: 23 Prev | Next Part: 61481400 *Qty: 1 Right door inner pillar $42.52
Location: 24 Prev | Next Part: 61481600 *Qty: 1 Air condition case $396.88
Location: 25 Prev | Next Part: 61481700 *Qty: 1 Electric board cover $39.86
Location: 26 Prev | Next Part: 61481900 *Qty: 1 Front section of rear left wheelhouse $231.53
Location: 26 Prev | Next Part: 61481800 *Qty: 1 Front section of rear right wheelhouse $491.07
Location: 27 Prev | Next Part: 61482000 *Qty: 1 Front side section of rear right $393.72
Location: 27 Prev | Next Part: 61482100 *Qty: 1 Front side section of rear left $315.77
Location: 28 Prev | Next Part: 61482300 *Qty: 1 Rear side section of rear left $56.86
Location: 28 Prev | Next Part: 61482200 *Qty: 1 Rear side section of rear left $56.86
Location: 29 Prev | Next Part: 61482400 *Qty: 1 Rear section of rear right wheelhouse $73.70
Location: 29 Prev | Next Part: 61482500 *Qty: 1 Rear section of rear left wheelhouse Call
Location: 30 Prev | Next Part: 61482600 *Qty: 1 Upper section of rear right wheelhouse $716.57
Location: 30 Prev | Next Part: 61482700 *Qty: 1 Upper section of rear left wheelhouse $716.57
Location: 31 Prev | Next Part: 61530300 *Qty: 6 Pin securing battery and condenser compartment lid Call
Location: 32 Prev | Next Part: 61529400 *Qty: 6 Pin gasket $2.41
Location: 33 Prev | Next Part: 61538600 *Qty: 1 Gasket $5.12
Location: 34 Prev | Next Part: 61538300 *Qty: 1 Spare wheel retaining belt
Not for SA
Superseded
Location: 34 Prev | Next Part: 61568000 *Qty: 1 Spare wheel retaining belt
For SA
$43.33
Location: 35 Prev | Next Part: 61546100 *Qty: 1 Right protection
LHD
$58.29
Location: 35 Prev | Next Part: 61546300 *Qty: 1 Right protection
RHD
$81.46
Location: 36 Prev | Next Part: 61546400 *Qty: 1 Left protection
RHD
$57.03
Location: 36 Prev | Next Part: 61546200 *Qty: 1 Left protection
LHD
$58.29
Location: 37 Prev | Next Part: 30029904 *Qty: 2 Bracket for retaining belt Call

* Quantity shown indicates the number of pieces used in the diagram.
