AIR INTAKE MANIFOLDS

Go to Split View

AIR INTAKE MANIFOLDS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 121055 *Qty: 4 Intake manifold $957.95
Location: 2 Prev | Next Part: 124451 *Qty: 1 R.H. body for air delivery to manifods, complete
For US and C8
$618.76
Location: 2 Prev | Next Part: 133595 *Qty: 1 R.H. body for air delivery to manifolds, complete
For SA
$1,453.99
Location: 2 Prev | Next Part: 132327 *Qty: 1 R.H. body for air delivery to manifolds complete
For B1 and CAT.
$520.60
Location: 2 Prev | Next Part: 131934 *Qty: 1 R.H. body for air delivery to manifods, complete
For C7
$506.56
Location: 3 Prev | Next Part: 131935 *Qty: 1 L.H. body for air delivery to manifolds, complete
For C7
$506.56
Location: 3 Prev | Next Part: 130137 *Qty: 1 L.H. body for air delivery to manifolds, complete
For SA
$676.60
Location: 3 Prev | Next Part: 124450 *Qty: 1 L.H. body for air delivery to manifolds, complete
For US and C8
$618.76
Location: 3 Prev | Next Part: 127128 *Qty: 1 L.H. body for air delivery to manifolds, complete
For B1 and CAT.
$1,222.62
Location: 4 Prev | Next Part: 134959 *Qty: 4 Single gasket
Without Amianthus
$3.83
Location: 4 Prev | Next Part: 121124 *Qty: 4 Single gasket
With Amianthus
Superseded
Location: 5 Prev | Next Part: 121125 *Qty: 4 Double gasket
With Amianthus
Superseded
Location: 5 Prev | Next Part: 134958 *Qty: 4 Double gasket
Without Amianthus
$8.37
Location: 6 Prev | Next Part: 121021 *Qty: 4 Gasket $37.18
Location: 7 Prev | Next Part: 114984 *Qty: 16 Spacer $10.42
Location: 8 Prev | Next Part: 14306521 *Qty: 16 Screw Superseded
Location: 9 Prev | Next Part: 12601371 *Qty: 16 Washer Superseded
Location: 10 Prev | Next Part: 14305621 *Qty: 4 Screw Superseded
Location: 11 Prev | Next Part: 12601279 *Qty: 4 Washer Superseded
Location: 12 Prev | Next Part: 131182 *Qty: 1 Bracket for cables Unavailable
Location: 13 Prev | Next Part: 13540721 *Qty: 4 Air intake securing stud Superseded
Location: 14 Prev | Next Part: 15896211 *Qty: 4 Nut Superseded
Location: 15 Prev | Next Part: 12644401 *Qty: 4 Spring washer Superseded
Location: 16 Prev | Next Part: 106850 *Qty: 4 Washer Superseded
Location: 17 Prev | Next Part: 10269550 *Qty: 4 Tapered plug $0.90
Location: 18 Prev | Next Part: 13540721 *Qty: 1 Stud for exhaust pipe bracket Superseded
Location: 19 Prev | Next Part: 12574211 *Qty: 2 Selflocking nut Superseded
Location: 20 Prev | Next Part: 12601271 *Qty: 2 Washer Superseded
Location: 21 Prev | Next Part: 113652 *Qty: 2 Nipple Unavailable
Location: 22 Prev | Next Part: 124341 *Qty: 1 Nipple
For US - C8
$7.21
Location: 23 Prev | Next Part: 124342 *Qty: 1 Nipple for power brake depression $5.85
Location: 24 Prev | Next Part: 121401 *Qty: 1 Nipple
For C7
$7.57
Location: 24 Prev | Next Part: 125782 *Qty: 1 Nipple
For US - C8
$15.27
Location: 24 Prev | Next Part: 130134 *Qty: 1 Nipple
For SA
$10.72
Location: 24 Prev | Next Part: 118742 *Qty: 1 Nipple
For B1 - CAT.
$4.23
Location: 25 Prev | Next Part: 124341 *Qty: 1 Nipple
For B1 - CAT.
$7.21
Location: 25 Prev | Next Part: 125782 *Qty: 1 Nipple
For US - C8
$15.27
Location: 25 Prev | Next Part: 130134 *Qty: 1 Nipple
For SA
$10.72
Location: 26 Prev | Next Part: 121090 *Qty: 1 Sleeve Unavailable
Location: 27 Prev | Next Part: 12176490 *Qty: 2 Clamp Superseded
Location: 28 Prev | Next Part: 14325950 *Qty: 2 Plug (10x1,25)
For B1 - CAT. - C7 - SA
$6.28
Location: 28 Prev | Next Part: 14326150 *Qty: 4 Plug (8x1 ,25) $0.90
Location: 29 Prev | Next Part: 124341 *Qty: 1 Nipple
For US - C8
$7.21

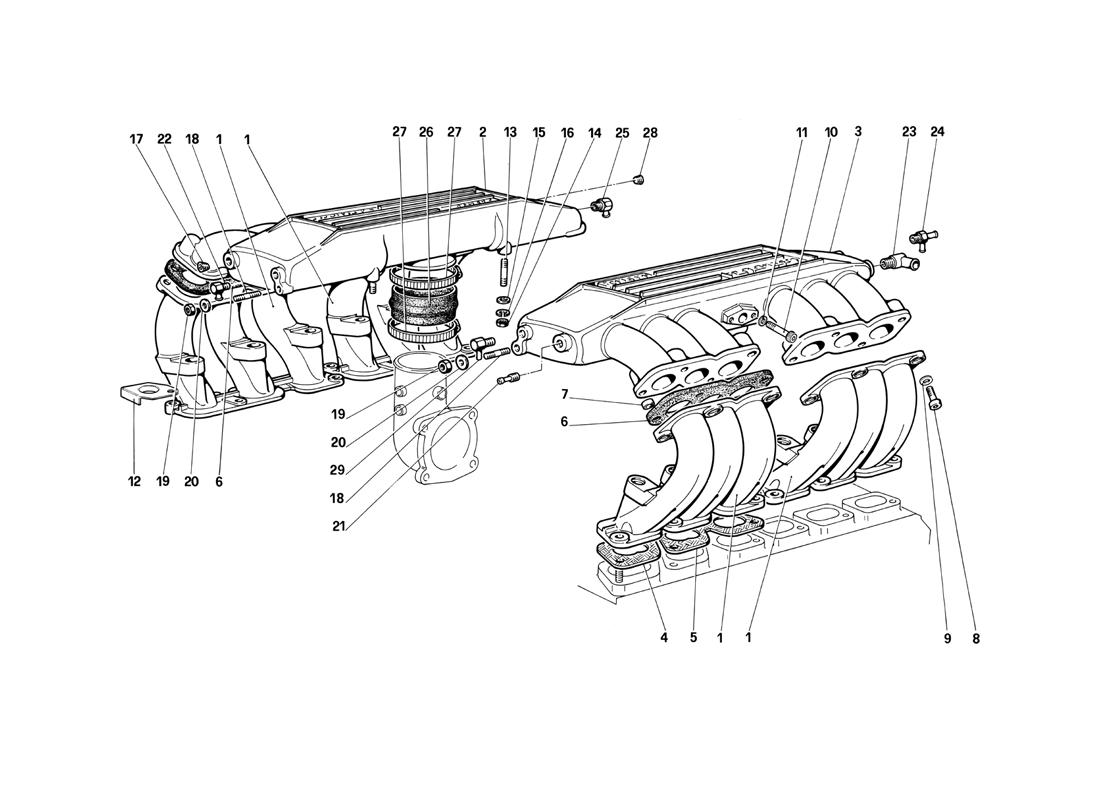

* Quantity shown indicates the number of pieces used in the diagram.
