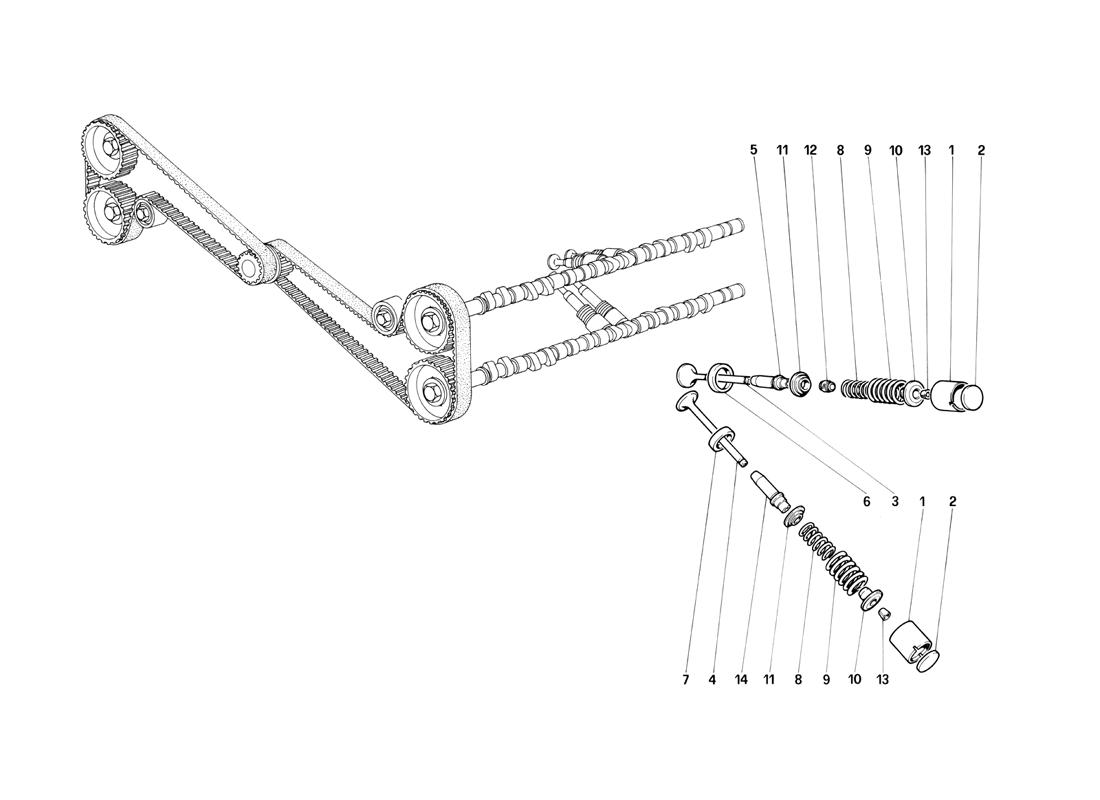

TIMING SYSTEM - VALVES

Location Part # Quantity* Description Price Add To Cart
1 117562 48 Tappet for valve control $142.69
2 117583 1 Ditto, thickness 3.95 mm. $48.29
2 117590 1 Ditto, thickness 4.30 mm. $44.84
2 117581 1 Ditto, thickness 3.85 mm. $56.92
2 117570 1 Ditto, thickness 3.30 mm. $24.14
2 117592 1 Ditto, thickness 4.40 mm. $24.14
2 117579 1 Ditto, thickness 3.75 mm. $56.92
2 117572 1 Ditto, thickness 3.40 mm. $24.14
2 117594 1 Ditto, thickness 4.50 mm. $24.14
2 117577 1 Ditto, thickness 3.65 mm. $56.92
2 117574 1 Ditto, thickness 3.50 mm. $24.14
2 117596 1 Ditto, thickness 4.60 mm. $25.86
2 117575 1 Ditto, thickness 3.55 mm. $48.29
2 117576 1 Ditto, thickness 3.60 mm. $56.92
2 117573 1 Ditto, thickness 3.45 mm. $24.14
2 117578 1 Ditto, thickness 3.70 mm. $56.92
2 117569 48 Shim for valve adjustment, thickness 3.25mm. $24.14
2 117571 1 Ditto, thickness 3.35 mm. $24.14
2 117580 1 Ditto, thickness 3.80 mm. $56.92
2 117595 1 Ditto, thickness 4.55 mm. $19.41
2 117582 1 Ditto, thickness 3.90 mm. $56.92
2 117587 1 Ditto, thickness 4.15 mm. Unavailable
2 117584 1 Ditto, thickness 4.00 mm. Unavailable
2 117589 1 Ditto, thickness 4.25 mm. $44.84
2 117591 1 Ditto, thickness 4.35 mm. $22.41
2 117585 1 Ditto, thickness 4.05 mm. $48.29
2 117586 1 Ditto, thickness 4.10 mm. $56.92
2 117593 1 Ditto, thickness 4.45 mm. $24.14
2 117588 1 Ditto, thickness 4.20 mm. $44.84
3 120476 24 Intake valve $274.27
4 120477 24 Exhaust valve Unavailable
5 117566 24 Intake valve guide overized by 0.2mm. Unavailable
5 117565 24 Intake valve guide $162.58
6 120478 24 Intake valve seat
If out of stock use PN. 126212 		Superseded
7 120479 24 Exhaust valve seat $17.19
8 117558 48 Valve return inner spring Unavailable
9 117559 48 Valve return outer spring Unavailable
10 117567 48 Spring retaining upper cup $41.53
11 117568 48 Spring retaining lower cup $18.09
12 119051 24 Oil seal on intake valve guide
For A1 		Superseded
12 119051 48 Oil seal for valves guide
For B1 - US - CH - SA 		Superseded
13 117283 96 Cotter for valve spring cup $4.67
14 117565 24 Exhaust valve guide
Not for A1 		$162.58
14 123076 24 Exhaust valve guide oversized by 0.2 mm.
For A1 		$82.99
14 117566 24 Exhaust valve guide oversized by 0.2 mm.
Not for A1 		Unavailable
14 123075 24 Exhaust valve guide
For A1 		Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
