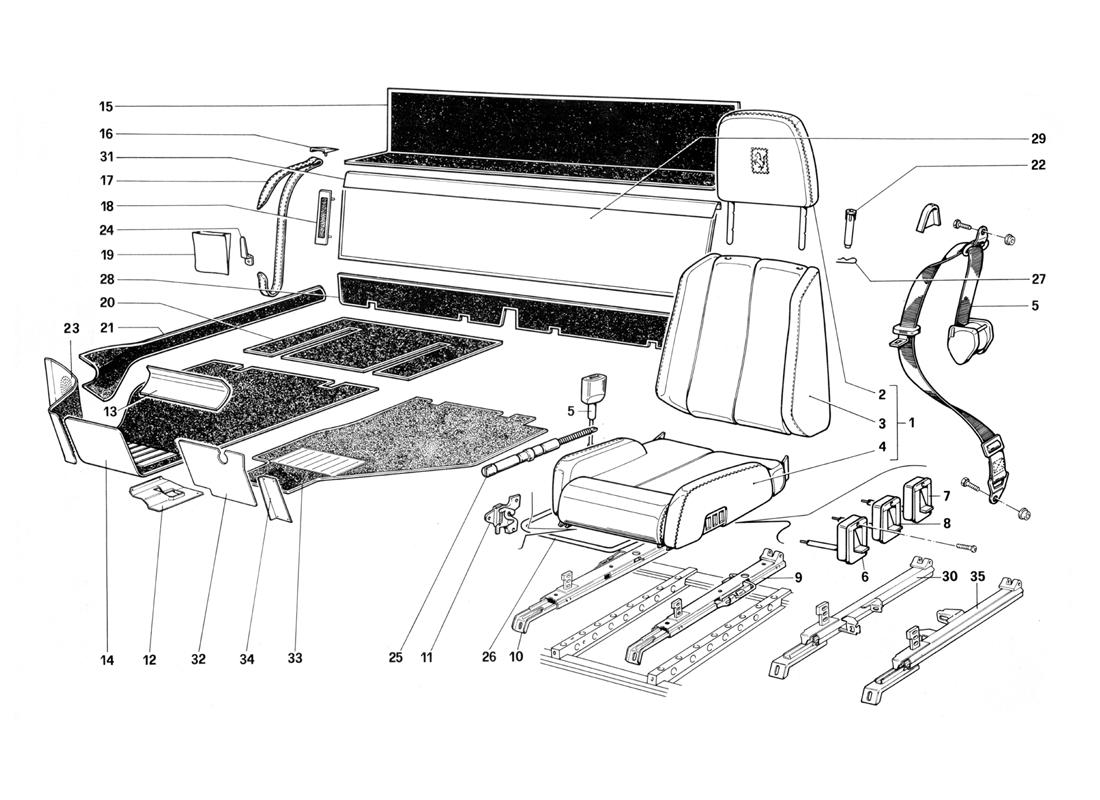

SEATS AND CARPETS

Go to Split View

SEATS AND CARPETS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61537900 *Qty: 1 Front LH seat, complete
Until car No 67077
$4,706.57
Location: 1 Prev | Next Part: 61561400 *Qty: 1 Front RH seat, complete
Starting car No 67079
$5,899.87
Location: 1 Prev | Next Part: 61461500 *Qty: 1 Front LH seat, complete
Starting car No 67079
Superseded
Location: 1 Prev | Next Part: 61537800 *Qty: 1 Front RH seat, complete
Until car No 67077
$4,706.57
Location: 2 Prev | Next Part: 61538000 *Qty: 2 Headrest $1,128.52
Location: 3 Prev | Next Part: 61516100 *Qty: 1 Left - back rest $4,989.62
Location: 3 Prev | Next Part: 61516000 *Qty: 1 Right back rest $3,058.53
Location: 4 Prev | Next Part: 61516200 *Qty: 1 Right bottom $7,660.74
Location: 4 Prev | Next Part: 61516300 *Qty: 1 Left bottom $3,275.73
Location: 5 Prev | Next Part: 123088 *Qty: 2 Safety belt
For U6 - SA - CDN - J
Superseded
Location: 5 Prev | Next Part: 123087 *Qty: 2 Safety belt
Not for US-SA-CDN-J
Superseded
Location: 6 Prev | Next Part: 61516400 *Qty: 2 Lock release $33.31
Location: 7 Prev | Next Part: 61516500 *Qty: 2 Adjuster $30.80
Location: 8 Prev | Next Part: 61516600 *Qty: 2 Adjuster $26.64
Location: 9 Prev | Next Part: 61516700 *Qty: 2 Left seat guide
Until car No 67077
$327.59
Location: 10 Prev | Next Part: 61516800 *Qty: 2 Right seat guide
Until car No 67077
$327.59
Location: 11 Prev | Next Part: 61517000 *Qty: 1 Left lock $29.88
Location: 11 Prev | Next Part: 61516900 *Qty: 1 Right lock $29.88
Location: 12 Prev | Next Part: 61517100 *Qty: 1 Accelerator pedal cover
For LHD
$37.63
Location: 13 Prev | Next Part: 61517300 *Qty: 1 Dash board cover
For RHD
$200.71
Location: 13 Prev | Next Part: 61543000 *Qty: 1 Set of carpets
For RHD
$602.60
Location: 13 Prev | Next Part: 61558200 *Qty: 1 Set of carpets
For U7
Call
Location: 13 Prev | Next Part: 61542900 *Qty: 1 Set of carpets
For LHD, not for U7
$1,953.01
Location: 13 Prev | Next Part: 61517200 *Qty: 1 Dash board cover
For LHD
$269.10
Location: 14 Prev | Next Part: 61517400 *Qty: 1 Front right carpet
For LHD
Call
Location: 14 Prev | Next Part: 61517700 *Qty: 1 Front left carpet
For RHD
Call
Location: 15 Prev | Next Part: 61517800 *Qty: 1 Shieldpanel carpet Call
Location: 16 Prev | Next Part: 61517900 *Qty: 2 Luggage belt fixing support $210.59
Location: 17 Prev | Next Part: 61518000 *Qty: 2 Luggagabelt fixing $197.10
Location: 18 Prev | Next Part: 61518100 *Qty: 2 Luggage belt stop Call
Location: 19 Prev | Next Part: 61542800 *Qty: 1 Headrest cover $377.97
Location: 19 Prev | Next Part: 61518300 *Qty: 2 Left pocket $316.25
Location: 19 Prev | Next Part: 61542700 *Qty: 1 Back rest cover $1,376.89
Location: 19 Prev | Next Part: 61518200 *Qty: 2 Right pocket $316.25
Location: 19 Prev | Next Part: 61542600 *Qty: 1 Left bottom cover $1,561.39
Location: 19 Prev | Next Part: 61542500 *Qty: 1 Right bottom cover $1,561.39
Location: 20 Prev | Next Part: 61518600 *Qty: 1 Rear right carpet
For RHD
Call
Location: 20 Prev | Next Part: 61518400 *Qty: 1 Rear right carpet
For LHD
$54.96
Location: 20 Prev | Next Part: 61518700 *Qty: 1 Rear left carpet
For RHD
Call
Location: 20 Prev | Next Part: 61518500 *Qty: 1 Rear left carpet
For LHD
$54.96
Location: 21 Prev | Next Part: 61518900 *Qty: 1 Left framework carpet
For LHD, not for U9
$248.37
Location: 21 Prev | Next Part: 61519100 *Qty: 1 Left framework carpet
For RHD
Call
Location: 21 Prev | Next Part: 61550300 *Qty: 1 Right framework carpet
For U7
$79.39
Location: 21 Prev | Next Part: 61519000 *Qty: 1 Right framework carpet
For RHD
$248.37
Location: 21 Prev | Next Part: 61518800 *Qty: 1 Right framework carpet
For LHD, not for U7
$105.84
Location: 21 Prev | Next Part: 61550400 *Qty: 1 Left framework carpet
For U7
$105.84
Location: 22 Prev | Next Part: 61519200 *Qty: 4 Bush $99.82
Location: 23 Prev | Next Part: 61540200 *Qty: 1 R.H. side carpet
RHD
Call
Location: 23 Prev | Next Part: 61540100 *Qty: 1 L.H. side carpet
LHD
Call
Location: 24 Prev | Next Part: 61519500 *Qty: 2 Pocket support $82.43
Location: 25 Prev | Next Part: 61534400 *Qty: 1 L.H. adjuster Call
Location: 25 Prev | Next Part: 61519600 *Qty: 1 R.H. adjuster $104.95
Location: 26 Prev | Next Part: 61519700 *Qty: 2 Seat releasing lever
Until car No 67077
$68.23
Location: 26 Prev | Next Part: 61561800 *Qty: 2 Seat releasing lever
Starting from car 67079
$30.96
Location: 27 Prev | Next Part: 61519800 *Qty: 8 Stop spring $0.90
Location: 28 Prev | Next Part: 61550500 *Qty: 1 Tunnel shield panel carpet
For U7
$90.48
Location: 28 Prev | Next Part: 61519900 *Qty: 1 Tunnel shield panel carpet
For LHD, not for U7
Call
Location: 28 Prev | Next Part: 61520000 *Qty: 1 Tunnel shield panel carpet
For RHD
Call
Location: 29 Prev | Next Part: 61520100 *Qty: 1 Lower covering $211.52
Location: 30 Prev | Next Part: 61561600 *Qty: 1 Right seat guide
From car No 67079
$262.79
Location: 31 Prev | Next Part: 61534500 *Qty: 1 Trim for lower covering $772.14
Location: 32 Prev | Next Part: 61538700 *Qty: 1 Front vertical carpet
RHD,driver side
Call
Location: 32 Prev | Next Part: 61538400 *Qty: 1 Front vertical carpet
LHD, driver side
Call
Location: 33 Prev | Next Part: 61538800 *Qty: 1 Front carpet RHD ()
Driver side
Call
Location: 33 Prev | Next Part: 61538500 *Qty: 1 Front carpet LHD ()
Driver side
$112.68
Location: 34 Prev | Next Part: 61538100 *Qty: 1 Footrest, driver side ()
LHD
$209.97
Location: 35 Prev | Next Part: 61561700 *Qty: 1 Left seat guide
Starting car No 67079
Call

* Quantity shown indicates the number of pieces used in the diagram.
