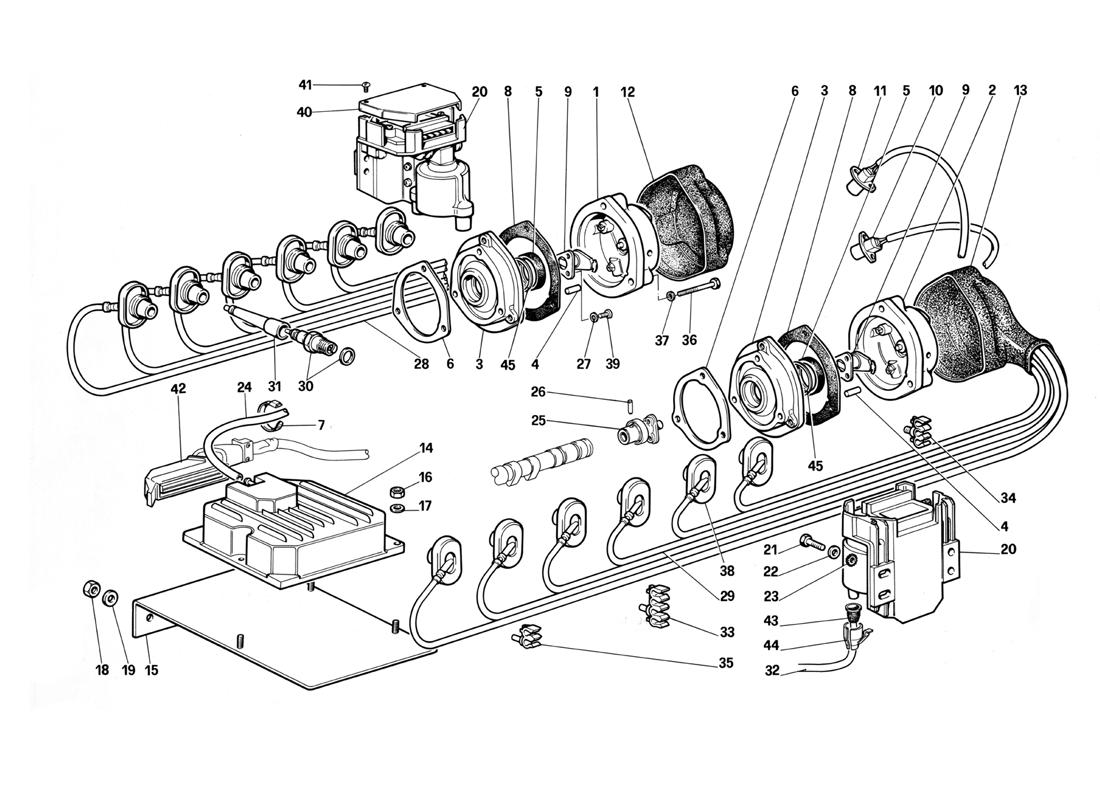

ENGINE IGNITION

ENGINE IGNITION

Location Part # Quantity* Description Price Add To Cart
- HT008 1 Complete HT Leads Set Unavailable
1 121552 1 R.H. distributor cap Superseded
1 144637 2 Distributor Cap
Use on Exhaustion of 121552 & 144638
$457.14
2 124575 1 L.H. distributor cap Superseded
2 144638 1 LH Distributor Cap
Use on Exhaustion of 124575 - Use 144637 on Exhaustion
Superseded
3 133346 1 RH distributor cap support
After exhaustion no. 126115
$74.42
3 126115 2 Distributor cap support
Until exhausted
Superseded
3 133347 1 LH distributor cap support
After exhaustion no. 126115
$74.42
4 10331111 2 Dowel Unavailable
5 132452 2 Oil seal ring $33.50
6 117261 2 Gasket Superseded
7 110381 3 Clamp Unavailable
8 119409 2 Gasket $6.84
9 126139 2 Rotor arm $186.27
10 119052 1 Angular speed sensor $214.39
11 124241 1 Dead center pick-up sensor $78.68
12 124581 1 R.H. distributor cap boot Superseded
13 124582 1 L.H. distrubutor cap boot Superseded
14 125828 1 Ignition module Unavailable
15 124391 1 Ignition module securing plate $28.03
16 12574211 3 Nut Superseded
17 12639701 3 Washer Unavailable
18 12574211 2 Nut Superseded
19 12639701 2 Washer Unavailable
20 124273 2 Power module with coil Unavailable
21 10902327 4 Screw Unavailable
22 12643701 4 Washer Superseded
23 10615471 4 Tab washer Unavailable
24 122792 1 Ignition module depression hose
For CH and U.S. version
Unavailable
24 124406 1 Ignition module depression hose
Not for CH and U.S. version
$13.74
25 126166 2 Coupling on camshaft
After exhaustion use no. 133063
Unavailable
26 132355 2 Spring pin $83.58
27 12544071 6 Washer Unavailable
28 124171 1 Set of R.H. ignition cables Unavailable
29 124172 1 Set of L.H. ignition cables Unavailable
30 131922 12 Spark plug (CHAMPION-A-6G)
After exhaustion use P.N. 131922
Superseded
31 124792 12 Extension for spark plugs cables $18.33
31 124175 12 Extension for spark plugs cables $42.00
32 124179 2 Cable from coil to distributor cap Unavailable
33 121788 2 4 - cable support clip $15.37
34 121789 8 3 - cable support clip Unavailable
35 121790 4 2 - cable support clip $11.57
36 10902321 2 Screw Superseded
37 11197771 2 Washer Superseded
38 121527 12 Spark plug cap $54.57
39 10444521 6 Screw Unavailable
40 125046 2 Protection for power module for A1
Until engine no. 150
Unavailable
40 128169 2 Protection for power module
Starting from engine no. 151
Unavailable
41 15921807 4 Screw
For B1 - U7 - S7 - C7
Unavailable
41 14063018 4 Screw
For A1 - U6 - S6 - C6
Unavailable
42 61916900 1 25 way connector Unavailable
43 122970 2 Cap $35.63
44 129620 2 Protection Unavailable
45 133066 2 Spacer
For distributor cap support no. 126115
$36.99

* Quantity shown indicates the number of pieces used in the diagram.
