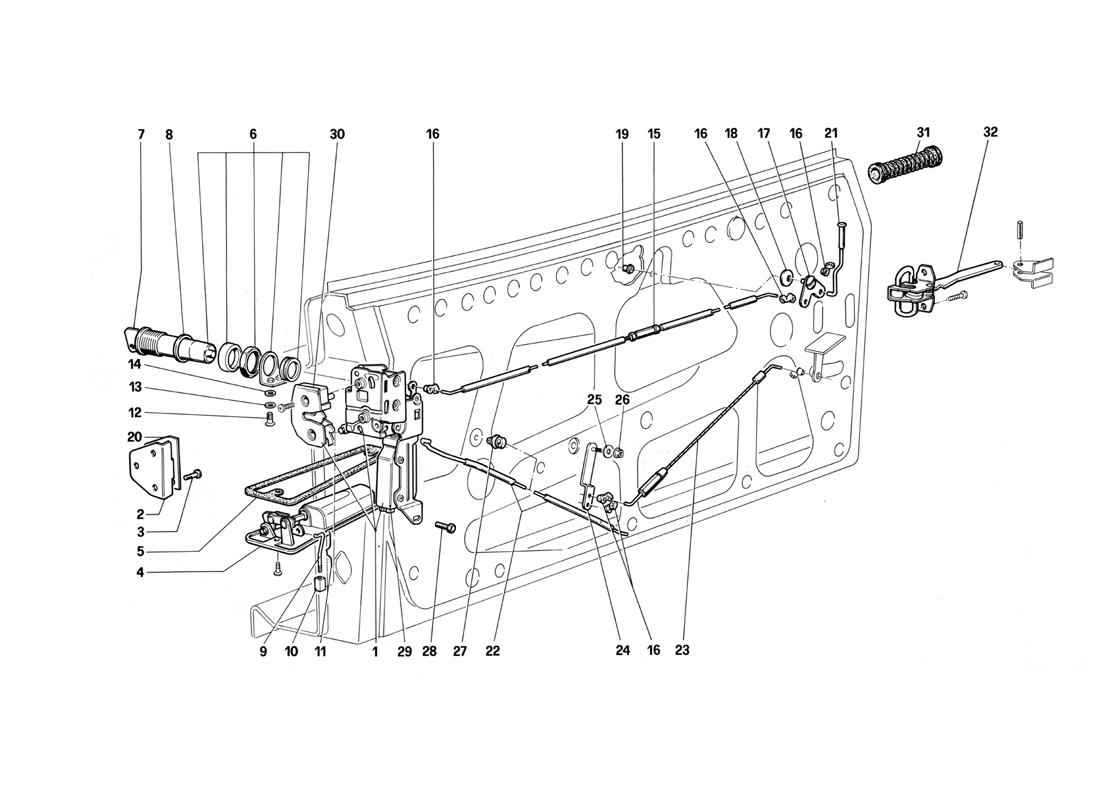

DOOR - LOCKING DEVICE

Go to Split View

DOOR - LOCKING DEVICE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61506400 *Qty: 1 Lock for left door RHD (complete) $970.13
Location: 1 Prev | Next Part: 61506300 *Qty: 1 Lock for right door RHD (complete) $970.13
Location: 1 Prev | Next Part: 61506200 *Qty: 1 Lock for left door LHD (complete) Superseded
Location: 1 Prev | Next Part: 61506100 *Qty: 1 Lock for right door LHD (complete) $970.13
Location: 2 Prev | Next Part: 61506500 *Qty: 2 Lock striker $59.86
Location: 3 Prev | Next Part: 13303511 *Qty: 4 Screw Call
Location: 4 Prev | Next Part: 61506700 *Qty: 1 Outer handle for left door $797.66
Location: 4 Prev | Next Part: 61506600 *Qty: 1 Outer handle for right door $797.66
Location: 5 Prev | Next Part: 61506900 *Qty: 1 Gasket for left handle $3.07
Location: 5 Prev | Next Part: 61533000 *Qty: 1 Set of lock
For U.S. - SA, after exhaustion use PN 61 545400
Superseded
Location: 5 Prev | Next Part: 61508600 *Qty: 1 Set of lock
Not for U.S. - SA, after exhaustion use PN 61 545300
Call
Location: 5 Prev | Next Part: 61506800 *Qty: 1 Gasket for right handle $3.07
Location: 6 Prev | Next Part: 61507000 *Qty: 2 Lock with key
With set of lock
$301.98
Location: 7 Prev | Next Part: 95401152 *Qty: 2 Key Call
Location: 8 Prev | Next Part: 61507200 *Qty: 2 Lock gasket $0.90
Location: 9 Prev | Next Part: 61507300 *Qty: 2 Rod $5.64
Location: 10 Prev | Next Part: 61507400 *Qty: 2 Sleeve $0.90
Location: 11 Prev | Next Part: 61507500 *Qty: 2 Clip $1.50
Location: 12 Prev | Next Part: 13271811 *Qty: 2 Screw $0.90
Location: 13 Prev | Next Part: 10519201 *Qty: 1 Washer Call
Location: 14 Prev | Next Part: 10615271 *Qty: 4 Washer $0.90
Location: 15 Prev | Next Part: 61507600 *Qty: 2 Rod $21.74
Location: 16 Prev | Next Part: 10578183 *Qty: 10 Clip Superseded
Location: 17 Prev | Next Part: 61507700 *Qty: 2 Lever $0.90
Location: 18 Prev | Next Part: 12541870 *Qty: 2 Washer Call
Location: 19 Prev | Next Part: 15627611 *Qty: 2 Bush $0.90
Location: 20 Prev | Next Part: 61507800 *Qty: 2 Striker protection $7.06
Location: 21 Prev | Next Part: 61537300 *Qty: 2 Security rod for door $29.14
Location: 22 Prev | Next Part: 61507900 *Qty: 2 Rod $5.54
Location: 23 Prev | Next Part: 61508000 *Qty: 2 Rod $14.99
Location: 24 Prev | Next Part: 61508100 *Qty: 2 Washer $7.73
Location: 25 Prev | Next Part: 12643701 *Qty: 2 Washer Superseded
Location: 26 Prev | Next Part: 14084211 *Qty: 2 Nut $0.90
Location: 27 Prev | Next Part: 14569580 *Qty: 2 Clip $0.90
Location: 28 Prev | Next Part: 10977821 *Qty: 2 Screw Call
Location: 29 Prev | Next Part: 61508300 *Qty: 1 Locking device for driver side $198.12
Location: 29 Prev | Next Part: 61508200 *Qty: 1 Locking device for passenger side Call
Location: 30 Prev | Next Part: 61533200 *Qty: 1 Lock for left door Call
Location: 30 Prev | Next Part: 61533300 *Qty: 1 Lock for right door $97.18
Location: 31 Prev | Next Part: 61508400 *Qty: 2 Belows for electric cables $68.35
Location: 32 Prev | Next Part: 61508500 *Qty: 2 Stop tie-rod for door $222.45

* Quantity shown indicates the number of pieces used in the diagram.
