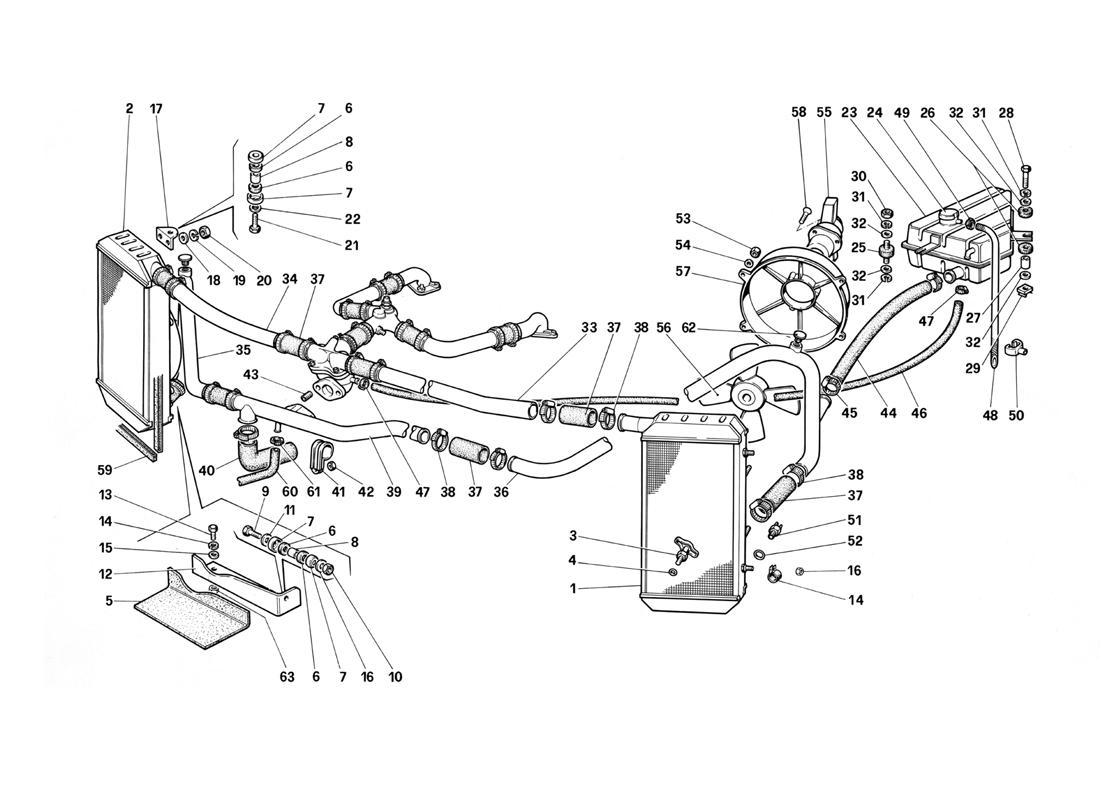

COOLING SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 122966 1 L.H. radiator Unavailable
2 122967 1 R.H. radiator $2,356.81
3 101488 2 Water drain cock $252.07
4 101496 2 Gasket Unavailable
5 118184 2 Rubber shim $92.65
6 107978 8 Pad for radiator fitting $15.35
7 107979 8 Cup $14.90
8 107980 4 Spacer $8.20
9 16043921 2 Screw Superseded
10 16104411 2 Nut $2.33
11 10519601 2 Washer Superseded
12 116977 1 R.H. lower bracket $21.50
12 116976 1 L.H. lower bracket Unavailable
13 10902221 4 Screw Unavailable
14 10441890 2 Clamp $0.90
15 12643701 4 Washer Superseded
16 12574211 2 Nut Superseded
17 122968 2 Upper bracket, movable $40.83
18 12643701 4 Flat washer Superseded
19 106850 4 Spring washer Superseded
20 15896211 4 Nut Superseded
21 16135921 2 Screw $4.10
22 106852 2 Washer Superseded
23 124264 1 Reservoir for radiator $5,572.98
24 101499 1 Reservoir cap Superseded
25 102947 1 Vibration-damping support $20.69
26 103549 2 Vibration-damping bushing $1.81
27 103550 2 Spacer $8.49
28 10902621 2 Screw Superseded
29 60659100 2 Caged nut Superseded
30 15896211 2 Nut Superseded
31 106850 4 Spring washer Superseded
32 12643701 6 Flat washer Superseded
33 124279 1 Pipe to L.H. radiator $36.15
34 124278 1 Pipe to R.H. radiator $41.84
35 125025 1 Pipe from R.H. radiator to pump $351.29
36 129924 1 Pipe from L.H. radtetor to pump
With pipe PN 129925 		$256.19
36 125026 1 Pipe from L.H. radiator to pump
With pipe no. 124280 		$188.30
37 122969 10 Sleeve $36.22
38 12174090 18 Clamp Superseded
39 124280 1 Intermediate pipe
Until exhausted 		Unavailable
39 129925 1 Intermediate pipe
After exhaustion PN 124280 		$342.42
40 122944 1 Sleeve $112.46
41 106195 4 Pipe supporting clamp $80.67
42 12574211 4 Nut Superseded
43 13525470 2 Heli-coil Unavailable
44 125088 1 Feeder hose $89.67
45 12179990 2 Clamp Superseded
46 127218 1 Breather hose Unavailable
47 12179590 2 Clamp Superseded
48 126291 1 Breather hose on reservoir cap $18.05
49 13423379 1 Clamp Unavailable
50 61130500 2 Hose supporting bracket Unavailable
51 101507 1 Thermocontact Superseded
52 101508 1 Gasket $1.66
53 12575411 8 Nut Superseded
54 12643701 8 Flat washer Superseded
55 125936 2 Electric fan motor
For A1 - U6 - S6 - C6 		Unavailable
55 131410 1 Electric fan motor
For B1 - U7 - C7 - S7 		Superseded
56 126937 2 4 - blade fan Unavailable
57 125938 2 Conveyor $51.30
58 123298 6 Screw Unavailable
59 125010 2 Self-adhesive gasket Unavailable
60 124029 1 Hose from water valve to engine $220.82
61 12179990 1 Clamp Superseded
62 127557 2 Drain screw Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
