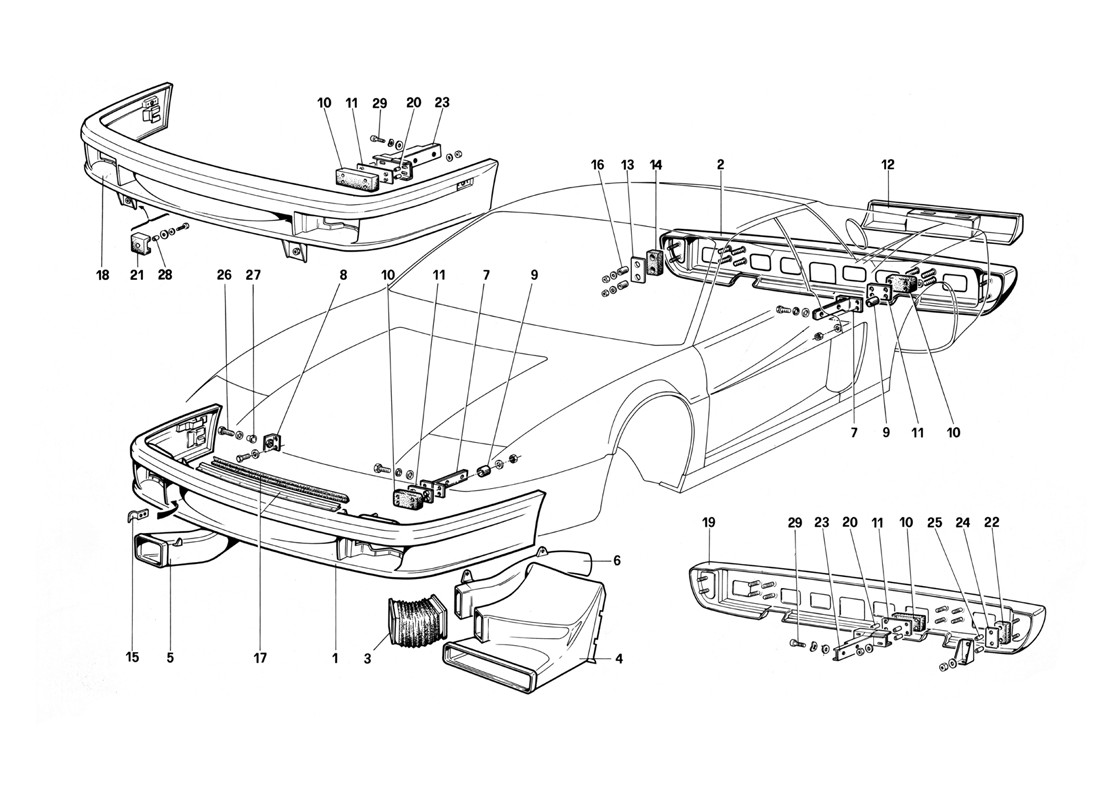

BUMPERS

Go to Split View

BUMPERS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61544700 *Qty: 1 Front bumper
For SA
$2,631.59
Location: 1 Prev | Next Part: 61491200 *Qty: 1 Front bumper
Not for US - SA - CDN
$3,296.45
Location: 1 Prev | Next Part: 61532100 *Qty: 1 Front bumper
For US
$5,354.54
Location: 1 Prev | Next Part: 61491200 *Qty: 1 Front bumper
For J
$3,296.45
Location: 2 Prev | Next Part: 61491300 *Qty: 1 Rear bumper
Not for US - SA - CDN-C7
Superseded
Location: 2 Prev | Next Part: 61532200 *Qty: 1 Rear bumper
For US - SA
$2,981.20
Location: 2 Prev | Next Part: 61532200 *Qty: 1 Rear bumper
For J
$2,981.20
Location: 2 Prev | Next Part: 61559500 *Qty: 1 Rear bumper
For C7
$3,004.99
Location: 3 Prev | Next Part: 61491400 *Qty: 2 Bellow for air conveyor $251.85
Location: 4 Prev | Next Part: 61491500 *Qty: 1 Air conveyor for condenser $318.11
Location: 5 Prev | Next Part: 61491600 *Qty: 1 Air conveyor for right front brake $478.77
Location: 6 Prev | Next Part: 61491700 *Qty: 1 Air conveyor for left front brake $289.54
Location: 7 Prev | Next Part: 61491900 *Qty: 2 Left support for front and rear bumper
Not for CDN
$479.71
Location: 7 Prev | Next Part: 61491800 *Qty: 2 Right support for front and rear bumper
Not for CDN
$360.66
Location: 8 Prev | Next Part: 61492000 *Qty: 2 Sliding support braket $19.20
Location: 9 Prev | Next Part: 61492100 *Qty: 16 Spacer $3.85
Location: 10 Prev | Next Part: 61492200 *Qty: 4 Pad $115.61
Location: 11 Prev | Next Part: 61492300 *Qty: 4 Plate $26.64
Location: 12 Prev | Next Part: 61532700 *Qty: 1 Rear bumper central part
For US - SA
$1,196.12
Location: 13 Prev | Next Part: 61532500 *Qty: 2 Plate
For US - SA
$5.99
Location: 14 Prev | Next Part: 61532400 *Qty: 12 Pad
For US -SA
$14.36
Location: 15 Prev | Next Part: 61532800 *Qty: 2 Retainer spring $17.31
Location: 16 Prev | Next Part: 61532300 *Qty: 4 Spacer
For US - SA
$1.52
Location: 17 Prev | Next Part: 61537400 *Qty: 1 Front bumper gasket $65.21
Location: 18 Prev | Next Part: 61547300 *Qty: 1 Front bumper
For CDN
$5,371.84
Location: 19 Prev | Next Part: 61555800 *Qty: 1 Rear bumper
For CDN
$4,604.12
Location: 20 Prev | Next Part: 61547600 *Qty: 16 Spacer
For CDN
$1.74
Location: 21 Prev | Next Part: 61547700 *Qty: 2 Pad
For CDN
$42.21
Location: 22 Prev | Next Part: 61532400 *Qty: 2 Pad
For CDN
$14.36
Location: 23 Prev | Next Part: 61547500 *Qty: 2 Left support
For CDN
$169.31
Location: 23 Prev | Next Part: 61547400 *Qty: 2 Right support
For CDN
$169.31
Location: 24 Prev | Next Part: 61532500 *Qty: 2 Plate
For CDN
$5.99
Location: 25 Prev | Next Part: 61532300 *Qty: 4 Spacer
For CDN
$1.52
Location: 26 Prev | Next Part: 61556200 *Qty: 2 Screw $10.73
Location: 27 Prev | Next Part: 61543900 *Qty: 2 Bushing $45.52
Location: 28 Prev | Next Part: 61564900 *Qty: 2 Bushing
For CDN
$0.90
Location: 29 Prev | Next Part: 61565000 *Qty: 8 Bolt
For CDN
$7.73

* Quantity shown indicates the number of pieces used in the diagram.
