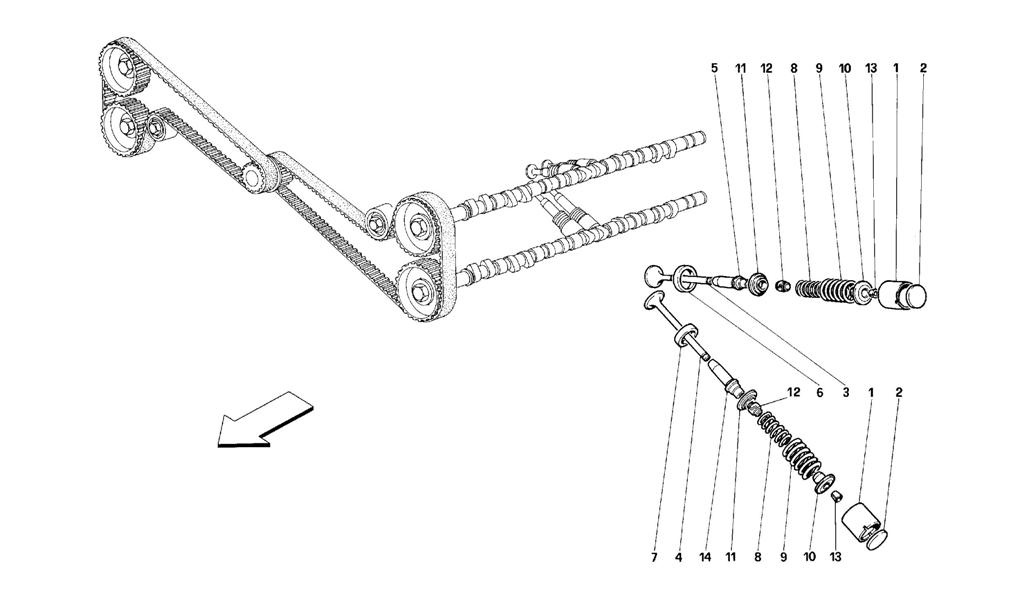

TIMING SYSTEM - VALVES

Location	Part #	Quantity*	Description	Price	Add To Cart
1	149863	48	Tappet for valve control	$22.21
2	117573	48	Ditto, thickness 3.45 mm	$24.14
2	153733	48	Ditto, thickness 3.825 mm	$14.66
2	117584	48	Ditto, thickness 4.00 mm		Unavailable
2	117595	48	Ditto, thickness 4.55 mm	$19.41
2	117574	48	Ditto, thickness 3.50 mm	$24.14
2	153734	48	Ditto, thickness 3.875 mm	$14.66
2	117585	48	Ditto, thickness 4.05 mm	$48.29
2	117596	48	Ditto, thickness 4.60 mm	$25.86
2	117575	48	Ditto, thickness 3.55 mm	$48.29
2	153735	48	Ditto, thickness 3.925 mm	$14.66
2	117586	48	Ditto, thickness 4.10 mm	$56.92
2	117576	48	Ditto, thickness 3.60 mm	$56.92
2	153736	48	Ditto, thickness 3.975 mm	$48.29
2	117587	48	Ditto, thickness 4.15 mm		Unavailable
2	117577	48	Ditto, thickness 3.65 mm	$56.92
2	153737	48	Ditto, thickness 4.025 mm	$46.57
2	117588	48	Ditto, thickness 4.20 mm	$44.84
2	117578	48	Ditto, thickness 3.70 mm	$56.92
2	153738	48	Ditto, thickness 4.075 mm	$46.57
2	117589	48	Ditto, thickness 4.25 mm	$44.84
2	153739	48	Ditto, thickness 4.125 mm		Unavailable
2	117579	48	Ditto, thickness 3.75 mm	$56.92
2	117590	48	Ditto, thickness 4.30 mm	$44.84
2	117569	48	Shim for valve adjustment thickness 3,25 mm.	$24.14
2	153740	48	Ditto, thickness 4.175 mm	$48.29
2	117580	48	Ditto, thickness 3.80 mm	$56.92
2	117591	48	Ditto, thickness 4.35 mm	$22.41
2	117570	48	Ditto, thickness 3.30 mm	$24.14
2	153741	48	Ditto, thickness 4.225 mm	$14.66
2	117581	48	Ditto, thickness 3.85 mm	$56.92
2	117592	48	Ditto, thickness 4.40 mm	$24.14
2	117571	48	Ditto, thickness 3.35 mm	$24.14
2	153731	48	Ditto, thickness 3.725 mm	$14.66
2	153742	48	Ditto, thickness 4.275 mm	$14.66
2	117582	48	Ditto, thickness 3.90 mm	$56.92
2	117593	48	Ditto, thickness 4.45 mm	$24.14
2	117572	48	Ditto, thickness 3.40 mm	$24.14
2	153732	48	Ditto, thickness 3.775 mm	$14.66
2	117583	48	Ditto, thickness 3.95 mm	$48.29
2	117594	48	Ditto, thickness 4.50 mm	$24.14
3	139855	24	Intake valve	$129.07
4	149217	24	Exhaust valve	$96.45
5	117565	24	Intake valve guide	$162.58
5	117566	24	Intake valve guide oversized by 0.2 mm.		Unavailable
6	148313	24	Intake valve seat	$15.61
7	148312	24	Exhaust valve seat	$18.74
8	156648	48	Valve return inner spring	$72.45
9	160049	48	Valve return outer spring	$72.45
10	117567	48	Spring retaining upper cup	$41.53
11	117568	48	Spring retaining lower cup	$18.09
12	141565	48	Oil seal for valves guide		Unavailable
13	117283	96	Cotter for valve spring cup	$4.67
14	117565	24	Exhaust valve guide	$162.58
14	117566	24	Exhaust valve guide oversized by 0.2 mm.		Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
