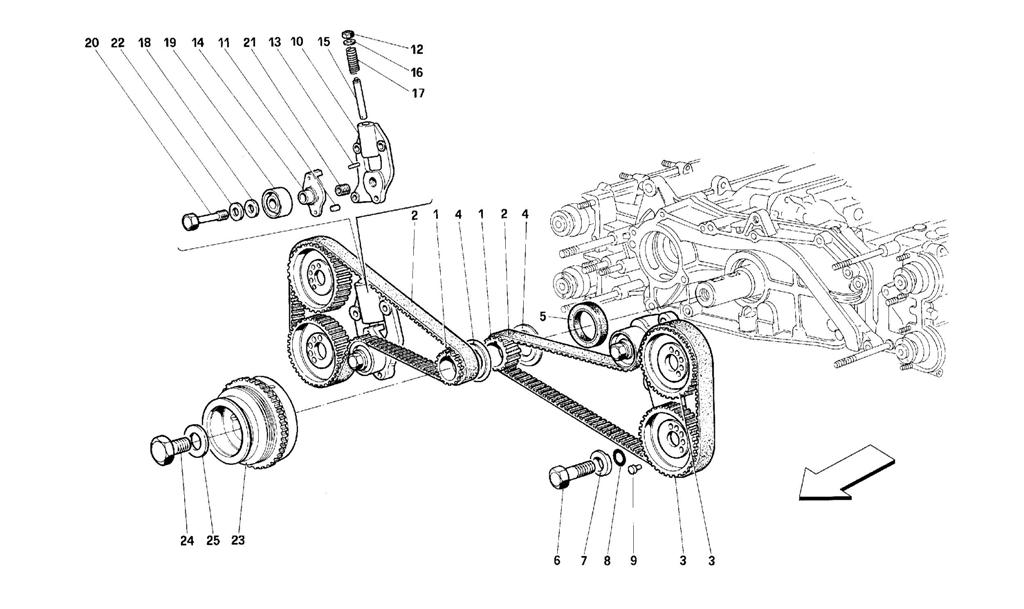

TIMING SYSTEM - CONTROLS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 123112 *Qty: 2 Belt control gear $236.13
Location: 2 Prev | Next Part: 154401 *Qty: 2 Timing belt $28.92
Location: 3 Prev | Next Part: 123108 *Qty: 4 Timing belt pulley $511.96
Location: 4 Prev | Next Part: 120733 *Qty: 2 Timing belt lock ring $146.65
Location: 5 Prev | Next Part: 148310 *Qty: 1 Seal ring $52.78
Location: 6 Prev | Next Part: 146540 *Qty: 4 Screw $7.48
Location: 7 Prev | Next Part: 114802 *Qty: 4 Washer $6.82
Location: 8 Prev | Next Part: 114808 *Qty: 4 Garter spring $4.81
Location: 9 Prev | Next Part: 114803 *Qty: 4 Drive pin $10.03
Location: 10 Prev | Next Part: 121044 *Qty: 4 Dowel $92.47
Location: 11 Prev | Next Part: 125717 *Qty: 2 Dowel $3.53
Location: 12 Prev | Next Part: 102948 *Qty: 2 Nut $0.90
Location: 13 Prev | Next Part: 13933570 *Qty: 2 Spring pin $0.90
Location: 14 Prev | Next Part: 121045 *Qty: 2 Belt stretcher support plate $427.83
Location: 15 Prev | Next Part: 121047 *Qty: 2 Spring control pin $9.18
Location: 16 Prev | Next Part: 121558 *Qty: 2 Washer $1.99
Location: 17 Prev | Next Part: 121249 *Qty: 2 Spring $13.99
Location: 18 Prev | Next Part: 111460 *Qty: 2 Spacer Call
Location: 19 Prev | Next Part: PT512TR *Qty: 1 Cambelt Tensioner (PAIR) $155.00
Location: 20 Prev | Next Part: 111458 *Qty: 2 Screw $48.80
Location: 21 Prev | Next Part: 13524670 *Qty: 2 Heli-coil $0.90
Location: 22 Prev | Next Part: 102824 *Qty: 2 Washer $17.25
Location: 23 Prev | Next Part: 147897 *Qty: 1 Damper with pulley Call
Location: 24 Prev | Next Part: 140925 *Qty: 1 Screw Call
Location: 25 Prev | Next Part: 140922 *Qty: 1 Washer Call

* Quantity shown indicates the number of pieces used in the diagram.
