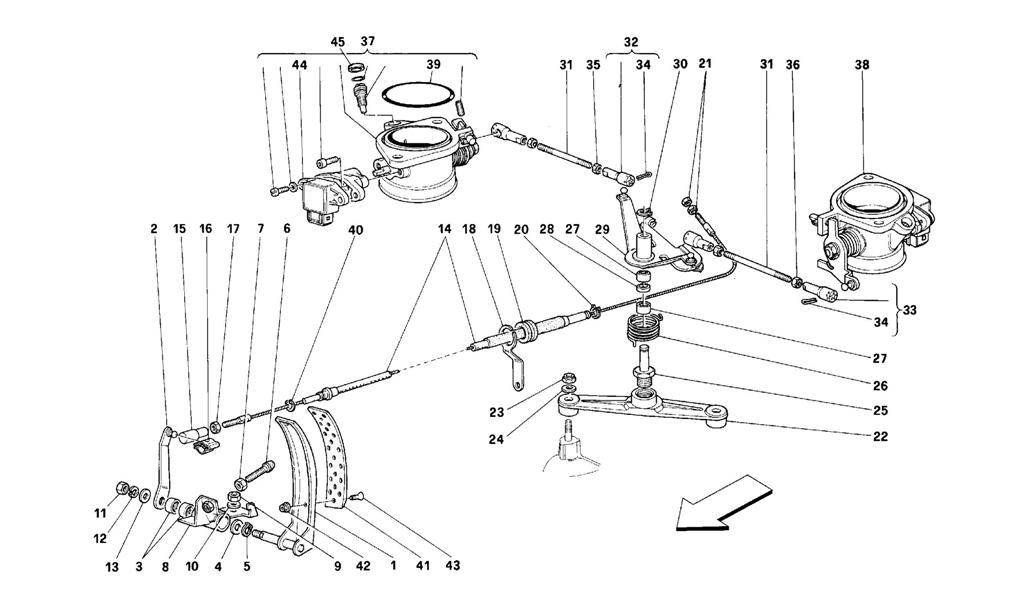

THROTTLE CONTROL -NOT FOR RHD

Location Part # Quantity* Description Price Add To Cart
1 163902 1 Throttle pedal -Valid till stock exhaustion $263.58
1 163907 1 Throttle pedal -Valid after stock exhaustion of 163902 $324.11
2 148297 1 Throttle control lever $35.22
3 101677 2 Roller cage $11.02
4 108576 1 Washer $1.97
5 11066075 1 Seeger ring Unavailable
6 105232 1 Pedal adjustment push rod $6.96
7 16102314 1 Nut Unavailable
8 115396 1 Throttle pedal support $68.03
9 16100821 2 Nut Unavailable
10 127496 2 Washer $0.90
11 16100821 1 Nut Unavailable
12 127496 1 Washer $0.90
13 10519624 1 Washer Unavailable
14 165416 1 Throttles control cable $317.84
15 10123811 1 Joint head $41.39
16 174001 1 Spring clip $0.90
17 15896470 1 Nut Unavailable
18 154742 1 Bracket $39.56
19 10396680 1 Cable grommet $2.33
20 11065676 1 Seeger ring Unavailable
21 10725011 2 Nut $2.27
22 145696 1 Throttle support $171.15
23 102948 2 Nut Superseded
24 12639701 2 Washer Unavailable
25 136705 1 Pin $60.51
26 150085 1 Spring $3.69
27 132873 2 Roller cage $5.83
28 136880 1 Spacer $32.76
29 153356 1 Lever $287.65
30 11065676 1 Seeger ring Unavailable
31 145762 2 Tie rod $2.44
32 105619 2 Spheric joint (L.H. thread) $151.36
33 173999 2 Spheric joint (R.H. thread) $8.95
34 10795101 4 Cotter pin Unavailable
35 105586 2 Nut (L.H. thread) $12.00
36 15896470 2 Nut (R.H. thread) Unavailable
37 146632 1 R.H. throttle body complete $953.47
38 148708 1 L.H. throttle body complete $938.55
39 142934 2 Gasket $16.73
40 11087974 1 Circlip $0.90
41 163920 1 Pedal plate $114.03
42 14058311 3 Nut Unavailable
43 14440734 3 Screw Unavailable
44 142434 2 Potentiometer for throttle valve $466.23
45 166419 2 Safety plug $10.25

* Quantity shown indicates the number of pieces used in the diagram.
