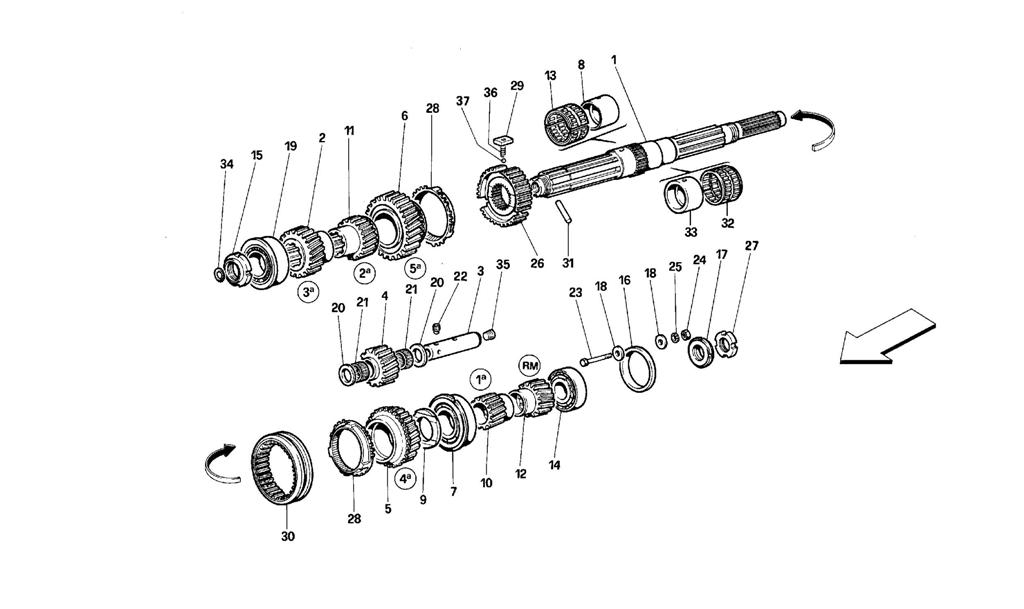

MAIN SHAFT GEARS

Go to Split View

MAIN SHAFT GEARS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 158680 *Qty: 1 Main shaft -Valid till gearbox Nr. 396 $2,682.48
Location: 1 Prev | Next Part: 163724 *Qty: 1 Main shaft -Valid from gearbox Nr. 397 $2,682.46
Location: 2 Prev | Next Part: 148249 *Qty: 1 3rh speed gear $414.19
Location: 3 Prev | Next Part: 155475 *Qty: 1 Pin for reverse idle gear $324.79
Location: 4 Prev | Next Part: 136340 *Qty: 1 Reverse idle gear $1,233.92
Location: 5 Prev | Next Part: 156716 *Qty: 1 4th speed gear $2,004.67
Location: 6 Prev | Next Part: 156713 *Qty: 1 5th speed gear $2,253.43
Location: 7 Prev | Next Part: 103030 *Qty: 1 Roller bearing $239.07
Location: 8 Prev | Next Part: 107499 *Qty: 1 5th speed straight race $204.89
Location: 9 Prev | Next Part: 110173 *Qty: 1 Spacer $195.29
Location: 10 Prev | Next Part: 163752 *Qty: 1 1st speed gear -Valid from gearbox Nr. 397 Call
Location: 11 Prev | Next Part: 156428 *Qty: 1 2nd speed gear $1,402.19
Location: 12 Prev | Next Part: 136333 *Qty: 1 Reverse gear $376.38
Location: 13 Prev | Next Part: 109002 *Qty: 1 Roller cage $31.46
Location: 14 Prev | Next Part: 126234 *Qty: 1 Bearing axle side $536.01
Location: 15 Prev | Next Part: 153060 *Qty: 1 Front ring nut -Valid till gearbox Nr. 396 $40.00
Location: 15 Prev | Next Part: 163670 *Qty: 1 Front ring nut -Valid from gearbox Nr. 397 $64.68
Location: 15 Prev | Next Part: 163684 *Qty: 1 Front ring nut -Valid from gearbox Nr. 397 $21.15
Location: 16 Prev | Next Part: 105765 *Qty: 1 Bearing stop ring $40.17
Location: 17 Prev | Next Part: 159268 *Qty: 1 Rear ring nut $17.95
Location: 18 Prev | Next Part: 104731 *Qty: 2 Washer $2.98
Location: 19 Prev | Next Part: 155694 *Qty: 1 Front bearing $132.55
Location: 20 Prev | Next Part: 100703 *Qty: 2 Spacer $24.89
Location: 21 Prev | Next Part: 104734 *Qty: 2 Roller cage $6.12
Location: 22 Prev | Next Part: 103035 *Qty: 1 Screw $0.90
Location: 23 Prev | Next Part: 10903221 *Qty: 1 Screw $0.90
Location: 24 Prev | Next Part: 134041 *Qty: 1 Nut $1.05
Location: 25 Prev | Next Part: 127494 *Qty: 1 Washer $0.90
Location: 26 Prev | Next Part: 152207 *Qty: 1 Syncronize body $297.90
Location: 27 Prev | Next Part: 159269 *Qty: 1 Ring nut $16.88
Location: 28 Prev | Next Part: 152209 *Qty: 2 Synchromesh ring $287.81
Location: 29 Prev | Next Part: 152195 *Qty: 3 Synchronizer insert $0.90
Location: 30 Prev | Next Part: 152206 *Qty: 1 Synchronizer sleeve $135.88
Location: 31 Prev | Next Part: 109725 *Qty: 1 Paralell pin $21.93
Location: 32 Prev | Next Part: 107525 *Qty: 1 Roller cage $15.28
Location: 33 Prev | Next Part: 107524 *Qty: 1 Roller race $220.79
Location: 34 Prev | Next Part: 109724 *Qty: 1 Seal ring $1.39
Location: 35 Prev | Next Part: 10275550 *Qty: 1 Plug $1.28
Location: 36 Prev | Next Part: 152196 *Qty: 3 Spring $0.90
Location: 37 Prev | Next Part: 152197 *Qty: 3 Ball $3.68

* Quantity shown indicates the number of pieces used in the diagram.
