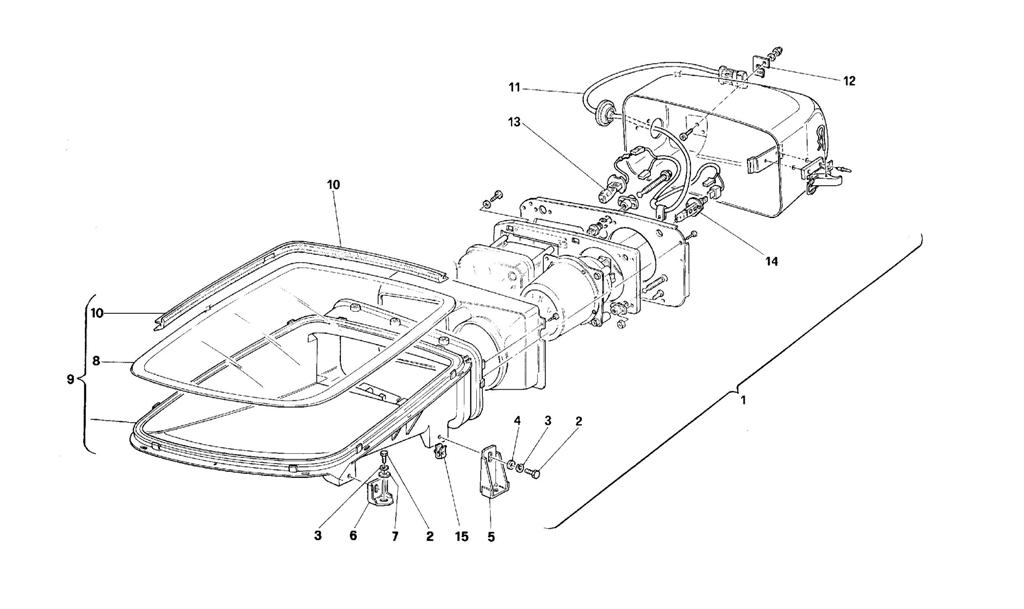

Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 163765 *Qty: 0 PROIETTORE ABB.ANABBAG.DESTRO CPL. $3,240.77
Location: - Prev | Next Part: 163766 *Qty: 0 PROIETTORE ABB-ANABBAG.SINISTRO CPL. $7,589.67
Location: 1 Prev | Next Part: 163793 *Qty: 1 R.H. main and dipped beams light unit Valid for RHD $2,916.65
Location: 1 Prev | Next Part: 163794 *Qty: 1 L.H. main and dipped beams light unit -Valid for RHD $2,916.65
Location: 1 Prev | Next Part: 161543 *Qty: 1 R.H. main and dipped beams light unit-Not for USA, CDN, J and RHD $3,970.24
Location: 1 Prev | Next Part: 161544 *Qty: 1 L.H. main and dipped beams light unit-Not for USA, CDN, J and RHD $2,916.65
Location: 1 Prev | Next Part: 161949 *Qty: 1 R.H. main and dipped beams light unit -Valid for USA and CDN $3,240.77
Location: 1 Prev | Next Part: 161950 *Qty: 1 L.H. main and dipped beams light unit -Valid for USA and CDN $3,240.77
Location: 2 Prev | Next Part: 10902287 *Qty: 16 Screw $0.90
Location: 3 Prev | Next Part: 106850 *Qty: 16 Washer Superseded
Location: 4 Prev | Next Part: 12643778 *Qty: 8 Washer $0.90
Location: 5 Prev | Next Part: 162943 *Qty: 4 Rear bracket $39.70
Location: 6 Prev | Next Part: 162944 *Qty: 4 Front bracket $37.98
Location: 7 Prev | Next Part: 12640677 *Qty: 8 Washer Call
Location: 8 Prev | Next Part: 165912 *Qty: 1 R.H. transparent -Not for USA and J Call
Location: 8 Prev | Next Part: 165913 *Qty: 1 L.H. transparent -Not for USA and J $1,948.79
Location: 8 Prev | Next Part: 178501 *Qty: 1 R.H. transparent -Valid for USA and J $298.13
Location: 8 Prev | Next Part: 178502 *Qty: 1 L.H. transparent -Valid for USA and J Call
Location: 9 Prev | Next Part: 171654 *Qty: 1 Complete R.H. front light case -Not for USA and J Call
Location: 9 Prev | Next Part: 171655 *Qty: 1 Complete L.H. front light case -Not for USA and J Call
Location: 9 Prev | Next Part: 171656 *Qty: 1 Complete R.H. front light case -Valid for USA and J Call
Location: 9 Prev | Next Part: 171657 *Qty: 1 Complete L.H. front light case -Valid for USA and J Call
Location: 10 Prev | Next Part: 165914 *Qty: 1 R.H. gasket $82.22
Location: 10 Prev | Next Part: 165915 *Qty: 1 L.H. gasket $70.87
Location: 11 Prev | Next Part: 164350 *Qty: 2 Headlight cable connection -Not for USA, CDN and J $50.57
Location: 11 Prev | Next Part: 164450 *Qty: 2 Headlight cable connection -Not for USA, CDN and J $63.81
Location: 12 Prev | Next Part: 155751 *Qty: 2 Cable retaining clip $4.87
Location: 13 Prev | Next Part: 14151095 *Qty: 2 Lamp -Valid for USA- Call
Location: 13 Prev | Next Part: 14151590 *Qty: 2 Lamp -Not for USA- $14.57
Location: 14 Prev | Next Part: 14151095 *Qty: 2 Lamp Call
Location: 15 Prev | Next Part: 165911 *Qty: 8 Spring $9.47

* Quantity shown indicates the number of pieces used in the diagram.
