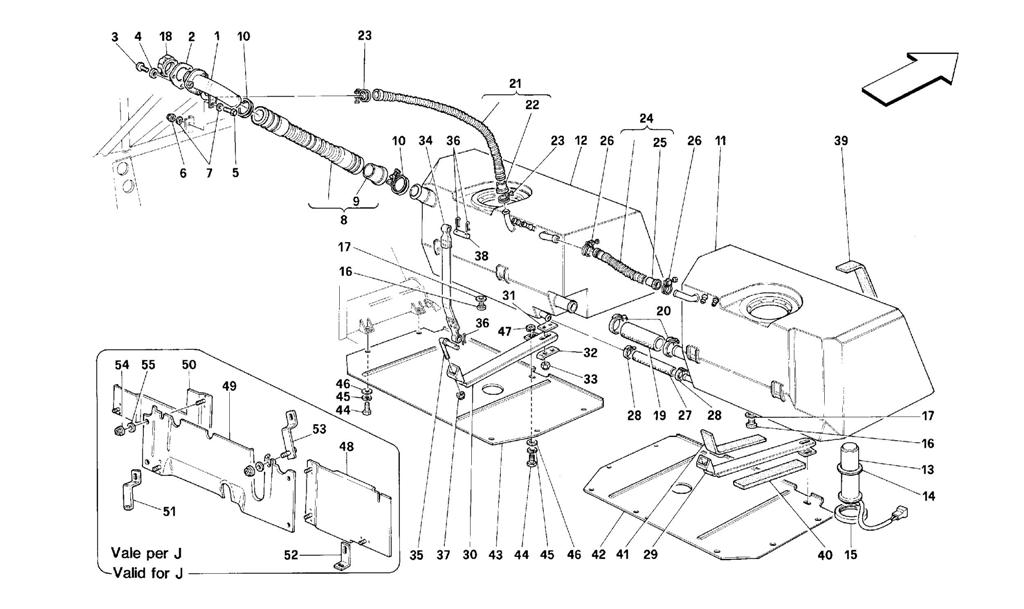

FUEL TANKS

Go to Split View

FUEL TANKS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 151611 *Qty: 1 Fill tube -Valid for SA and ZA $357.68
Location: 1 Prev | Next Part: 146946 *Qty: 1 Fill tube -Not for SA and ZA $240.64
Location: 2 Prev | Next Part: 123897 *Qty: 1 Gasket $38.31
Location: 3 Prev | Next Part: 13276470 *Qty: 3 Screw $0.90
Location: 4 Prev | Next Part: 12601274 *Qty: 3 Washer $0.90
Location: 5 Prev | Next Part: 10902324 *Qty: 1 Screw Superseded
Location: 6 Prev | Next Part: 15896214 *Qty: 1 Nut Unavailable
Location: 7 Prev | Next Part: 12646601 *Qty: 2 Washer $0.90
Location: 8 Prev | Next Part: 146943 *Qty: 1 Tube $96.56
Location: 9 Prev | Next Part: 141033 *Qty: 2 Gasket $20.43
Location: 10 Prev | Next Part: 165398 *Qty: 2 Clamp $1.36
Location: 11 Prev | Next Part: 146967 *Qty: 1 R.H. fuel tank $1,714.41
Location: 12 Prev | Next Part: 148095 *Qty: 1 L.H. fuel tank $1,905.61
Location: 13 Prev | Next Part: 144849 *Qty: 1 Gauge Unavailable
Location: 14 Prev | Next Part: 154802 *Qty: 1 Gasket $27.94
Location: 15 Prev | Next Part: 121435 *Qty: 1 Ring nut $132.79
Location: 16 Prev | Next Part: 148045 *Qty: 2 Cap $19.59
Location: 17 Prev | Next Part: 123622 *Qty: 2 Gasket $1.67
Location: 18 Prev | Next Part: 180320 *Qty: 1 Cap $826.24
Location: 19 Prev | Next Part: 154023 *Qty: 1 Tube $39.26
Location: 20 Prev | Next Part: 12173890 *Qty: 2 Clamp $2.36
Location: 21 Prev | Next Part: 147244 *Qty: 1 Tube Unavailable
Location: 22 Prev | Next Part: 142106 *Qty: 2 Gasket $7.47
Location: 23 Prev | Next Part: 164015 *Qty: 2 Clamp -Valid after stock exhaustion of 12181290 Superseded
Location: 24 Prev | Next Part: 147246 *Qty: 1 Tube Unavailable
Location: 25 Prev | Next Part: 142106 *Qty: 2 Gasket $7.47
Location: 26 Prev | Next Part: 164015 *Qty: 2 Clamp -Valid after stock exhaustion of 12181290 Superseded
Location: 27 Prev | Next Part: 117873 *Qty: 1 Tube Unavailable
Location: 28 Prev | Next Part: 13000390 *Qty: 2 Clamp $0.90
Location: 29 Prev | Next Part: 147946 *Qty: 2 R.H. bracket $61.12
Location: 30 Prev | Next Part: 147947 *Qty: 2 L.H. bracket $60.32
Location: 31 Prev | Next Part: 147948 *Qty: 4 Spacer $1.74
Location: 32 Prev | Next Part: 115734 *Qty: 4 Plate $2.54
Location: 33 Prev | Next Part: 15896214 *Qty: 8 Nut Unavailable
Location: 34 Prev | Next Part: 122797 *Qty: 4 Strap fuel tank $25.69
Location: 35 Prev | Next Part: 127529 *Qty: 4 Tie rod $101.70
Location: 36 Prev | Next Part: 10796440 *Qty: 12 Split pin $0.90
Location: 37 Prev | Next Part: 16104121 *Qty: 4 Nut Superseded
Location: 38 Prev | Next Part: 103447 *Qty: 4 Pin $2.86
Location: 39 Prev | Next Part: 125036 *Qty: 9 Spacer Unavailable
Location: 40 Prev | Next Part: 125037 *Qty: 4 Spacer $2.54
Location: 41 Prev | Next Part: 125035 *Qty: 4 Spacer Unavailable
Location: 42 Prev | Next Part: 150381 *Qty: 1 R.H. panel -Valid for RHD- $134.04
Location: 42 Prev | Next Part: 146974 *Qty: 1 R.H. panel -Not for RHD- $97.65
Location: 43 Prev | Next Part: 150382 *Qty: 1 L.H. panel -Valid for RHD- $134.04
Location: 43 Prev | Next Part: 146975 *Qty: 1 L.H. panel -Not for RHD- $97.65
Location: 44 Prev | Next Part: 10902111 *Qty: 18 Screw Superseded
Location: 45 Prev | Next Part: 127494 *Qty: 18 Washer $0.90
Location: 46 Prev | Next Part: 12643724 *Qty: 18 Washer Superseded
Location: 47 Prev | Next Part: 60758600 *Qty: 4 Gaged nut $0.90
Location: 48 Prev | Next Part: 153150 *Qty: 1 R.H. shield -Valid for J- $244.92
Location: 49 Prev | Next Part: 153151 *Qty: 1 Central shield -Valid for J- $679.57
Location: 50 Prev | Next Part: 153152 *Qty: 1 L.H. shield -Valid for J- $1,021.00
Location: 51 Prev | Next Part: 153155 *Qty: 3 Lower bracket -Valid for J- $11.99
Location: 52 Prev | Next Part: 153156 *Qty: 1 R.H. lower bracket -Valid for J $14.17
Location: 53 Prev | Next Part: 153154 *Qty: 3 Upper bracket -Valid for J- $11.99
Location: 54 Prev | Next Part: 15896214 *Qty: 11 Nut -Valid for J- Unavailable
Location: 55 Prev | Next Part: 12644424 *Qty: 11 Washer -Valid for J- $0.90

* Quantity shown indicates the number of pieces used in the diagram.
