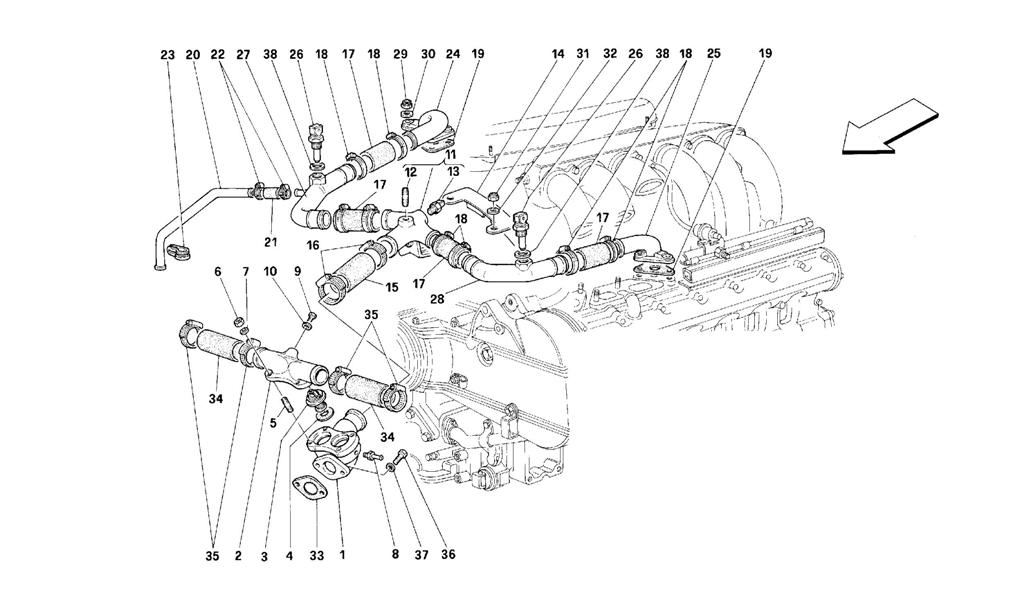

ENGINE COOLING

Location Part # Quantity* Description Price Add To Cart
1 124145 1 Thermostat body $390.45
2 124144 1 Thermostat body cover $255.03
3 165473 2 Thermostat $223.87
4 105192 2 Gasket $19.85
5 11500024 4 Stud $3.29
6 15896214 4 Nut Unavailable
7 12601274 4 Washer $0.90
8 112030 1 Connection for breather $11.31
9 130282 1 Connection for drain Superseded
10 10297760 1 Gasket $0.90
11 145213 1 Manifold, assy $395.26
12 11499921 1 Stud Superseded
13 148677 1 Thermistor Superseded
14 148535 1 Protection $18.57
15 148160 1 Rubber pipe $180.69
16 13000690 2 Clamp Unavailable
17 121166 4 Sleeve $22.03
18 12173890 8 Clamp Unavailable
19 134952 2 Gasket $6.50
20 152875 1 Water delivery pipe Unavailable
21 124961 1 Rubber pipe $41.01
22 13000190 2 Clamp $0.90
23 145661 1 Bracket $4.73
24 150908 1 R.H. union $261.06
25 150909 1 L.H. union $263.15
26 125769 2 Water temperature sensor $64.74
27 150910 1 R.H. pipe $150.04
28 150911 1 L.H. pipe $120.83
29 102741 6 Nut $0.90
30 12601274 6 Washer $0.90
31 102741 2 Nut $0.90
32 12601274 2 Washer $0.90
33 134963 1 Gasket $12.14
34 148649 2 Rubber pipe $29.48
35 13000690 4 Clamp Unavailable
36 10903421 2 Screw Unavailable
37 11193279 2 Washer Unavailable
38 10296160 2 Gasket $0.90

* Quantity shown indicates the number of pieces used in the diagram.
