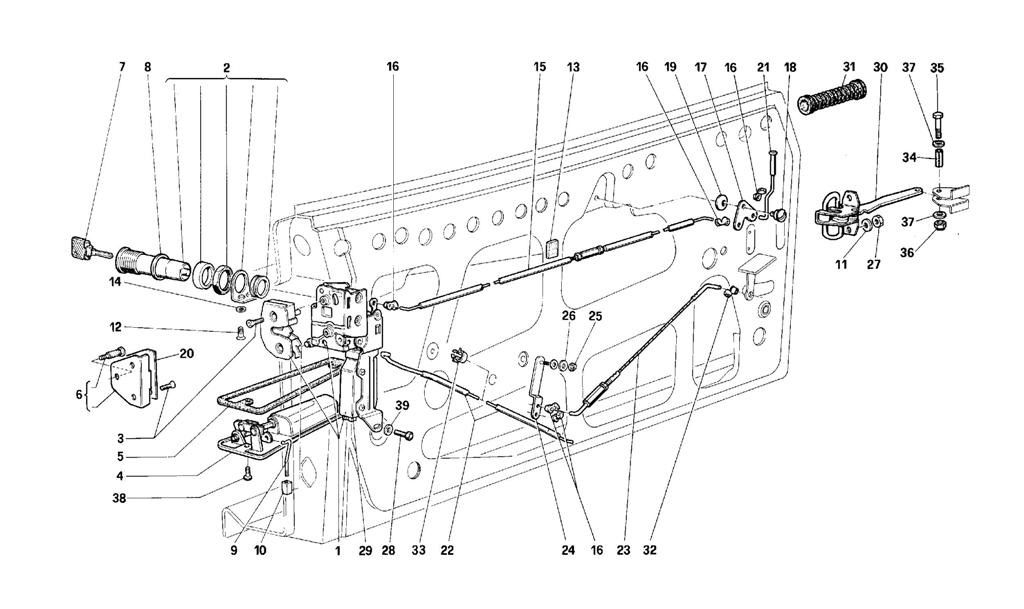

DOOR - LOCKING DEVICE

Go to Split View

DOOR - LOCKING DEVICE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 164282 *Qty: 1 Lock set with keys -Not for USA, CDN $1,978.69
Location: - Prev | Next Part: 164283 *Qty: 1 Lock set with keys -Valid for USA, CDN- $1,547.83
Location: 1 Prev | Next Part: 63094900 *Qty: 1 Lock for L.H. door complete $742.66
Location: 1 Prev | Next Part: 63094800 *Qty: 1 Lock for R.H. door complete $739.88
Location: 3 Prev | Next Part: 62764600 *Qty: 8 Screw $0.97
Location: 4 Prev | Next Part: 61506600 *Qty: 1 Outer handle for R.H. door $932.20
Location: 4 Prev | Next Part: 61506700 *Qty: 1 Outer handle for L.H. door $932.20
Location: 5 Prev | Next Part: 61506800 *Qty: 1 Gasket for R.H. handle $3.59
Location: 5 Prev | Next Part: 61506900 *Qty: 1 Gasket for L.H. handle $3.59
Location: 6 Prev | Next Part: 61506500 *Qty: 2 Lock striker complete $69.95
Location: 7 Prev | Next Part: 95401152 *Qty: 0 Blank key Unavailable
Location: 8 Prev | Next Part: 61507200 *Qty: 2 Lock gasket Unavailable
Location: 9 Prev | Next Part: 61507300 *Qty: 2 Rod $6.59
Location: 10 Prev | Next Part: 61507400 *Qty: 2 Sleeve Unavailable
Location: 11 Prev | Next Part: 12624101 *Qty: 4 Washer Unavailable
Location: 12 Prev | Next Part: 13271811 *Qty: 4 Screw Unavailable
Location: 13 Prev | Next Part: 62782800 *Qty: 1 Sponge Unavailable
Location: 14 Prev | Next Part: 10615274 *Qty: 4 Washer Unavailable
Location: 15 Prev | Next Part: 61507600 *Qty: 2 Rod $25.42
Location: 16 Prev | Next Part: 14578283 *Qty: 10 Clip Unavailable
Location: 17 Prev | Next Part: 61507700 *Qty: 2 Lever $1.04
Location: 18 Prev | Next Part: 62764500 *Qty: 2 Special screw $3.69
Location: 19 Prev | Next Part: 12541874 *Qty: 2 Washer $1.78
Location: 20 Prev | Next Part: 61507800 *Qty: 2 Striker protection $8.27
Location: 21 Prev | Next Part: 63402500 *Qty: 2 Security rod for door $57.65
Location: 22 Prev | Next Part: 63101600 *Qty: 1 L.H. rod $35.17
Location: 22 Prev | Next Part: 63094700 *Qty: 1 R.H. rod $42.91
Location: 23 Prev | Next Part: 63093500 *Qty: 2 Rod $35.89
Location: 24 Prev | Next Part: 61508100 *Qty: 2 Lever $9.04
Location: 25 Prev | Next Part: 14084211 *Qty: 2 Nut Unavailable
Location: 26 Prev | Next Part: 12643724 *Qty: 2 Washer Superseded
Location: 27 Prev | Next Part: 169180 *Qty: 4 Nut Unavailable
Location: 28 Prev | Next Part: 10977821 *Qty: 2 Screw Unavailable
Location: 29 Prev | Next Part: 150040 *Qty: 2 Locking device $75.84
Location: 30 Prev | Next Part: 61508500 *Qty: 2 Stop tie-rod for door $259.96
Location: 31 Prev | Next Part: 148654 *Qty: 2 Belows for electric cables $18.96
Location: 32 Prev | Next Part: 62773900 *Qty: 2 Spring Superseded
Location: 33 Prev | Next Part: 14569680 *Qty: 2 Clip Unavailable
Location: 34 Prev | Next Part: 65859300 *Qty: 2 Rod pin $13.36
Location: 35 Prev | Next Part: 15210480 *Qty: 2 Screw Unavailable
Location: 36 Prev | Next Part: 62790300 *Qty: 2 Nut $0.90
Location: 37 Prev | Next Part: 63677900 *Qty: 4 Washer Unavailable
Location: 38 Prev | Next Part: 13312970 *Qty: 2 Screw Unavailable
Location: 39 Prev | Next Part: 13577701 *Qty: 2 Washer Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
