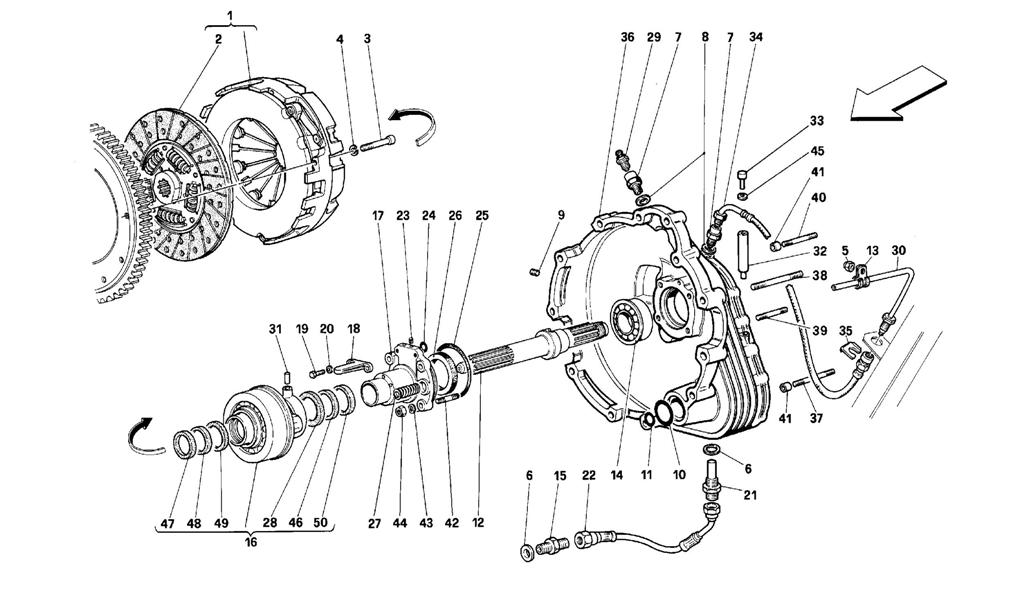

CLUTCH CONTROLS

Location Part # Quantity* Description Price Add To Cart
- 153232 1 Clutch housing complete $2,592.92
1 194775 1 Clutch complete $3,400.64
2 194776 1 Clutch disc $1,429.10
3 14305934 9 Screw $1.97
4 10569279 9 Washer Unavailable
5 102741 3 Nut $0.90
6 153722 2 Gasket $11.14
7 148604 2 Union Unavailable
8 10257060 2 Gasket $0.90
9 14326150 1 Plug Unavailable
10 104756 1 Sealing ring $13.99
11 104747 1 Sealing ring $2.29
12 151945 1 Clutch shaft $758.53
13 10440990 7 Bracket $1.97
14 155694 1 Bearing $160.76
15 153905 1 Union $80.14
16 177201 1 Thrust bearing complete -Valid till stock exhaustion $1,276.85
16 CRB456/550 1 Thrust Bearing with Seals $756.00
17 154511 1 Bush supporting flange $1,162.00
18 151693 1 Plate $60.00
19 10977521 2 Screw $0.90
20 127493 2 Washer $0.90
21 153708 1 Union $105.91
22 153759 1 Oil connection pipe Unavailable
23 65928500 2 Plug $31.95
24 121813 2 Sealing ring $0.90
25 121814 1 Sealing ring $15.51
26 138680 1 Sealing ring $50.02
27 155207 2 Spring $5.00
28 154508 1 Sealing ring $46.57
29 121699 1 Bleeder screw $59.36
30 147973 1 Pipe from 2 way union to flexible $99.29
31 13904970 1 Pin Unavailable
32 109789 1 Extension for breather $59.13
33 13414691 1 Breather $18.25
34 124840 1 Flexible hose for clutch hydraulic control Unavailable
35 110810 1 Pipe securing plate Unavailable
36 153701 1 Clutch housing -Not as spare parts -With assembly 153232 Unavailable
37 13544321 1 Stud Superseded
38 13544524 3 Stud $56.47
39 13544024 4 Stud $0.95
40 13544224 2 Stud $10.39
41 102704 2 Dowel $4.24
42 13516624 4 Stud Unavailable
43 127496 4 Washer $0.90
44 133989 4 Nut $0.90
45 13415400 1 Oil deflector disc Unavailable
46 154507 1 Sealing ring $4.45
47 154550 1 Sealing ring $28.91
48 154504 1 Sealing ring $7.90
49 154505 1 Sealing ring $14.84
50 154551 1 Sealing ring $31.04

* Quantity shown indicates the number of pieces used in the diagram.
