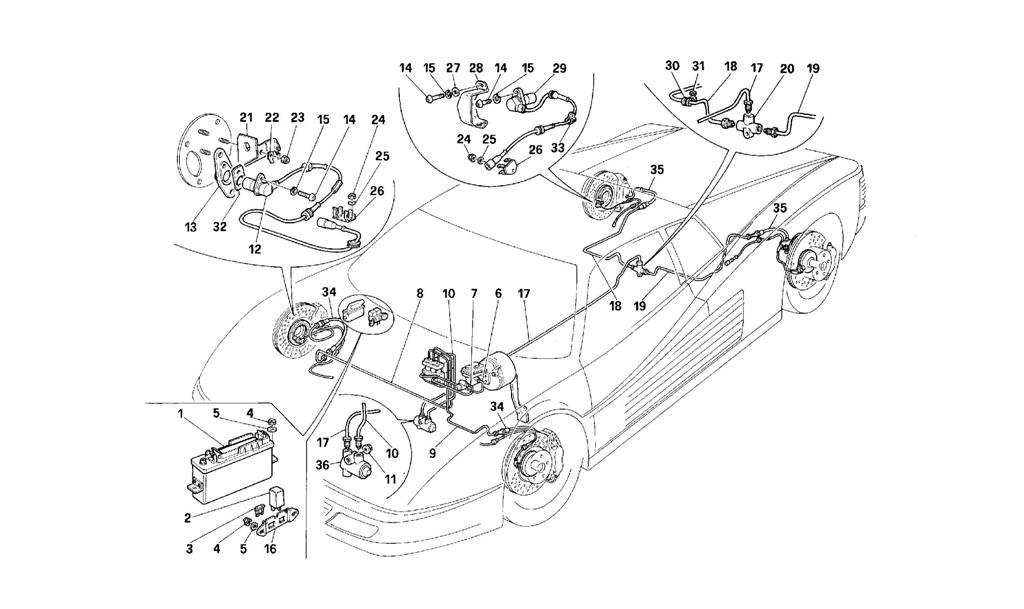

BRAKING SYSTEM

Go to Split View

BRAKING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 149054 *Qty: 1 Electronic control unit $3,540.28
Location: 2 Prev | Next Part: 149053 *Qty: 1 Protection relay $139.85
Location: 3 Prev | Next Part: 125241 *Qty: 1 Valve $0.90
Location: 4 Prev | Next Part: 102948 *Qty: 1 Nut $0.90
Location: 5 Prev | Next Part: 10519424 *Qty: 1 Washer Call
Location: 6 Prev | Next Part: 150359 *Qty: 1 Pipe from pump to front circuit control unit -Valid for RHD $15.62
Location: 6 Prev | Next Part: 147966 *Qty: 1 Pipe from pump to front circuit control unit -Not for RHD $134.04
Location: 7 Prev | Next Part: 150363 *Qty: 1 Pipe from pump to rear circuit control unit -Valid for RHD $15.93
Location: 7 Prev | Next Part: 147968 *Qty: 1 Pipe from pump to rear circuit control unit -Not for RHD $134.04
Location: 8 Prev | Next Part: 155923 *Qty: 1 Brake pipe from control unit to R.H. front flexible cable -Not for RHD $17.19
Location: 8 Prev | Next Part: 155926 *Qty: 1 Brake pipe from control unit to R.H. front flexible cable -Valid for RHD $22.69
Location: 9 Prev | Next Part: 155924 *Qty: 1 Brake pipe from control unit to L.H. front flexible cable -Not for RHD $12.46
Location: 9 Prev | Next Part: 155927 *Qty: 1 Brake pipe from control unit to L.H. front flexible cable -Valid for RHD $12.46
Location: 10 Prev | Next Part: 155925 *Qty: 1 Brake pipe from control unit to brake pressure regulator -Not for RHD $15.31
Location: 10 Prev | Next Part: 155928 *Qty: 1 Brake pipe from control unit to brake pressure regulator -Valid for RHD $13.39
Location: 11 Prev | Next Part: 14058511 *Qty: 1 Nut $0.90
Location: 12 Prev | Next Part: 159266 *Qty: 2 Front sensor $126.17
Location: 13 Prev | Next Part: 151330 *Qty: 2 Sensor support $179.52
Location: 14 Prev | Next Part: 60909500 *Qty: 6 Screw $2.39
Location: 15 Prev | Next Part: 127494 *Qty: 6 Washer $0.90
Location: 16 Prev | Next Part: 137669 *Qty: 1 Bracket $6.71
Location: 17 Prev | Next Part: 152644 *Qty: 1 Brake pupe from brake pressure regulator to 3-way union -Valid for RHD $10.25
Location: 17 Prev | Next Part: 147951 *Qty: 1 Brake pupe from brake pressure regulator to 3-way union -Not for RHD $15.43
Location: 18 Prev | Next Part: 147980 *Qty: 1 Brake pipe from 3-way union to R.H. rear flexible cable Call
Location: 19 Prev | Next Part: 147981 *Qty: 1 Brake pipe from 3-way union to L.H. rear flexible cable $17.01
Location: 20 Prev | Next Part: 101394 *Qty: 1 3-way union Call
Location: 21 Prev | Next Part: 151179 *Qty: 1 R.H. support $65.69
Location: 21 Prev | Next Part: 151180 *Qty: 1 L.H. support $65.69
Location: 22 Prev | Next Part: 143405 *Qty: 2 Faston tang $0.90
Location: 23 Prev | Next Part: 169180 *Qty: 6 Nut $0.90
Location: 24 Prev | Next Part: 62790300 *Qty: 4 Nut $0.90
Location: 25 Prev | Next Part: 10519281 *Qty: 4 Washer Call
Location: 26 Prev | Next Part: 128292 *Qty: 4 Spring $2.76
Location: 27 Prev | Next Part: 14496424 *Qty: 4 Washer Superseded
Location: 28 Prev | Next Part: 152422 *Qty: 2 Rear sensor protection $57.98
Location: 29 Prev | Next Part: 159267 *Qty: 2 Rear sensor $349.21
Location: 30 Prev | Next Part: 10440890 *Qty: 2 Bracket $0.90
Location: 31 Prev | Next Part: 102741 *Qty: 2 Nut $0.90
Location: 32 Prev | Next Part: 154747 *Qty: 4 Adjuster spacer -Possible mounting $1.49
Location: 33 Prev | Next Part: 10440990 *Qty: 2 Bracket $1.66
Location: 34 Prev | Next Part: 137313 *Qty: 2 R.H. and L.H. front flexible pipe $113.92
Location: 35 Prev | Next Part: 116373 *Qty: 2 R.H. and L.H. rear flexible pipe Superseded
Location: 36 Prev | Next Part: 146949 *Qty: 1 Brake pressure regulator $77.66

* Quantity shown indicates the number of pieces used in the diagram.
