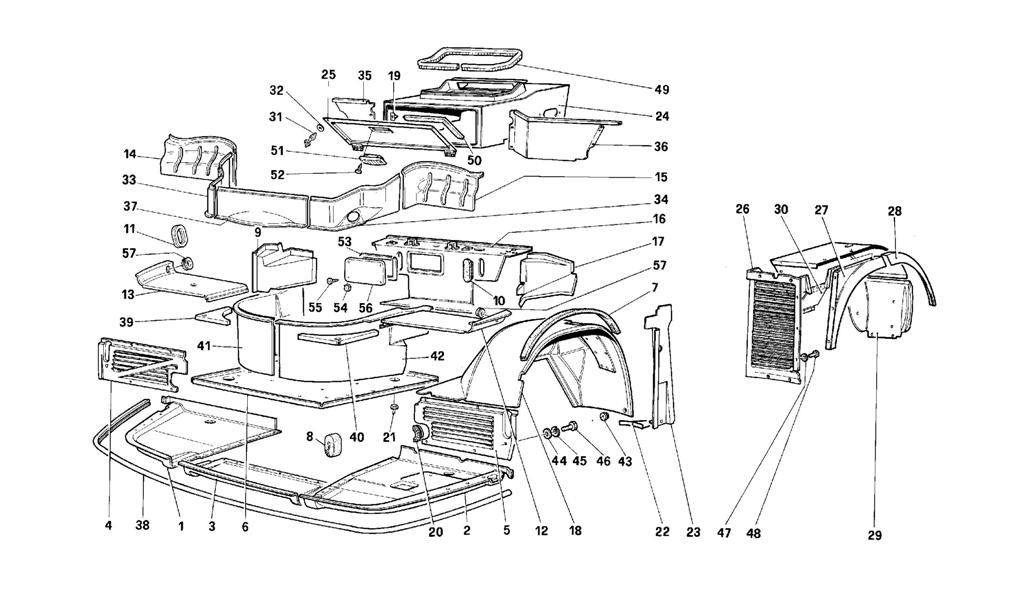

BODY - INTERNAL COMPONENTS

BODY - INTERNAL COMPONENTS

Location Part # Quantity* Description Price Add To Cart
1 63084600 1 R.H. side guard for underbody $634.31
2 63084500 1 L.H. side guard for underbody Unavailable
3 63084200 1 R.H. front central guard for underbody Unavailable
4 63926700 1 R.H. battery inspection door $214.71
5 63926800 1 L.H. inspection door Unavailable
6 63085100 1 Trunk bottom plate Unavailable
7 62926100 2 Wheelhouse gasket Unavailable
8 63393900 1 Sealant Unavailable
9 61479400 1 R.H. angle piece for wheel house $498.57
9 61479500 1 L.H. angle piece for wheel house $498.57
10 62845000 2 Plug $5.97
11 163164 1 Cable grommet $15.14
12 64677200 1 L.H. upper cover $449.60
13 64677300 1 R.H. upper cover $449.60
14 64677400 1 R.H. rear panel $337.91
15 64677500 1 L.H. rear panel $337.91
16 63117900 1 Rear luggage compartment panel -Not for RHD $382.47
16 63419800 1 Rear luggage compartment panel -Valid for RHD $376.08
17 61480400 1 L.H. front panel $133.17
17 63461700 1 R.H. front panel -Not for RHD $262.93
17 63462000 1 R.H. front panel -Valid for RHD $266.99
18 63090000 1 R.H. front wheelhouse assembly $803.25
18 63090100 1 L.H. front wheelhouse assembly $988.41
19 61529200 4 Clip $5.81
20 62987700 2 Gasket $5.46
21 60731300 4 Plug $4.18
22 61481200 1 R.H. cover $14.03
22 61481300 1 L.H. cover $15.77
23 61481500 1 L.H. door inner pillar $54.81
23 61481400 1 R.H. door inner pillar $54.81
25 61481700 1 Electric board cover -Valid for RHD $56.66
25 63952700 1 Electric board cover -Not for RHD $71.44
26 63090400 1 Front section of R.H. rear wheelhouse Unavailable
26 63090500 1 Front section of L.H. rear wheelhouse Unavailable
27 63090600 1 Front side section of R.H. rear wheelhouse $84.65
27 63090700 1 Front side section of L.H. rear wheelhouse $80.61
28 61482200 1 Rear side section of R.H. rear wheelhouse $76.96
28 61482300 1 Rear side section of L.H. rear wheelhouse $76.96
29 63093600 1 Rear section of R.H. rear wheelhouse $151.28
29 63093700 1 Rear section of L.H. rear wheelhouse $145.35
30 63090200 1 Upper section of R.H. rear wheelhouse $198.59
30 63090300 1 Upper section of L.H. rear wheelhouse $198.59
31 61530300 4 Pin Unavailable
32 61529400 4 Gasket Unavailable
33 64677600 1 R.H. front panel $402.69
34 64677700 1 L.H. front panel $402.69
35 61546100 1 R.H. protection -Not for RHD- $82.82
35 63469190 1 R.H. protection -Valid for RHD- $84.63
36 63414400 1 L.H. protection -Not for RHD- $230.10
36 61546400 1 L.H. protection -Valid for RHD- $81.02
37 64677800 1 Central fixed panel $293.00
38 63087100 1 Gasket Unavailable
39 63084300 1 R.H. upper seal $37.33
40 63084400 1 L.H. upper seal $53.94
41 63084900 1 R.H. vertical shield $627.49
42 63085000 1 L.H. vertical shield Unavailable
43 14506787 2 Plug Unavailable
44 12643778 10 Washer Unavailable
45 106850 10 Washer Superseded
46 10902387 10 Screw $1.02
47 12643770 18 Washer $0.90
48 10902024 18 Screw $0.90
49 63449700 1 Gasket $9.97
50 62765800 1 Silent-block $1.62
51 61647200 1 Lamp $100.22
52 15908678 2 Screw Unavailable
53 62781900 1 Silent-block $2.78
54 60597000 4 Clip Unavailable
55 15915977 4 Screw Unavailable
56 63113800 1 Front inspection cover $18.76
57 10396780 2 Cable grommet $4.81

* Quantity shown indicates the number of pieces used in the diagram.
