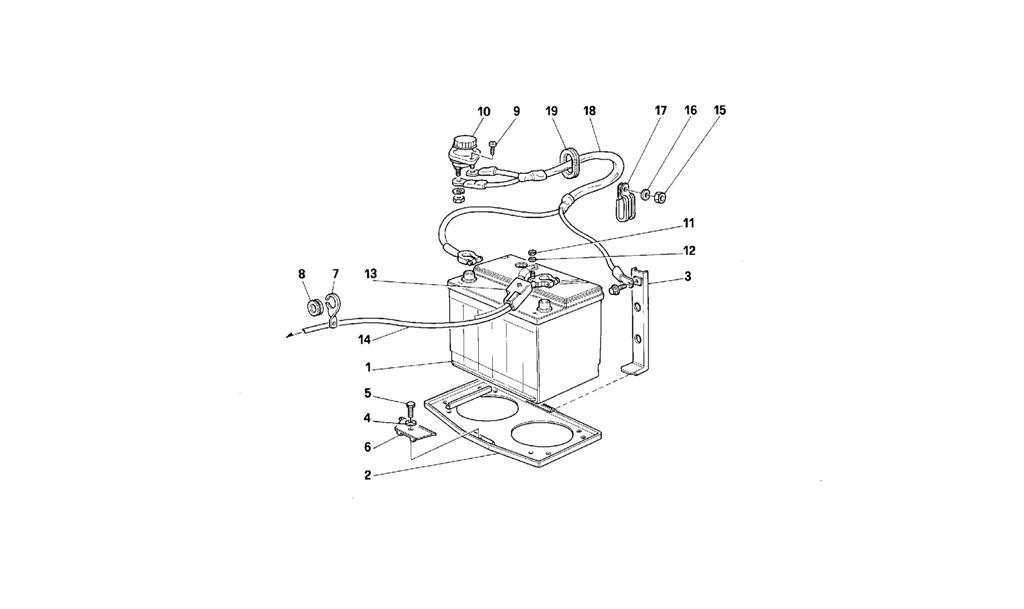

BATTERY

Go to Split View

BATTERY

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 157496 *Qty: 1 Battery Call
Location: 2 Prev | Next Part: 125333 *Qty: 1 Plate support $225.23
Location: 3 Prev | Next Part: 64675700 *Qty: 1 Battery plate support $230.73
Location: 4 Prev | Next Part: 127496 *Qty: 1 Washer $0.90
Location: 5 Prev | Next Part: 16043534 *Qty: 1 Screw $0.90
Location: 6 Prev | Next Part: 100839 *Qty: 1 Bracket Call
Location: 7 Prev | Next Part: 105900 *Qty: 1 Cable support bracket $10.73
Location: 8 Prev | Next Part: 10396580 *Qty: 1 Cable grommet $7.17
Location: 9 Prev | Next Part: 15688178 *Qty: 2 Screw $1.96
Location: 10 Prev | Next Part: 139607 *Qty: 1 Battery disconnecting switch Call
Location: 11 Prev | Next Part: 147985 *Qty: 1 Nut $0.90
Location: 12 Prev | Next Part: 10519624 *Qty: 1 Washer $0.90
Location: 13 Prev | Next Part: 144727 *Qty: 1 Protection cap for positive terminal $28.06
Location: 14 Prev | Next Part: 164416 *Qty: 1 Cable from battery to connection box $281.14
Location: 15 Prev | Next Part: 102948 *Qty: 1 Nut $0.90
Location: 16 Prev | Next Part: 12643724 *Qty: 1 Washer Superseded
Location: 17 Prev | Next Part: 61712500 *Qty: 1 Bracket $1.89
Location: 18 Prev | Next Part: 162911 *Qty: 1 Cables for disconnecting switch $113.87
Location: 19 Prev | Next Part: 163164 *Qty: 1 Cable grommet $11.20

* Quantity shown indicates the number of pieces used in the diagram.
