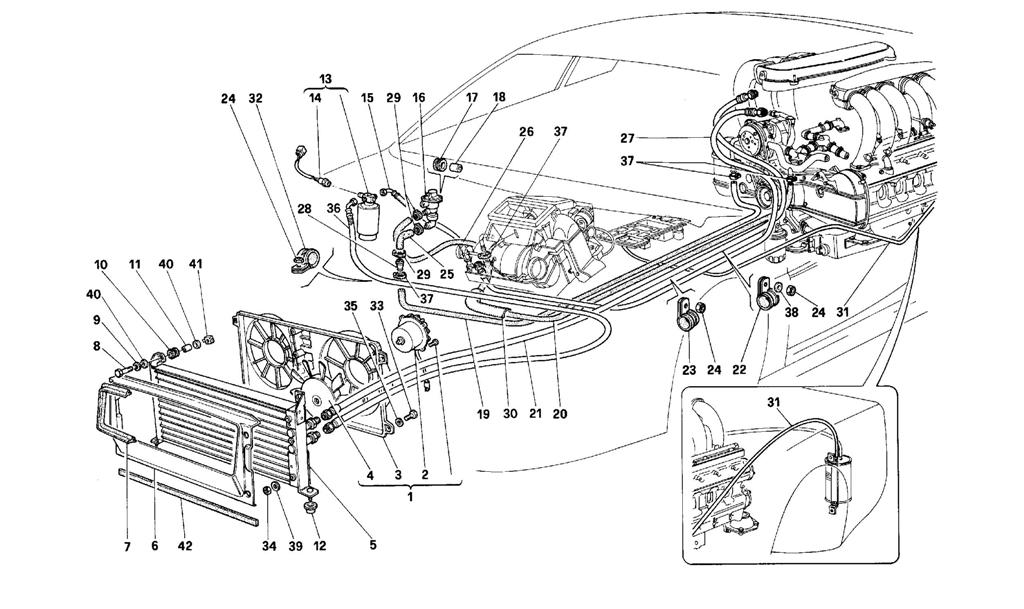

AIR CONDITIONING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63370600 *Qty: 1 Complete electro-fan $306.48
Location: 2 Prev | Next Part: 152409 *Qty: 2 Engine $166.54
Location: 3 Prev | Next Part: 63358800 *Qty: 1 Air conveyor $66.09
Location: 4 Prev | Next Part: 152412 *Qty: 2 Fan $37.20
Location: 5 Prev | Next Part: 63337600 *Qty: 1 A.C. condenser Unavailable
Location: 6 Prev | Next Part: 63028300 *Qty: 1 Air conveyor to condenser $446.78
Location: 7 Prev | Next Part: 63087700 *Qty: 1 Gasket $13.80
Location: 8 Prev | Next Part: 10902624 *Qty: 2 Screw Unavailable
Location: 9 Prev | Next Part: 127494 *Qty: 2 Washer $0.90
Location: 10 Prev | Next Part: 103549 *Qty: 2 Cable grommet $1.40
Location: 11 Prev | Next Part: 103550 *Qty: 2 Spacer $2.21
Location: 12 Prev | Next Part: 137624 *Qty: 2 Pad Unavailable
Location: 13 Prev | Next Part: 63934300 *Qty: 1 Dehydrator filter with pressostat - Not for RHD $168.06
Location: 13 Prev | Next Part: 64734000 *Qty: 1 Dehydrator filter with pressostat -Valid for RHD $175.41
Location: 14 Prev | Next Part: 64278900 *Qty: 1 Pressostat Superseded
Location: 15 Prev | Next Part: 164288 *Qty: 1 Pipe from filter to evaporator -Valid for RHD $147.24
Location: 15 Prev | Next Part: 161735 *Qty: 1 Pipe from filter to evaporator -Not for RHD $115.02
Location: 16 Prev | Next Part: 61079000 *Qty: 1 Electromagnetic valve Unavailable
Location: 17 Prev | Next Part: 103549 *Qty: 2 Cable grommet $1.40
Location: 18 Prev | Next Part: 103550 *Qty: 2 Spacer $2.21
Location: 19 Prev | Next Part: 124029 *Qty: 1 Pipe from electromagnetic valve to engine $126.29
Location: 20 Prev | Next Part: 124027 *Qty: 1 Pipe from engine to evaporator Unavailable
Location: 21 Prev | Next Part: 161831 *Qty: 1 Pipe from compressor to condenser $463.43
Location: 22 Prev | Next Part: 119463 *Qty: 1 Bracket $42.34
Location: 23 Prev | Next Part: 10441890 *Qty: 2 Bracket $0.90
Location: 24 Prev | Next Part: 102948 *Qty: 4 Nut Superseded
Location: 25 Prev | Next Part: 125003 *Qty: 1 Pipe from electromagnetic valve to reduction $24.86
Location: 26 Prev | Next Part: 61615000 *Qty: 1 Pipe from evaporator to electro-fan $95.20
Location: 27 Prev | Next Part: 154108 *Qty: 1 Pipe from evaporator tocompressor -Valid for RHD $213.70
Location: 27 Prev | Next Part: 161830 *Qty: 1 Pipe from evaporator to compressor -Not for RHD $245.73
Location: 28 Prev | Next Part: 124030 *Qty: 1 Reduction $14.74
Location: 29 Prev | Next Part: 13000490 *Qty: 4 Clamp Superseded
Location: 30 Prev | Next Part: 61275000 *Qty: 2 Pipes insulation $102.51
Location: 31 Prev | Next Part: 62954400 *Qty: 1 Pipe from vacuum tank to push-button panel $12.91
Location: 32 Prev | Next Part: 10441490 *Qty: 2 Bracket $0.90
Location: 33 Prev | Next Part: 10903821 *Qty: 4 Screw Unavailable
Location: 34 Prev | Next Part: 102948 *Qty: 4 Nut Superseded
Location: 35 Prev | Next Part: 14496421 *Qty: 4 Washer Unavailable
Location: 36 Prev | Next Part: 164289 *Qty: 1 Pipe from condenser to filter -Valid for RHD $130.50
Location: 36 Prev | Next Part: 161734 *Qty: 1 Pipe from condenser to filter -Not for RHD $92.61
Location: 37 Prev | Next Part: 13000390 *Qty: 2 Clamp $0.90
Location: 38 Prev | Next Part: 12643724 *Qty: 1 Washer Superseded
Location: 39 Prev | Next Part: 106744 *Qty: 4 Washer $10.67
Location: 40 Prev | Next Part: 12643724 *Qty: 4 Washer Superseded
Location: 41 Prev | Next Part: 60758600 *Qty: 2 Nut $0.90
Location: 42 Prev | Next Part: 62660300 *Qty: 1 Gasket $10.51

* Quantity shown indicates the number of pieces used in the diagram.
