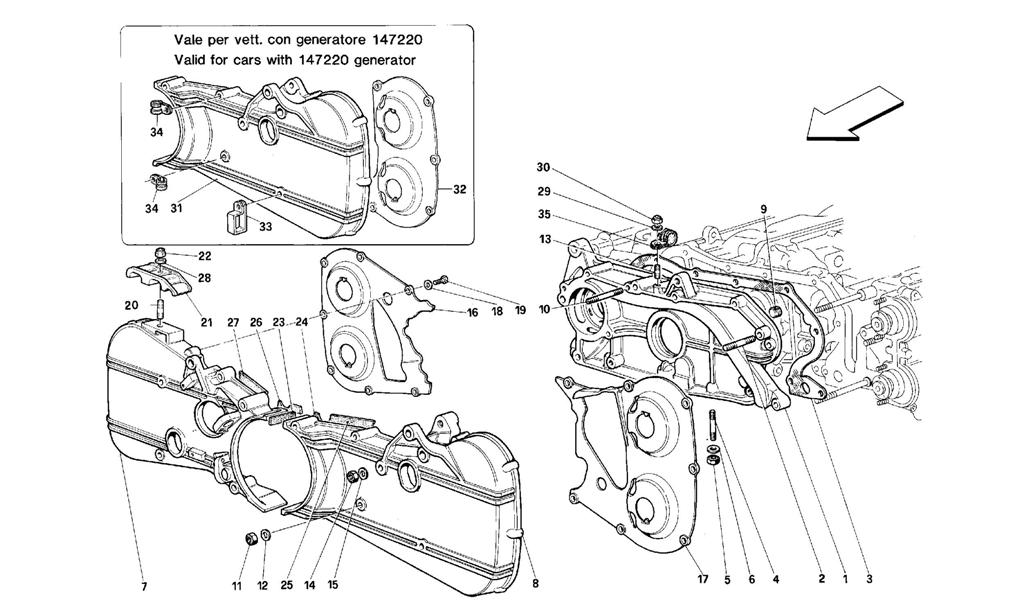

TIMING SYSTEM - COVERS

TIMING SYSTEM - COVERS

Location Part # Quantity* Description Price Add To Cart
1 143385 1 Front cover -Not as spare parts -With crankcase complete 137712 Unavailable
2 13450424 1 Stud $8.95
3 150197 1 Gasket $51.74
4 13449624 3 Stud $15.89
5 102742 3 Nut Unavailable
6 12601474 3 Washer Unavailable
7 147863 1 R.H. cover $766.99
8 152472 1 L.H. cover -Valid for cars with generator 154153 -See ref. 1 draw. 53 $1,056.19
9 127635 1 Plug $4.16
10 13544321 3 Stud Superseded
11 101139 3 Nut $0.90
12 12601374 3 Washer $0.90
13 11500024 1 Stud $3.29
14 102742 1 Nut Unavailable
15 12601474 1 Washer Unavailable
16 123705 1 R.H. belt protection plate $661.31
17 154689 1 L.H. belt protection plate -Valid for cars with generator 154153 -See ref. 1 draw. 53 $56.66
18 12601174 14 Washer -For cars with generator 147220 Q.ty 13 -See ref. 1 draw. 52 $0.90
19 10977724 14 Screw -For cars with generator 147220 Q.ty 13 -See ref. 1 draw. 52 $0.90
20 13541524 1 Stud Unavailable
21 148601 1 Cables support $32.42
22 102741 1 Nut $0.90
23 128029 1 Adhesive protection -Not as spare part $2.78
24 128030 1 Adhesive protection $8.57
25 128031 1 Adhesive protection $3.88
26 128032 1 Adhesive protection Unavailable
27 128033 1 Adhesive protection $3.19
28 12639701 1 Washer Unavailable
29 12601274 1 Washer $0.90
30 102741 1 Nut $0.90
31 147892 1 L.H. cover -Valid for cars with generator 147220 -See ref. 1 draw. 52 $864.41
32 123706 1 L.H. belt protection plate -Valid for cars with generator 147220 -See ref. 1 draw. 52 Unavailable
33 151605 1 Bracket -Valid for cars with generator 147220 -See ref. 1 draw. 52 $3.63
34 10450390 2 Bracket -Valid for cars with generator 147220 -See ref. 1 draw. 52 $2.72
35 10441890 1 Bracket -Valid for cars with generator 147220 -See ref. 1 draw. 52 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
