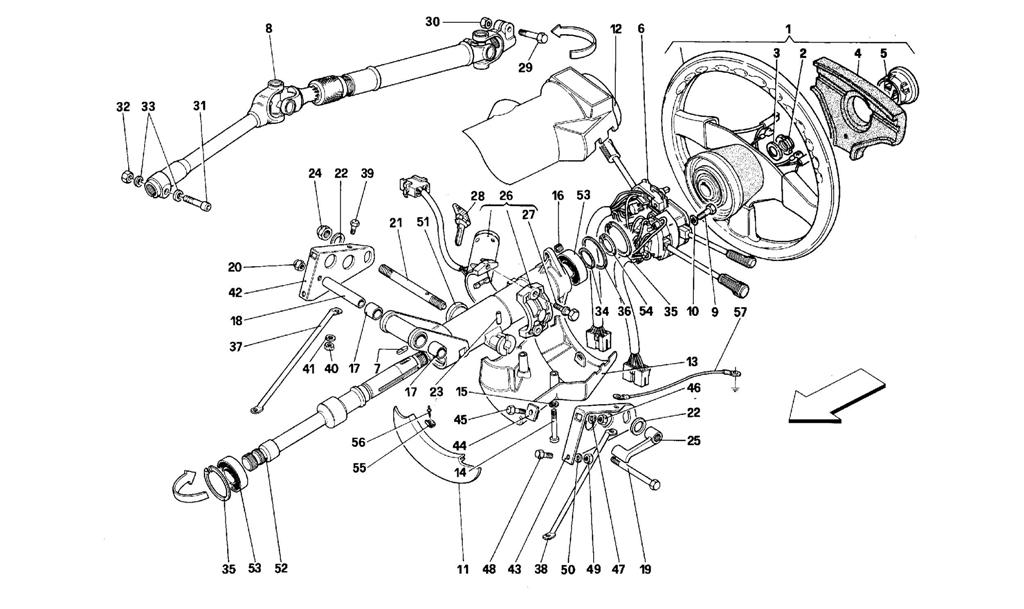

STEERING COLUMN

STEERING COLUMN

Location Part # Quantity* Description Price Add To Cart
1 148457 1 Steering wheel complete Unavailable
2 101648 1 Ring nut Unavailable
3 12601774 1 Washer Unavailable
4 138048 1 Steering wheel coating Unavailable
5 137819 1 Electric horn push-button $239.64
6 150540 1 Unhook-deviation assembly -Not for USA Unavailable
7 101106 1 Tongue $7.39
8 146374 1 Cardanic transmission $2,119.67
9 13274972 2 Screw $2.68
10 12601174 2 Washer $0.90
11 63093800 1 Steering column rubber protection $13.91
12 121580 1 Upper steering column cover $151.93
13 121581 1 Lower steering column cover Unavailable
14 13275217 2 Screw Unavailable
15 12601174 2 Washer $0.90
16 13525170 2 Heli-coil $0.90
17 121588 2 Bush $3.63
18 121589 1 Pipe $23.87
19 16045021 1 Screw Unavailable
20 101139 1 Nut $0.90
21 120988 1 Shaft $16.85
22 114865 2 Washer $1.95
23 14163870 1 Pin Unavailable
24 148020 1 Nut $5.28
25 131487 1 Lever Unavailable
26 61545300 1 Locks set with key -Not for USA, CDN, SA, J Unavailable
26 61545400 1 Locks set with key -Valid for USA, CDN, SA, J Unavailable
27 121611 2 Screw $1.32
28 95401152 0 Blank key Unavailable
29 150427 1 Screw $7.41
30 150428 1 Nut $1.77
31 125518 1 Screw $2.05
32 102948 1 Nut Superseded
33 12601274 2 Washer $0.90
34 134070 1 Washer thick. 1 mm $4.22
34 134071 1 Washer thick. 1,1 mm -Possible mounting $1.95
34 134072 1 Washer thick. 1,2 mm -Possible mounting $1.93
34 134073 1 Washer thick. 1,3 mm -Possible mounting $2.19
34 134074 1 Washer thick. 1,4 mm -Possible mounting $9.60
35 11060076 2 Seeger ring Unavailable
36 134065 1 Washer thick. 1 mm $2.27
36 134066 1 Washer thick. 1,1 mm -Possible mounting $1.28
36 134067 1 Washer thick. 1,2 mm -Possible mounting $1.93
36 134068 1 Washer thick. 1,3 mm -Possible mounting $1.77
36 134069 1 Washer thick. 1,4 mm -Possible mounting $2.50
37 123382 1 R.H. tie rod $52.66
38 123383 1 L.H. tie rod $431.50
39 10902111 4 Screw Superseded
40 15896214 4 Nut Unavailable
41 127494 4 Washer $0.90
42 120990 1 R.H. bracket $25.38
43 120991 1 L.H. bracket $25.38
44 124826 2 Plate $24.97
45 10902111 2 Screw Superseded
46 15896214 2 Nut Unavailable
47 127494 2 Washer $0.90
48 16043221 2 Screw Unavailable
49 16100821 2 Nut Unavailable
50 127496 2 Washer $0.90
51 136024 1 Steering column support $1,178.21
52 138710 1 Upper shaft $672.21
53 134061 2 Bearing $14.33
54 11066876 1 Seeger ring Unavailable
55 62770100 2 Spring $1.97
56 62772500 2 Rivet Unavailable
57 125694 1 Ground cable $1.56

* Quantity shown indicates the number of pieces used in the diagram.
