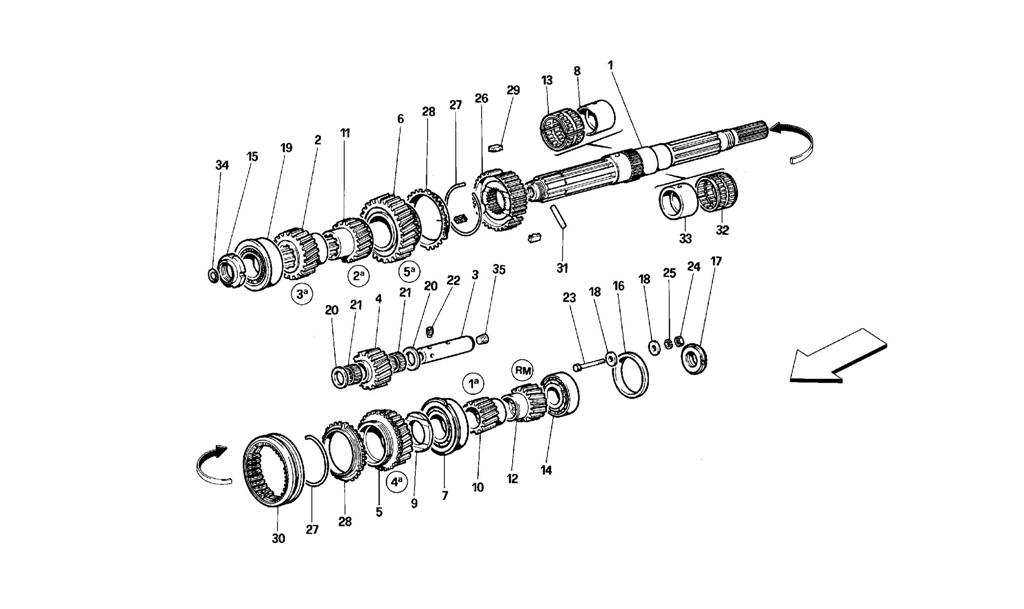

MAIN SHAFT GEARS

chevron-left
chevron-right
Go to Split View view-grid

MAIN SHAFT GEARS

Location Part # Quantity* Description Price Add To Cart
1 109716 1 Main shaft Unavailable
2 148249 1 3rh speed gear -Valid from transmission Nr. 928 - For USA from transmission Nr. 1135 $1,041.15
2 136330 1 3rh speed gear -Valid till transmission Nr. 927 - For USA till transmission Nr. 1134 $1,347.86
3 155475 1 Pin for reverse idle gear -Valid after stock exhaustion of 150887 $476.77
4 136340 1 Reverse idle gear $1,811.25
5 136344 1 4th speed gear $936.44
6 140209 1 5th speed gear $3,416.30
7 103030 1 Roller bearing $292.30
8 107499 1 5th speed straight race $333.75
9 110173 1 Spacer $339.70
10 140193 1 1st speed gear $2,152.49
11 140195 1 2nd speed gear Superseded
12 136333 1 Reverse gear $418.92
13 109002 1 Roller cage $40.58
14 126234 1 Bearing axle side $873.08
15 153060 1 Front ring nut $44.00
16 105765 1 Bearing stop ring $57.08
17 153067 1 Rear ring nut $44.00
18 104731 2 Washer $3.80
19 155694 1 Front bearing (thickness 28 mm) -Valid after stock exhaustion of 149774 $160.76
19 103042 1 Front bearing (thickness 27 mm) -Valid till transmission Nr. 927 - For USA till transmission N $442.22
20 100703 2 Spacer $30.43
21 104734 2 Roller cage $13.13
22 103035 1 Screw $1.60
23 10903221 1 Screw Unavailable
24 134041 1 Nut Unavailable
25 127494 1 Washer $0.90
26 106046 1 Syncronize body Unavailable
27 145244 2 Spring ring for insert $4.04
28 150628 2 Synchromesh ring Unavailable
29 126201 3 Synchronizer insert $181.97
30 131801 1 Synchronizer sleeve $710.07
31 109725 1 Paralell pin $38.18
32 107525 1 Roller cage $19.47
33 107524 1 Roller race $313.66
34 109724 1 Seal ring $1.81
35 10275550 1 Plug $1.28

* Quantity shown indicates the number of pieces used in the diagram.
